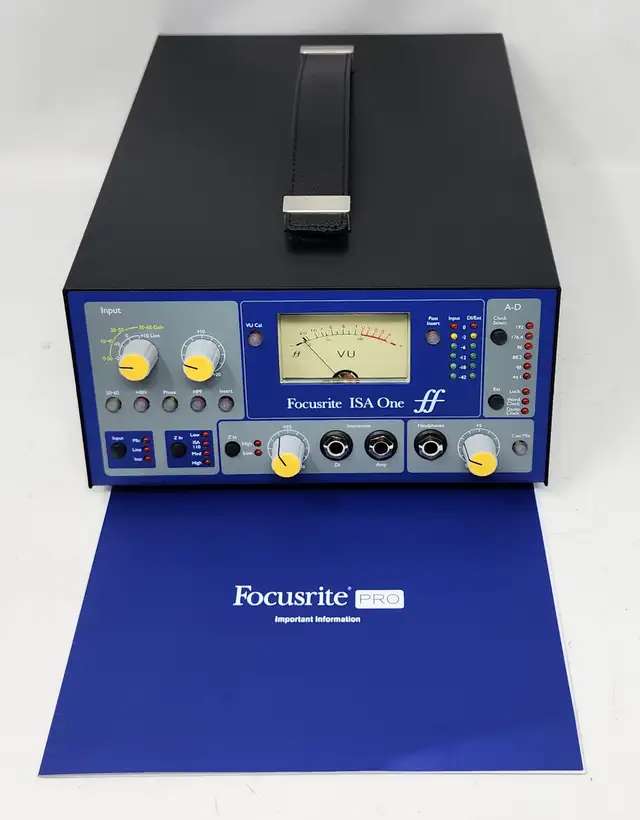

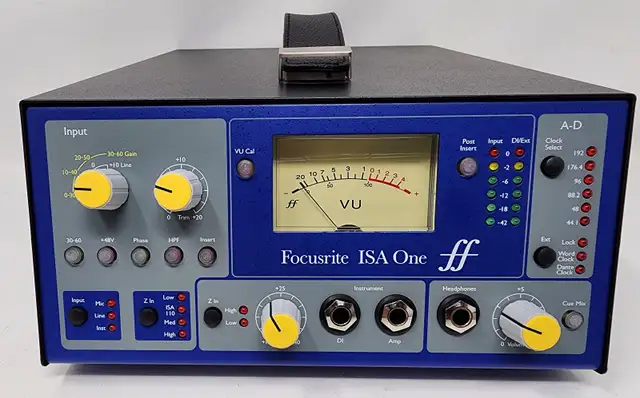

Featuring a rugged, portable all-metal enclosure, the ISA One combines the classic Focusrite microphone preamp with a flexible, independent DI channel and optional 192kHz precision A/D conversion.
- Mic Input Response
- Gain range = 0dB to 60dB in 10dB steps 20 dB of variable gain
- Input Impedance, variable as follows: (Switched Impedance setting Equivalent Input Impedance at 1kHz)

- Line Input Response
- Gain range = -20dB to 10dB in 10dB steps 20 dB of variable gain
- Input Impedance = 10kOhm from 10Hz to 200kHz

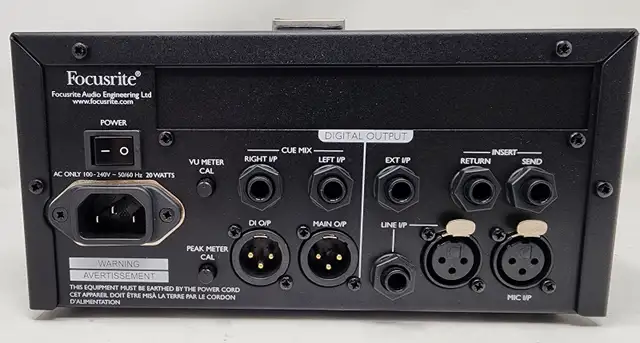

- Analogue Channel Inputs:
- Mic input: XLR x 1
- Line input: XLR x 1 and TRS x1
- Instrument input TRS Jack: XLR x 1
- External ADC input: TRS Jack x 1
- Return: TRS Jack x 1

- Analogue Channel Outputs:
- Send: TRS Jack x 1
- Balanced line output: XLR x 1
- DI output: XLR x 1
- DI through: TS Jack x 1

- Analogue Channel Additional I/O:
- Cue mix left input: TRS Jack x 1
- Cue mix right input: TRS Jack x 1
- Headphones output: 1/4" TRS Jack x 1
