Powered Tannoy Biamplified Nearfield Monitors Reveal R5A

Description
$395

Powered Tannoy Biamplified Nearfield Monitors

The Tannoy REVEAL 5A is a biamplified nearfield monitor, sold as a pair, equipped with a 40-watt LF and 20-watt HF set of amplifiers, powering a 5" woofer and a 1" soft dome tweeter that features WideBand technology design, with an extended frequency range to 30kHz and a wider "sweet spot".

The high-rigidity, minimum diffraction design of the REVEAL 5A, combined with a rear-ported bass-reflex design, ensures improved low end reproduction and mid-range clarity. This speaker represents a very affordable monitoring solution for project and commercial recording studios, and broadcast or mobile truck remote environments.

Affordable biamplified professional and project studio nearfield studio monitor with 60 Watts of combined amplification

5" driver in high-rigidity, minimum diffraction sculpted baffle; secure 10-point driver installation for maximum contact with baffle

Bass-reflex rear cabinet design for enhanced low end clarity

WideBand tweeter technology with extended amplitude response to 30kHz preserves integrity of harmonic structure and stability of stereo image

Smooth tweeter faceplate contours prevent diffraction and unwanted cavity effects

MDF sculpted baffle with internal bracing for minimal diffraction and interior cabinet resonances; fast bass response and improved midrange clarity

Balanced combination XLR/1/4" Phone inputs

Heat sinking for cool, reliable long-term amplifier operation

Controls and Indicators 1 x On/Mute/Standby Push Switch(Front)
1 x Volume Control Trim(Front)
1 x LED Status Indicator
1 x Mains Isolation Switch(Rear)
Connectors 1 x 3-pin XLR Female/1/4" TRS Phone Combo, Balanced
Shielded Yes

Drivers:
High Frequency Driver 1" soft dome with Neodymium magnet system
Low Frequency Driver 5" multi fiber paper pulp cone

Tannoy Reveal 5A Active Specifications:

Frequency Response: 65 Hz - 30 kHz

Power Handling RMS/Program 60W/120W

Maximum Sound Pressure Level: 109 dB

Dispersion 90 degrees

Dimensions: 11.75 x 7.25 x 12" (298.8 x 184 x 304.3mm), Weight: 17.15 lb (7.8 kg)

Features the Neutrik XLR/TRS combi input

Distinctive playback monitor providing sonic excellence.

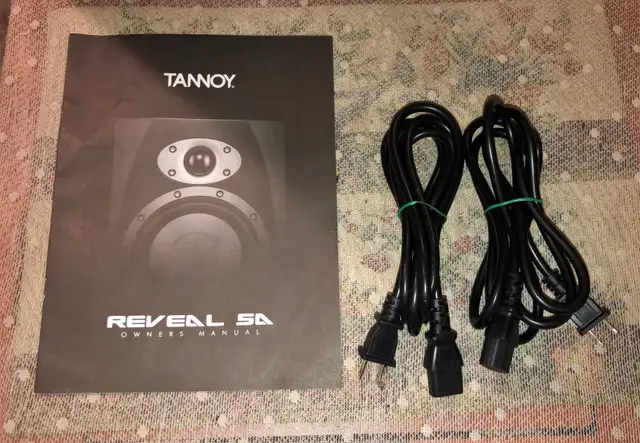

Includes pair of heavy duty power cables.


These impressive Tannoy's originally retailed for $1200 Canadian tax. Asking just $395 for the pair.

Can provide a pair of heavy-duty 1/4" cables for an additional $20.

Can provide good quality RCA - 1/4" Adapters for $10 each.


Please take a look at my other ads

Discounts:

5% off 2 pieces of stereo equipment
10% off 3 pieces
15% off 4 pieces
20% off 5 or more pieces

To view our other listings, please click the link "View seller's list" at the right, just below our phone number.
When you call please mention you found this ad listing on OKz.ca

Contact Information

Contact Person:Radique Audio
Address:Kanata, ON K2K 3E2
City:Ottawa
Phone:613-416-XXXX (Show)
Asking Price:$395

Other Information

For Sale By:Owner
Fulfillment:Drop Off / Delivery,Curbside Pick Up
Payment:Cashless Payment,Cash Accepted
Condition:Used - Good
