About: Kramer HDMI Wallplate Transmitter over DGKat (White)

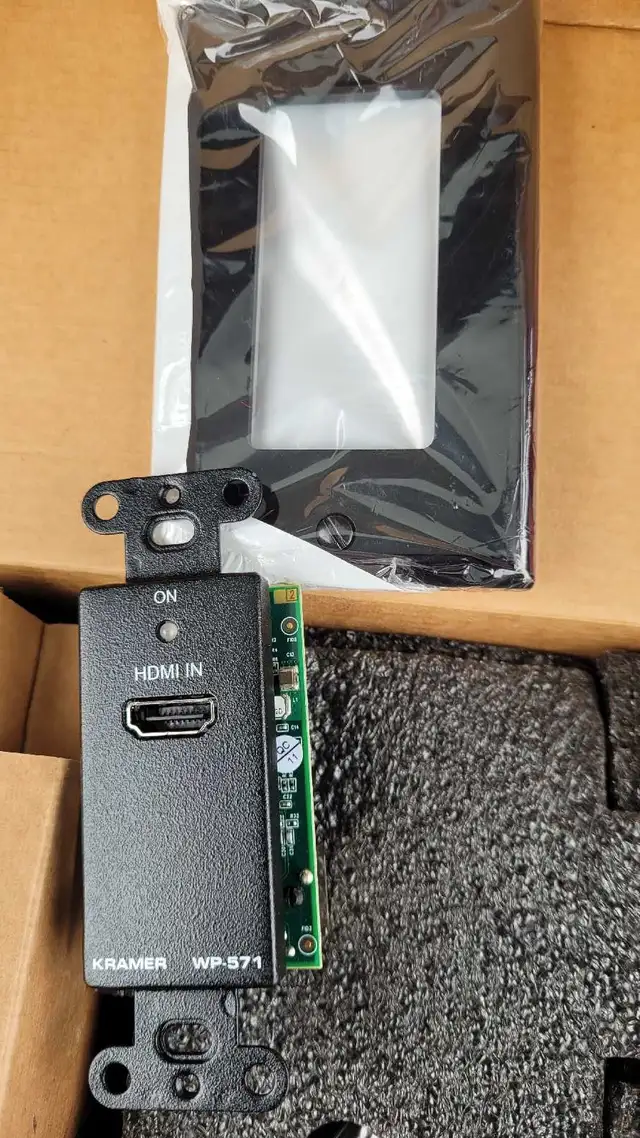

The WP−571 is a DGKat™ wall plate transmitter for HDMI signals. The WP−571 converts an HDMI signal to a DGKat™ twisted pair signal that it transmits to a WP−572.
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant.
DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
HDMI Support - HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD.
3D Pass-Through.
System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.
Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
EDID PassThru - Passes EDID signals between the source and display.
Active Power Indication - The ON LED lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are attached.
Power Connect™ System - A single connection to the transmitter powers the receiver.
Dimensions - 3.3cm x 3.6cm x 10.4cm (1.3" x 1.42" x 4.1") W, D, H.
Size - Wall Plate - 1 gang European or US.
Applications:
Board, conference, and training rooms.
Presentation systems.
Signal distribution and home theater.
Quick Facts
Requires Shielded Twisted Pair Cable
Max. Data Rate − 4.95Gbps (1.65Gbps per graphic channel)
Size - Wall Plate
Audio - E
When you call please mention you found this ad listing on OKz.ca
Contact Person | : | sales |
Address | : | Scarborough Town Centre, Toronto, M1P 4P5 |
City | : | City of Toronto |
Phone | : | 647-859-XXXX (Show) |
Asking Price | : | $135 |
For Sale By | : | Owner |
Fulfillment | : | Shipping,Curbside Pick Up |
Payment | : | Cashless Payment,Cash Accepted |
Condition | : | New |
