Item Number: 134101

The laboratory planetary mill is universally applicable to quick drying or wet grinding of inorganic and organic samples for analysis, quality control, material testing and mechanical alloying. In synthesis, the ball grinding mill can be used for mixing and homogenization of dry samples,emulsions and pastes.

Machine standard grinding tank capacity: 100ml*4
Standard grinding tank material：Agate(Containing ball)
voltage:220V 50/60hz
Power:370W
Usable grinding tank capacity: 100ml /50ml
Continuous operation timing range(min)：1-999
Forward and reverse alternating cycle selection(min):1-99
Rotational speed(r/min): rotation 50~400 revolution 100~800
Size: 19.7"*12.2"*16.1"(50*31*41 cm )

The vfd drive adopts inflammable plastic for the shell and 3-layer coatings on the inner motherboard to protect the vfd from dust, humidity and corrosion. Rheostat variable speed control adopts precision pressure regulating knob for voltage regulation, with high accuracy and good stability,Through the digital display screen, you can accurately understand the working voltage of the machine.

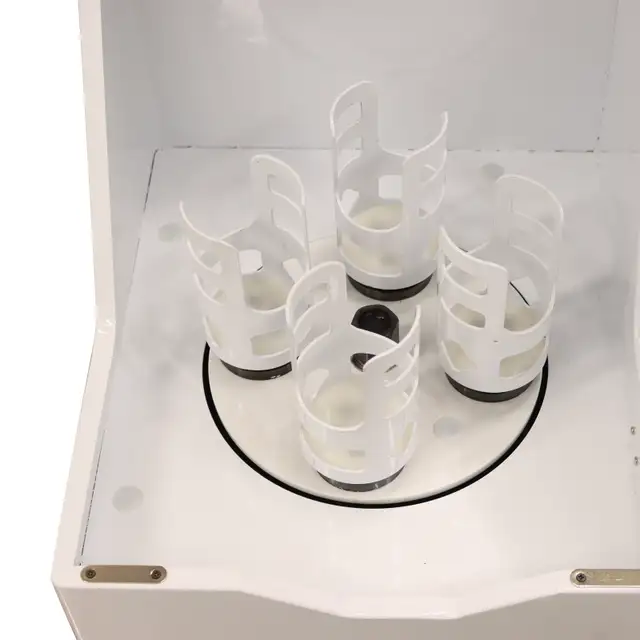

4 positions for placing the jars, you can choose different grinding methods, you can also grind a variety of materials at the same time,Can greatly improve efficiency.
The material is crushed and torn apart in two or four grinding jars by grinding balls.

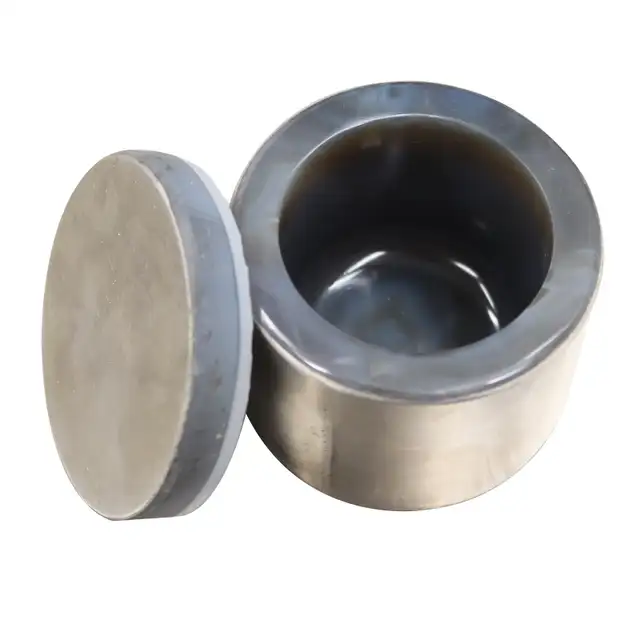

High purity natural agate ball mill jars.
Resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be ground without contamination. Each jar set includes grinding jar, lid, rubber sealing gasket and mixed agate grinding balls.

Working Principle
Planetary ball mill has four ball grinding jar holders installed on one planetary disk. When the planetary disk rotates, the jar shaft makes planetary movements and the balls in the jars grind and mix samples in high speed movement. The instrument can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground products can be as small as 0.1 micron.

Features
Elegant design, easy to operate.
Ideal for wet or dry grinding application
Automatic and programmable control with LED display.
multiple grinding modes to choose.
High Uniformity and excellent repeatability
Fast rotational speed, high efficiency and fine granularity
Four samples with different sizes and materials in one experiment
Programmable interval and pause times
Stepless speed regulation, reversing function
Large range of materials available for grinding tools
Gear-drive offers an effective solution to problems caused by belt driving
Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation, no pollution and small wear

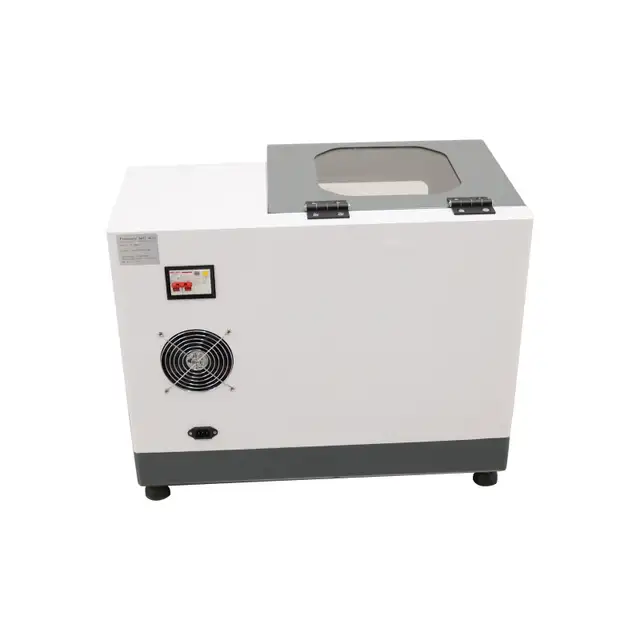

Cooling of the grinding chamber with a built-in fan for long grinding times

Items included:
One machine, agate ball mill jars (100mL)*4.
