Item number: 056658
-
Product Overview
The rebar bender machine can bend 1/4 "to 1.6" (6 to 40 mm) rebar. The bar bender machine adopts a sturdy iron machine body and durable Idler Wheel. It is widely used in construction engineering, used to bend round steel, rebar, screw and so on, the machine can be batch operation. Built-in safety device can stop operation immediately.

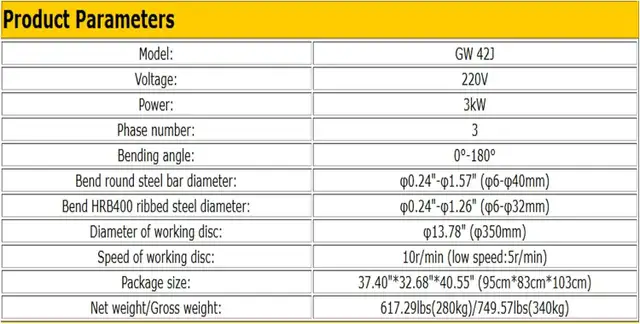

Product Parameters
Model: GW 42J
Voltage: 220V
Power: 3kW
Phase number: 3
Bending angle: 0°-180°
Bend round steel bar diameter: φ0.24"-φ1.57" (φ6-φ40mm)
Bend HRB400 ribbed steel diameter: φ0.24"-φ1.26" (φ6-φ32mm)
Diameter of working disc: φ13.78" (φ350mm)
Speed of working disc: 10r/min (low speed:5r/min)

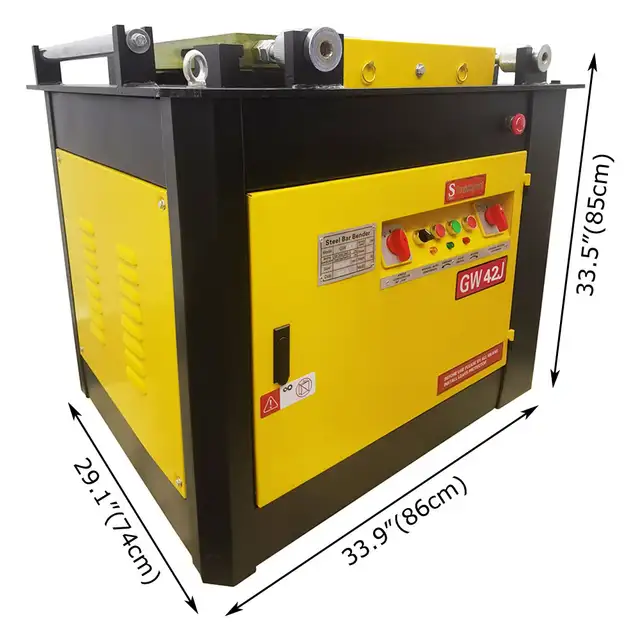

Package size: 37.40"*32.68"*40.55" (95cm*83cm*103cm)
Net weight/Gross weight: 617.29lbs(280kg)/749.57lbs(340kg)

Product Features & Advantages
a. Durable
The bar bender machine adopts a sturdy iron machine body and durable Idler Wheel. Moreover, it can stand super-hard rebar with strong clamping force, which can help to reduce steel rebar waste.

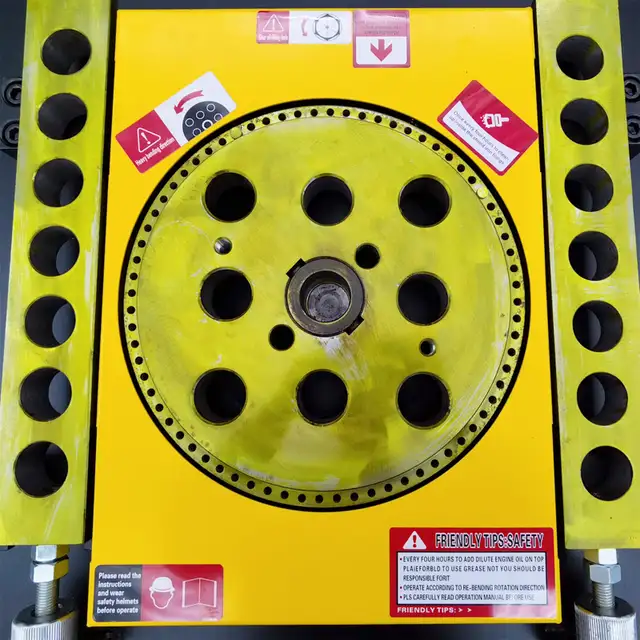

b. Disc
The high-strength steel ldler Wheel is made of 40 chromium with athickened design, is more firm and surface treatment, easier to bend steel, accurate calculation, can be through any combination to get the length you want.

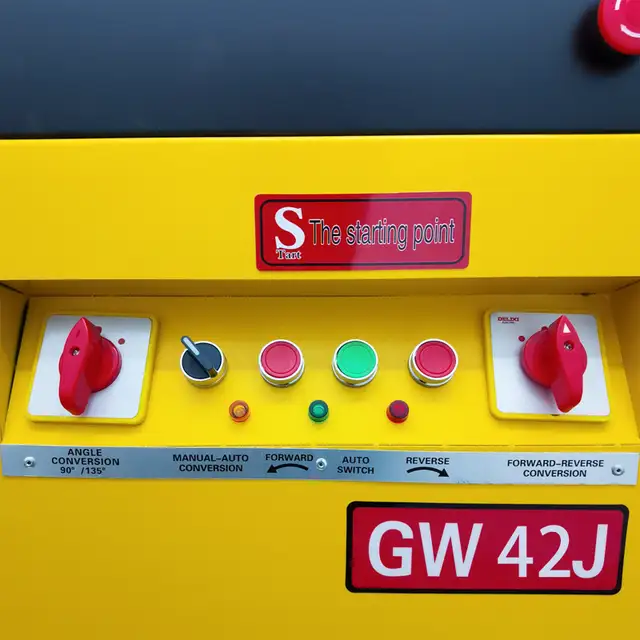

c. Switch
The operation panel is simple and clear, including six buttons and three indicators, easy to operate, beautiful, easy to use.

d. Motor
3000W high-power pure copper coil motor, smooth operation, low noise, long life, higher work efficiency.


e. Accessories
Selection of refined steel accessories, solid, quenching process, corrosion resistance, long life.


f. Wide application
Widely used in construction sites, railway and bridge construction, production workshops, etc., can bend 6-40mm rebar, round steel, medium carbon steel, low carbon steel and other materials.

g. Feed roller
The steel bar is placed on this roller, which can roll feed, more labor saving and more convenient.


h. Regulating bar
When the steel bar is placed, it can be adjusted according to the Angle of bending, and the use is more flexible.


i. Belt transfer
The belt used for transmission is durable and has a long service life; The motor torque transmission is stable, the torque is larger, and the bending speed is faster.

j. Wheels
Built-in four anti-skid wheels, can be moved to the required place at any time according to need, easy to use, save time and labor.


k. Lifting hook
There are two lifting hooks designed on the machine, when the machine needs to be lifted, you can hook the two lifting hooks, easily lifted, will not damage the machine.


l. Foot switch
The machine can be controlled by the foot switch to reduce the workload of the hand; Just step on the foot switch to quickly bend the steel bar, user-friendly operation design.
m. Vent hole
There are a large number of air vents on the left and right sides, which can discharge the excess heat generated by the machine in time, prevent the temperature from being too high, and protect the machine.


n. Emergeney switch
There is an emergency switch on the control panel, which can stop the operation of the machine quickly in case of emergency to ensure the operator's personal safety.


o. Safety tips
Every four hours to add dilute engine oil on top plaieforbld to use grease not you should be responsible forit. Operate according to re-bending rotation direction. Please carefully read operation manual before use.

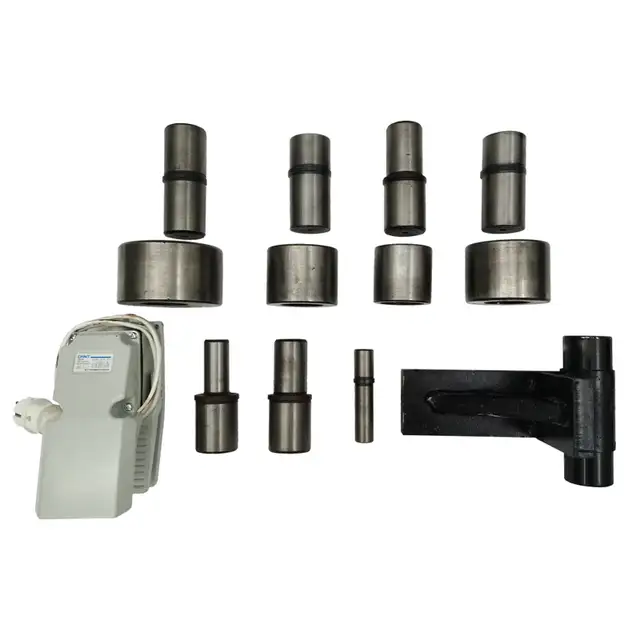

Item Included: 056658
Rebar bending machine *1
Foot switch *1
Accessories package *1
