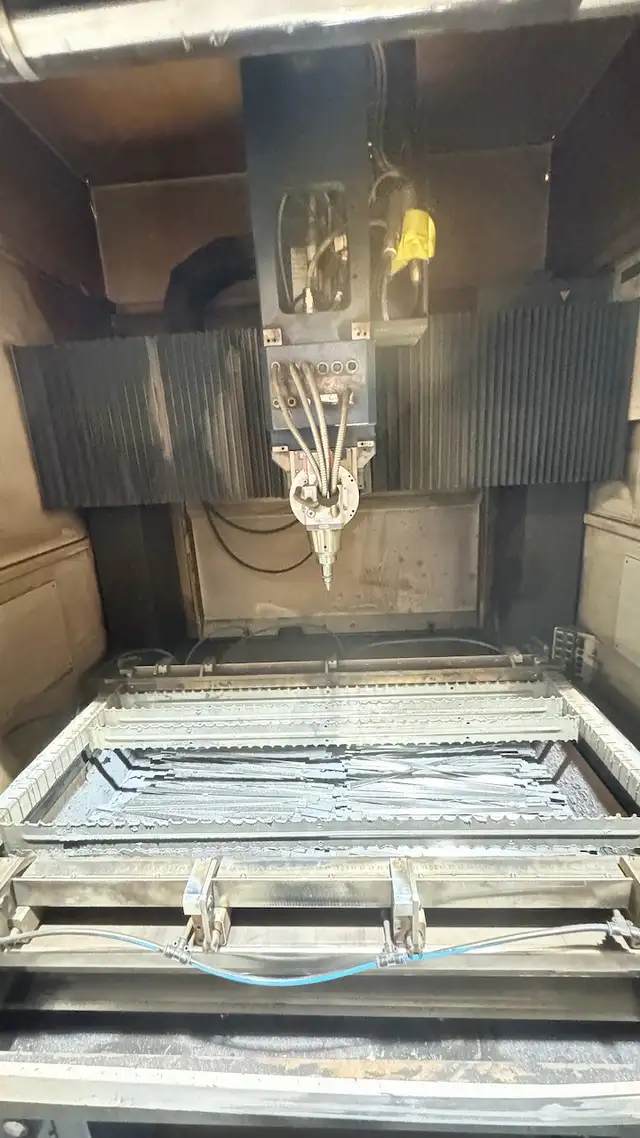

Trumpf 5 Axis 1 K Laser Cutter/Welder
Rare offering to the metal industry

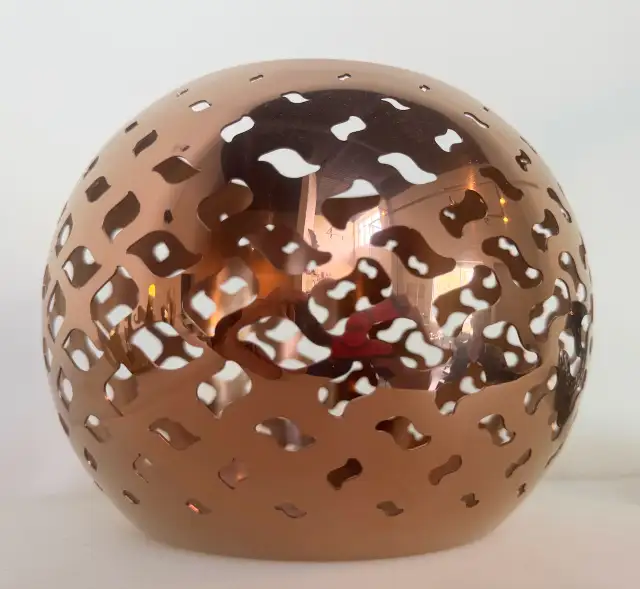

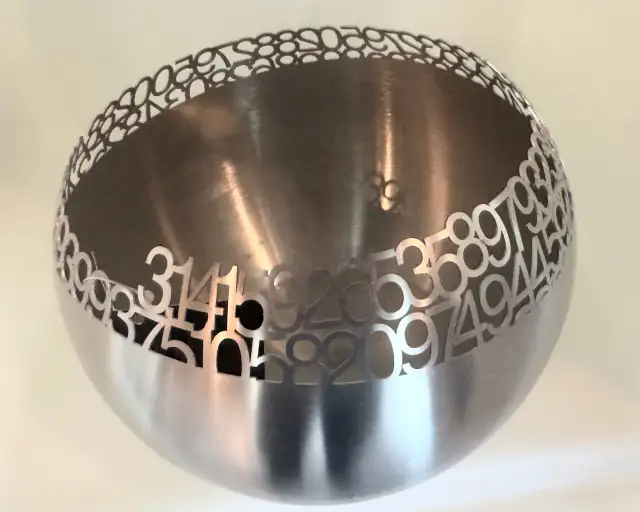

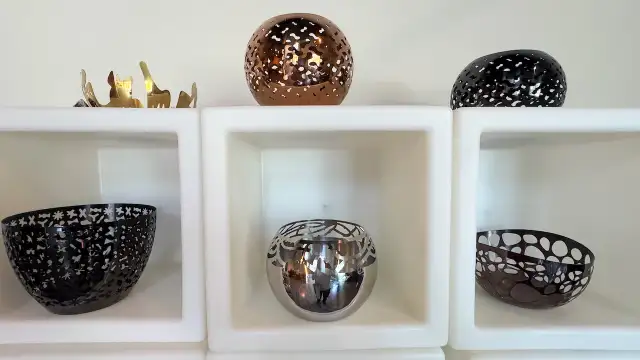

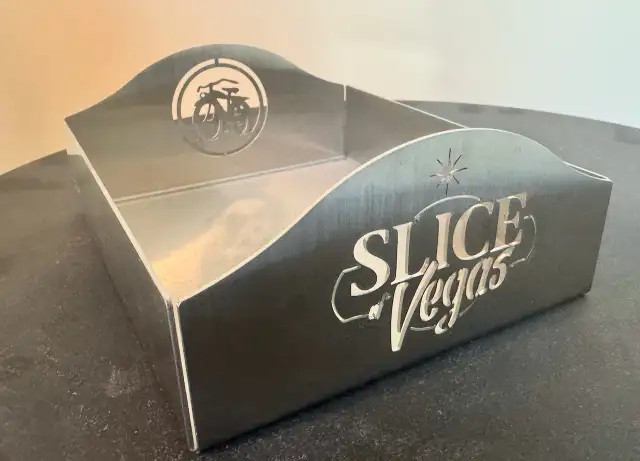

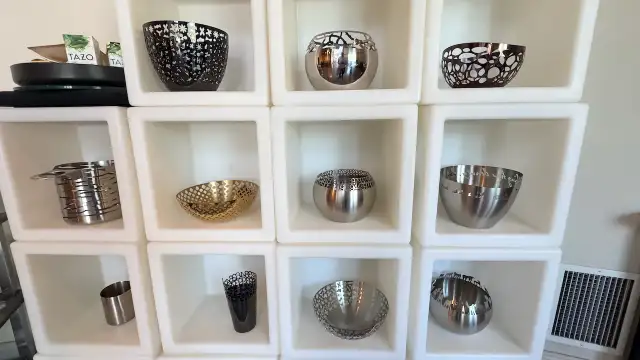

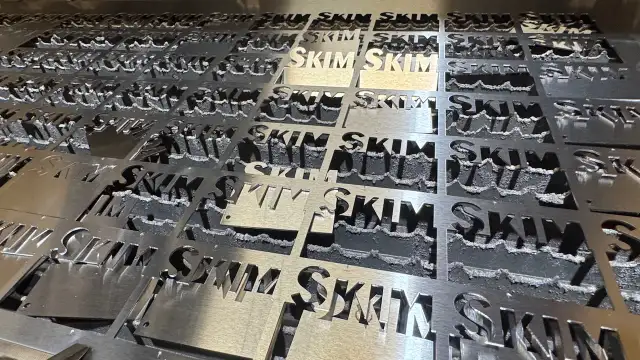

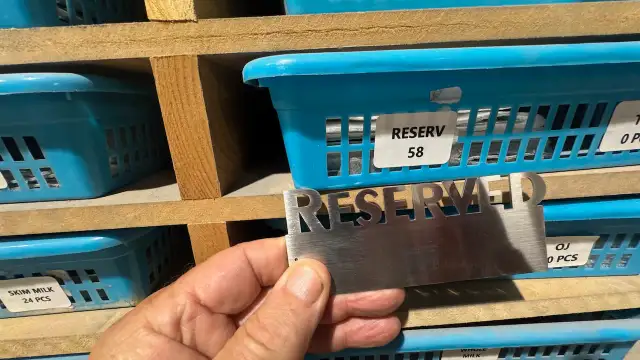

See resulting Products -

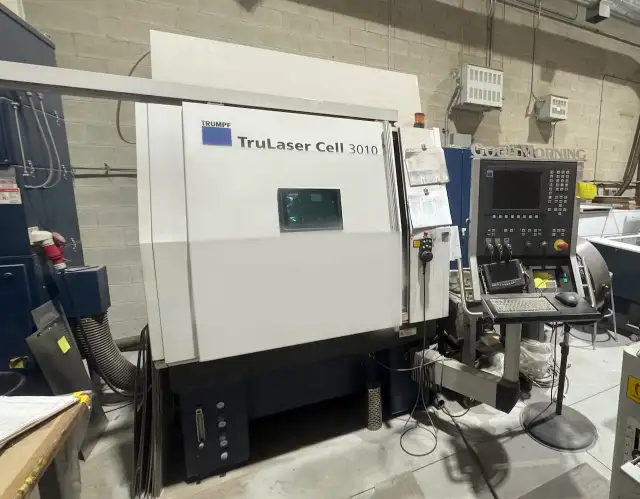

Basic TruLaser Cell 3010
Machine for the precise and dynamic laser processing, in portal construction
method with mobile work piece in the X- and C-axis.
Technical data
work range X Y Z: 1000x500x400 mmÑ
swiveling angle B | C : ±135° | n x 360°
position tolerance Tp: 0,015 mm
max. axis speed: 50 m/min
max. rotation number B | C | C2:
120 | 750 | 90 1/min
weight machine: 2400 kg
weight switch cabinet: 300 kg
protection type: IP 54
installation surface width x depth x height:
2700x2800x2400 mmÑ
fixed connection: 380-460V ±10 %, 50/60 Hz
power consumption 2-5 kVA, depending on the expansion stage
Machine body
steel under frame with leveling elements and vibration damping connection
to the portal pedestal from hard stone
fastening surfaces for the direct mounting of the X- and Y-axis
Linear axes
generously dimensioned, stiff linear units with high stiffness and good
damping properties
ball spindle drives with attached deflected digital servo motor 611D 1FT
6044 / 6034
Total pdf Specs. on request.
Under Power for Demo - Milton, Ontario
