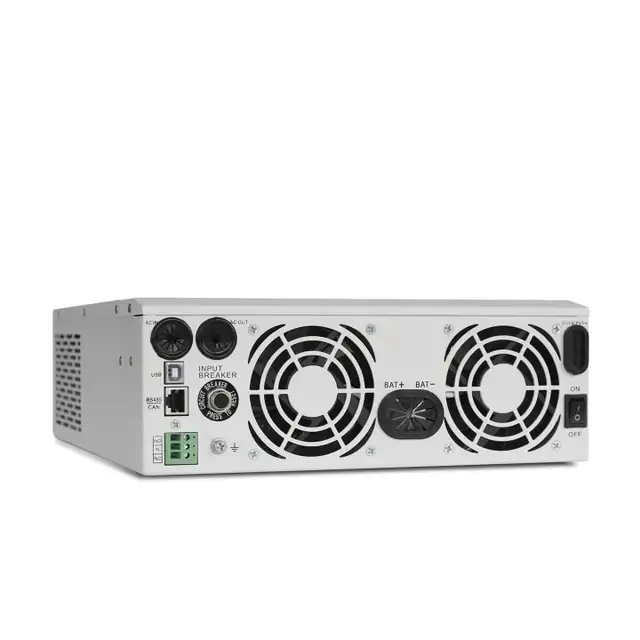

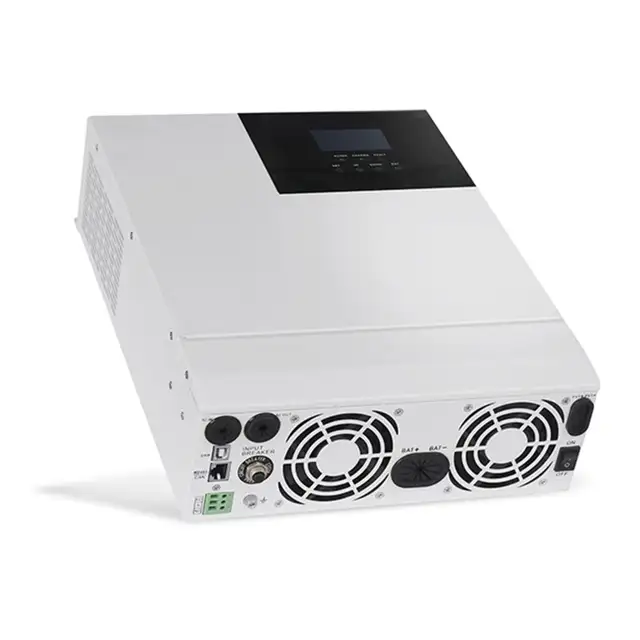

This Solar Energy Center Inverter integrates solar charging, utility charging, AC output and battery storage all in one unit. There is no more need to have separate components for your off-grid system. Everything you need will be in one single unit. Thanks to it's DSP control and advanced control algorithm, it has a high response speed, high reliability and high industrial standards.

Here are some of the main performance characteristics of our all-in-one inverter:

Full digital voltage and current double closed loop control, advanced SPWM technology, pure sine wave output.
Two AC output modes: AC Mains (local utility/generator), Inverter Output (from battery bank)
4 different charging modes:
Only Solar: Charging only from the solar panels.
Mains Priority: Charging the battery using local utility/generator first. When the local utility/generator charging fails, the PV charging will kick in.
Solar Priority: The solar PV charging takes priority. The local utility/generator charging will only come on when the PV charging fails and the battery bank falls below 21 V (default setting).
Mains & Solar Hybrid: The solar PV charging takes priority. The local utility/generator charging will only start if the PV charging is insufficient. The local utility/generator will supplement the PV charging until the PV charging is sufficient again.
Advanced MPPT technology with an efficiency of 99.9%
Can support multiple battery types (i.e. lithium iron phosphate, AGM, lead-acid, etc.)
Power saving mode to reduce the amount of no-load losses
Intelligent variable speed fan to dissipate heat and extend the system life
All-around protection such as overload, short circuit and over current protection
Supports a variety of communication modules (i.e. RS485, CAN, USB, etc) and is suitable for computer, mobile phone, internet monitoring as well as remote operations

Here are the main specifications for the all-in-one inverter:

AC Output
3000 W Max. Continuous Output
110/120 VAC Pure Sine Wave
60 Hz Frequency
>95% Efficiency
Overload Current 40 A

PV Charging
Max. Open Circuit Voltage 100 VDC
PV Operating Range 30 - 100 VDC
Battery Voltage Range 20 - 33 VDC
Max. PV Input 1400 W
