Item NO # 120389

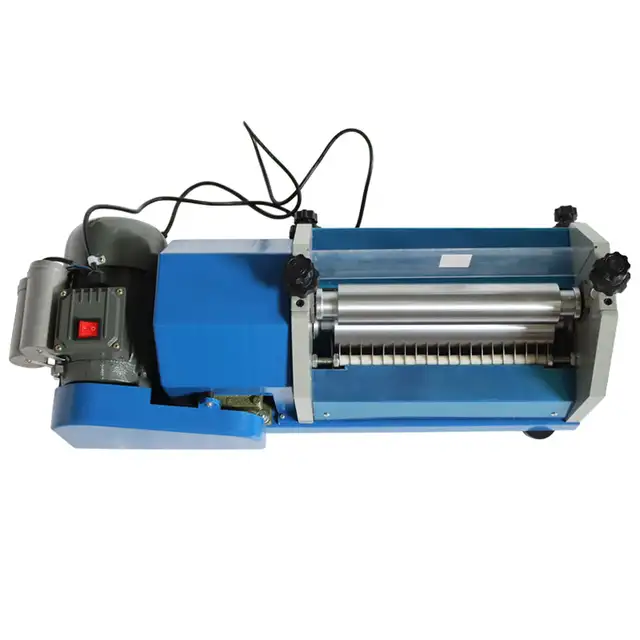

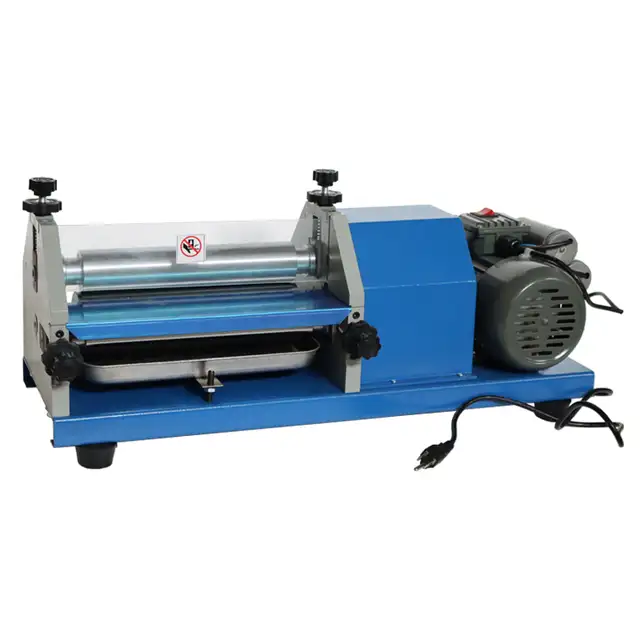

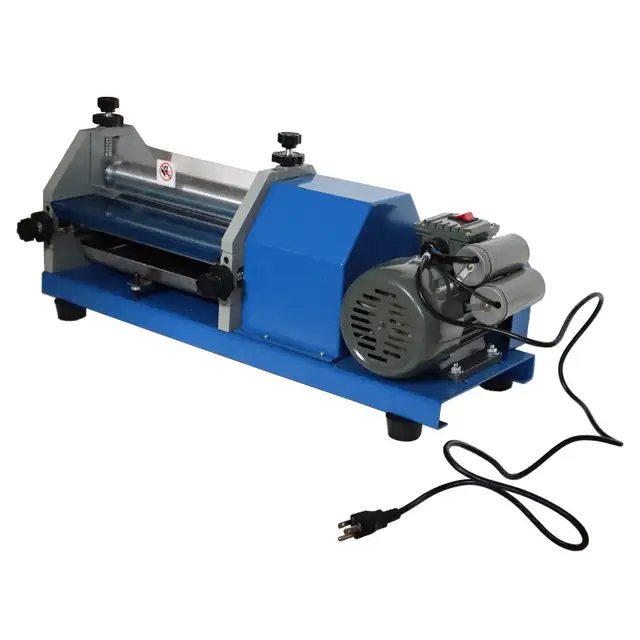

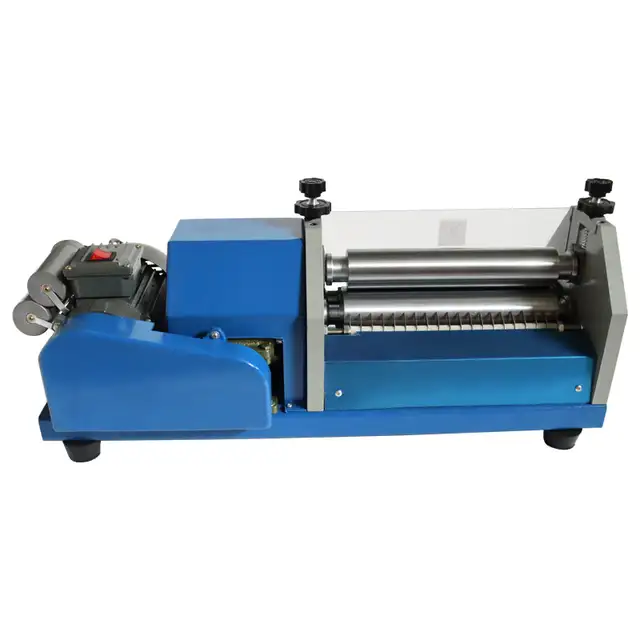

The white latex sizing machine is suitable for sizing various water-soluble glues. The thickness of glued objects can be adjusted at will between 0.5-3mm. It is used for automatic printing when various materials need to be coated with adhesive layer when they are bonded with each other. It can achieve the required painting thickness and strength evenly and quickly. It is an ideal equipment for automatic gluing of thin workpieces in various shoemaking, paper and other industries.
-
Features:
1.With beautiful appearance and simple operation, it can realize automatic printing and achieve the required painting thickness and strength evenly and quickly.
2.It is suitable for gluing materials with different thicknesses. The thickness range is 0.5-3mm, meeting more requirements.
3.There are three cots in total, one at the top and two at the bottom, which can better level the materials and evenly glue the relatively thick materials.

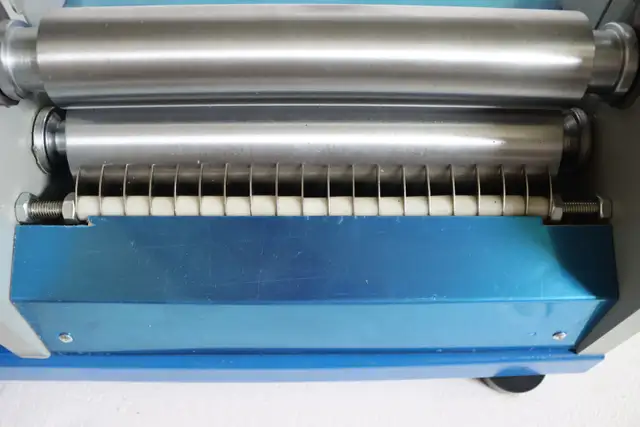

4.It adopts the design of paper discharge teeth. When the glued articles are discharged, prevent them from being drawn into the roller and glue groove.
5.There is a tray bearing glue at the bottom, which is made of stainless steel. It is more corrosion resistant and durable, with large capacity, and can work continuously.
6.After using it, please note to clean the glue on the machine to prolong the machine life-time.

Note:
When the machine working, please keep hand away the roller.
-
Parameter:
Coating speed:10m/min
Coating Width:10.6In
Voltage: 110V
Power: 250W
Package Weight:approx 96.8Lb (44Kg)

Attention
1. In the working process, do not touch the rollers so as to prevent hands from being crushed.
2. Please note that the voltage of the gluing machine is 110V.
3. If the glue is attached to the upper roller in the glue coating process, please wipe away the glue immediately so as not to dirty the material.
4. Each time the work is completed, please wipe away the glue on the machine to prolong the service life of the machine.
5. After the work is completed every day, each sleeve should be lubricated timely, then idling needs to be conducted for a few minutes, and then the machine can be stopped.

Operation Method
1．The baffle is opened, the glue is poured into the glue box (1), so that at least 1/3 of the steel roller (6) is dipped into glue.
2．According to the desired thickness of the material to be turned over, adjust the central axis of the gap between the steel roller (5) and the steel roller (6). Clockwise rotate the adjusting knobs (3) to enlarge the gap, and counterclockwise rotate the adjusting knobs (3) to reduce the gap.
3．Turn on the power switch.
4．Adjust the glue thickness according to the material and the adhesive requirements, clockwise rotate the two adjusting knobs (4) to thicken the glue, and counterclockwise rotate the adjusting knobs (4) to thin the glue.
5．Insert the baffle back to the original position. After all parts are adjusted to be normal, the glue side needs to be placed downwards on the baffle, the workpiece is pushed gently to pass through the space between the steel roller (5) and the steel roller (6), and is coated with glue automatically and intermediately, and the sizing process is completed.

Item Included:
One set of Glue Coating Machine110V (120389)
