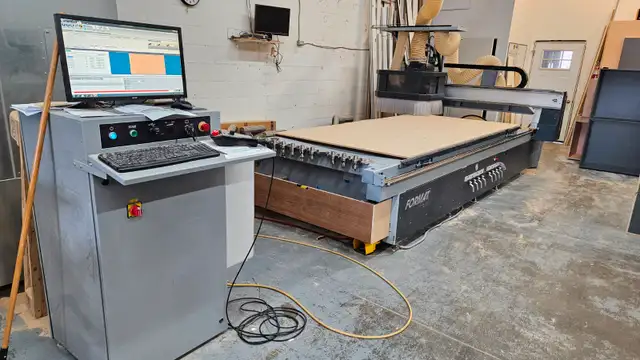

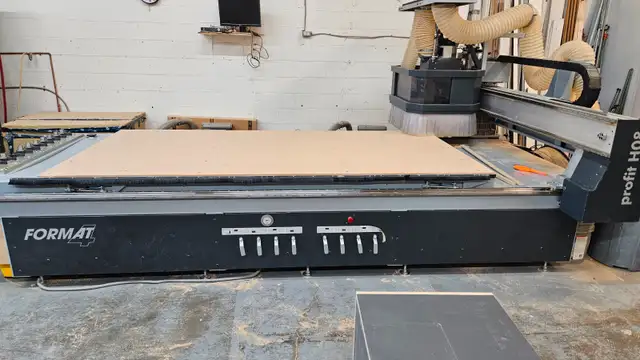

FELDER FORMAT4 PROFIT H08 16.31 FLAT TABLE MACHINE (W/ATC)
Year: 2019
Specifications -
5' x 10' "MATRIX" Phenolic Flat Table design for "Nested Base" Manufacturing.
-- Working Capacity"X" Axis is 145" (3,683 mm); "Y" axis is 60.2" (1,530 mm);"Z" axis stroke is 11.8" (300 mm); max. material thickness is 4.3" (110 mm).

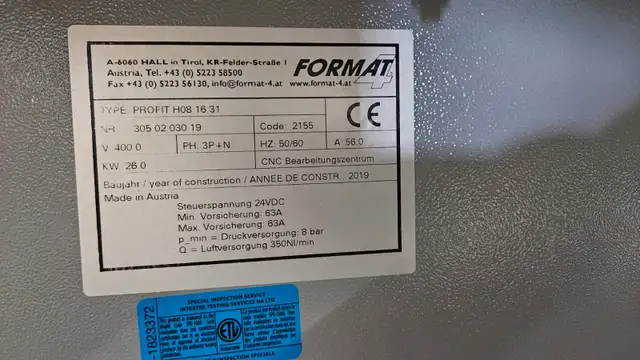

- 600 v with included transformer. (machine is 400V)
-- Positioning Speed"X" & "Y" Axis at 197 FPM (60 MPM); "Z" axis is 49 FPM (15 MPM).
-- WorktableThe working area is subdivided into (8) vacuum fields (H08 16.31) to ensure the best holding force for the most varied board sizes. The vacuum fields are controlled manually by means of hand levers on the front side of the machine.Prepared for (optional) elevated pods that allow profile & horizontal machining.

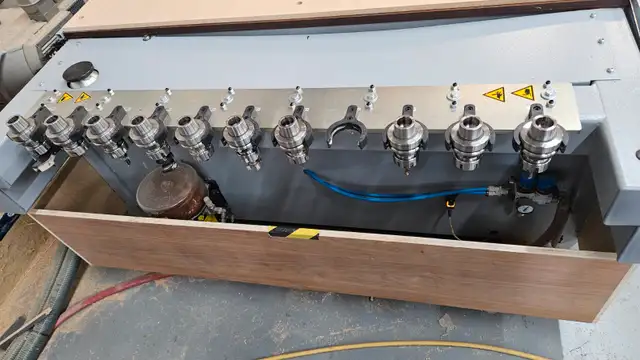

-- Machining(1) 13.4 HP (10 kW) Vertically mounted electro-spindle router with: HSK F63 Adaptor; inverter driven 1,000 - 24,000 RPM with max. torque from 12,000 RPM.(1) 11-Position ATC tool rack mounted at the end of the machine.

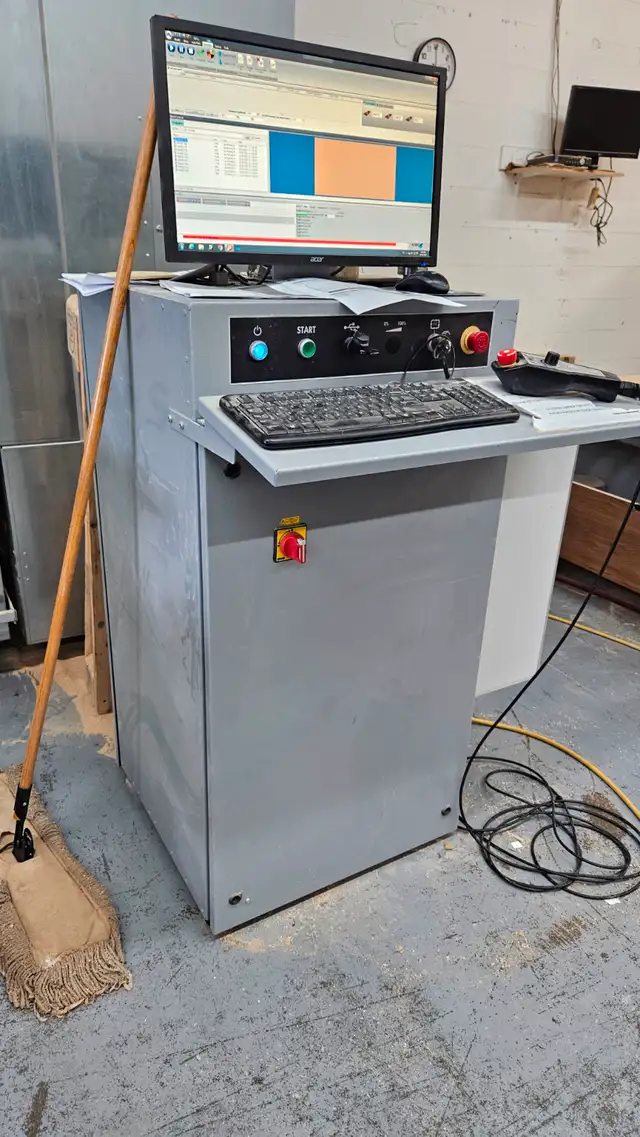

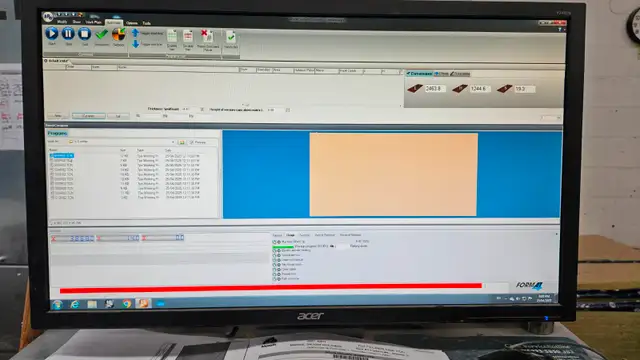

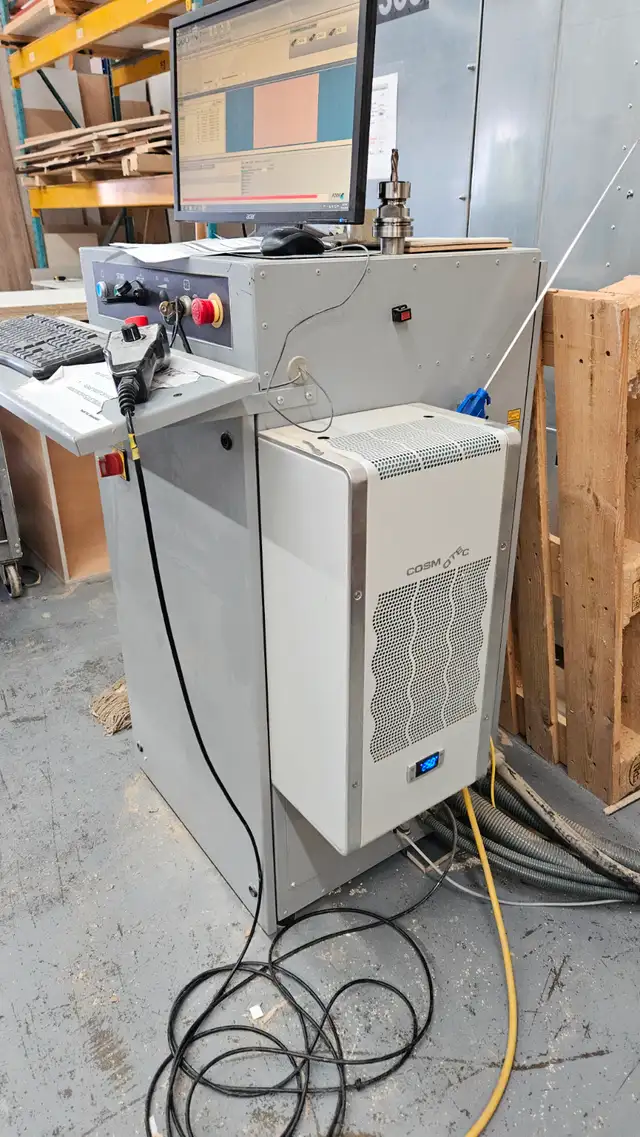

-- Operator & Machine Control PC Based User-Friendly, icon driven control housed on the main machine base "WOODFLASH" Operating System.

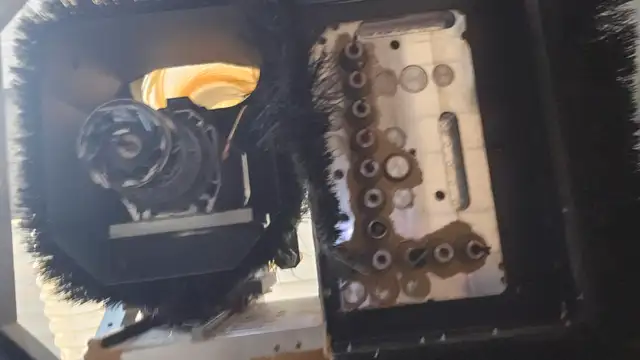

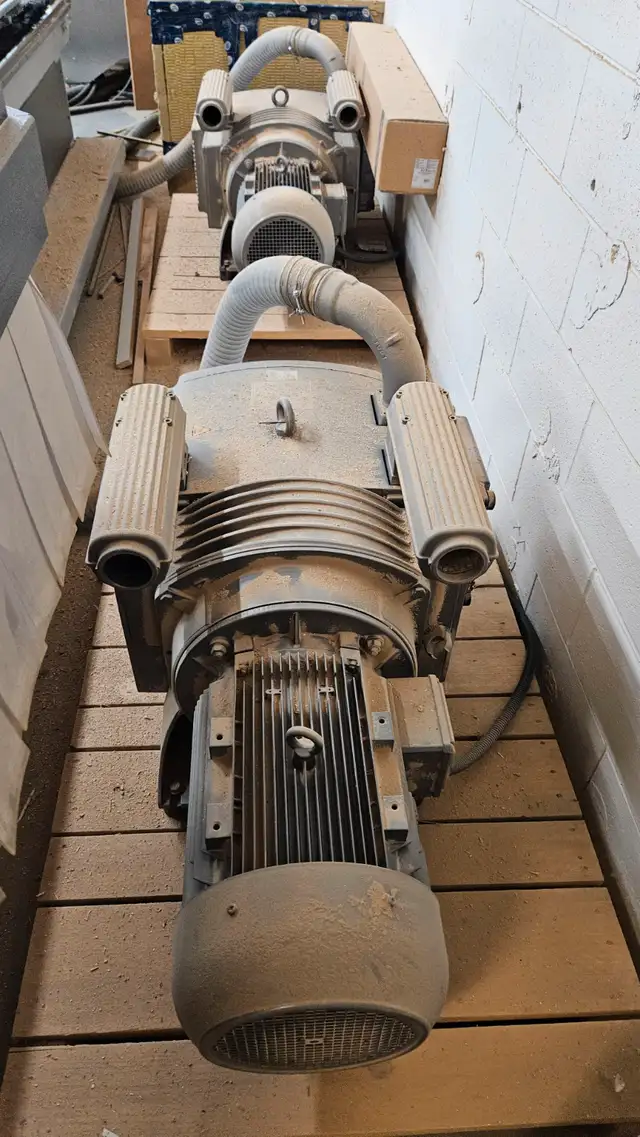

-- Complete with: (2) 250 cpm/Hr Vacuum pumps; handheld terminal with: Potentiometer & emergency stop; automatic measuring system of the tool length.Sound absorbing protective head enclosure with debris curtain around bottom edge.
Excellent condion - Video on request.
Location: Toronto - Call Jim - Hamilton - cncsales.ca - 905 745 6663
