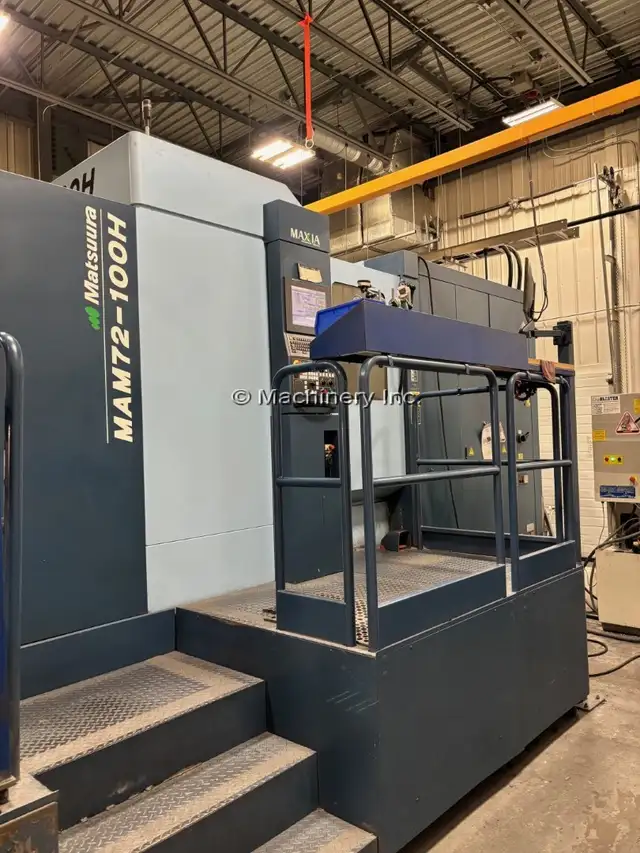

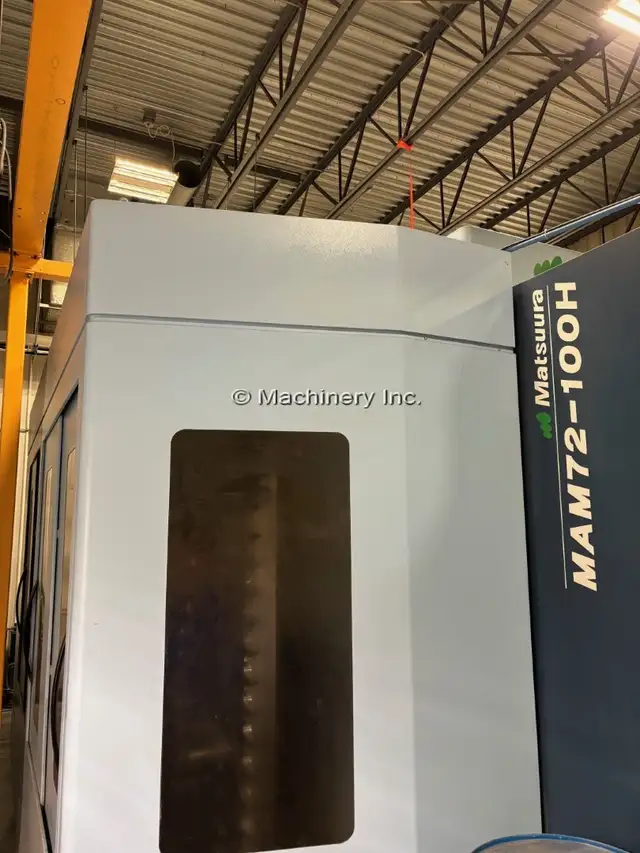

Matsuura MAM72-100H (2-Pallet) 5-Axis CNC Horizontal Machining Center, 15K RPM, 150 ATC, 2016
MANUFACTURER: MATSUURA
MODEL: MAM72-100H
YEAR: 2016

Specifications:
X-axis 41.33"
Y-axis 36.22"
Z-axis 37.79"
A-axis -120 to 30 dee
C-axis Table rotation axis 360 deg
Pallet Surface to Spindle Center -10.63 – 25.59”
Pallet Center to Spindle Gauge Line 5.9” – 43.7”
Pallet Center to X-Zero Position 22.63”

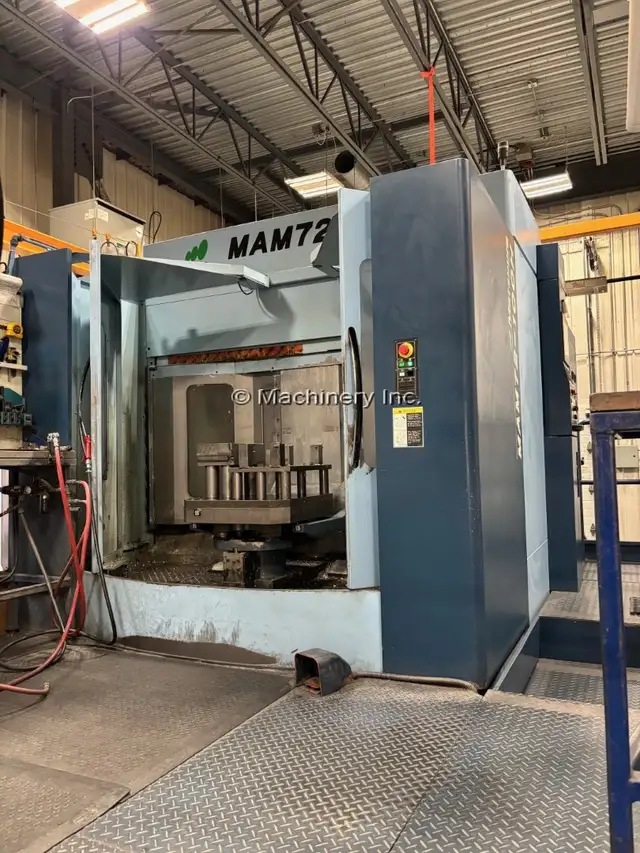

Pallet
No. of Pallets 2 / Rotary Type
Pallet Weight 616 lbs
Pallet Work Surface 24.8” x 24.8”
Max Work Envelope Dia. 39.37” x H 30.31”
Distance from Floor to Pallet Surface 60.82”
Index Increment A/C 0.001 / 0.001 Deg

EQUIPPED WITH:
- Linear scales on all axes
- Direct drive motors for A & C axes
- Overhead coolant flushing
- Matsuura high speed look head function including Fanuc data server
- EZ-5 Kinematic function
- 15,000 rpm high torque spindle
- HSK-100 spindle taper
- 150 position ATC (Expandable to 240 tools)
- Turbo lift-up chip conveyor and filtering system
- Renishaw ln Process Measurement probe & Laser Tool Measurement System

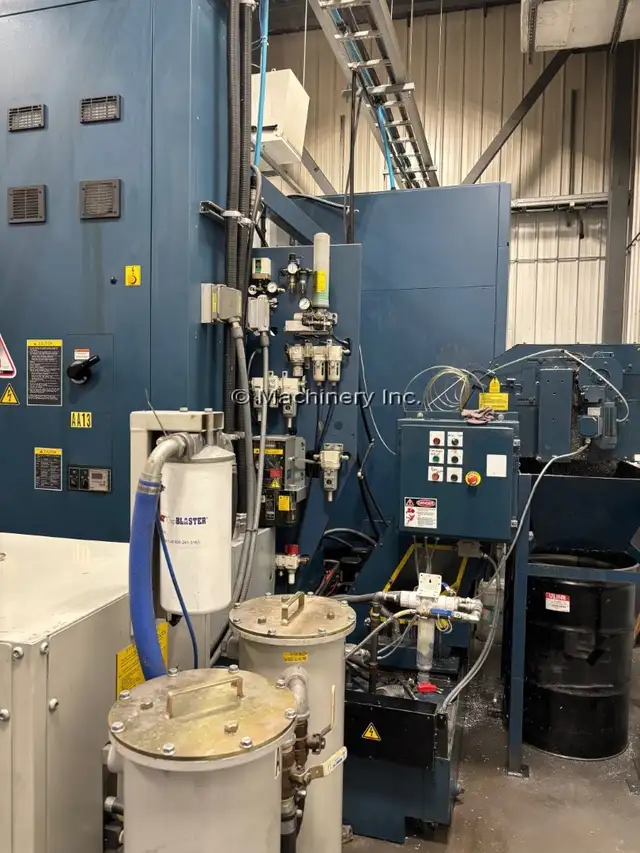

- ChipBlaster JV-40 high pressure coolant system
- CAMplete Trupath simulation software and post processor

Working hours: 33 787 hours

NOTE: NEW SPINDLE IN APRIL 2023.

* Preliminary Specifications Subject to Verification
