Item Number: 022780

Hole drilling machine for engineering machinery is a piece of portable processing equipment developed for field service of engineering machinery, and is mainly used for processing inner holes and concentric span holes of small-scale pipelines, and widely applied in engineering machinery including excavators, cranes, loaders and hoists. Only one person is required for operation, and the actual operation difficulty is greatly reduced for its focus on field in design concept and processing to make a serviceman operate the machine easily.
Main application scope: processing after repair welding, or bushing installation after hole expansion of rotation holes, hinge joint holes and hinge pin holes, and hinge pin hole in all engineering machines; repair and processing of concentric holes in excavators, loaders, pressure machines, cranes, etc.; and side-by-side arrangement of multiple holes to conduct one-time positioning processing to ensure the Coaxiality of these holes.

Product features
1 Driving of hole drilling machine.By adopting 110V AC servo motor with characteristics of low-speed revolution and high torque, the complete machine can realize stationary machining in superior performance.
2 No vibration in end travel and cutting process.
3 Feeding and processing can realize electrodeless speed regulation. Feeding process can be set according to demands, and processing can automatically stop after reaching the limit switch.
4 Boring bar adopting high-strength alloy and structural steel with characteristics of high hardness, high accuracy, high tenacity, good abrasion resistance, etc.
5 In effective travel, the tool rest can be fixed at any position of boring bar.
6 The boring bar can be disassembled separately and assembled.
7 Electric motor controller is equipped with an immediate brake program to Avoid vibration in the shutdown process .
8 The control Cabinet is installed below the main engine to be beneficial to safety operation.

Parameter
The maximum processing hole diameter: 80mm
The minimum processing hole diameter: 35mm
The maximum processing travel: 300mm
The maximum feed depth: 5mm on one side (A3 steel)
Surface roughness: Ra3.2
Deviation from circular form<0.02mm
Gross weight of equipment: 98KG
Power supply: 110V60Hz
Voltage: 1500W
Boring bar length: 1600mm
Diameter: 30mm

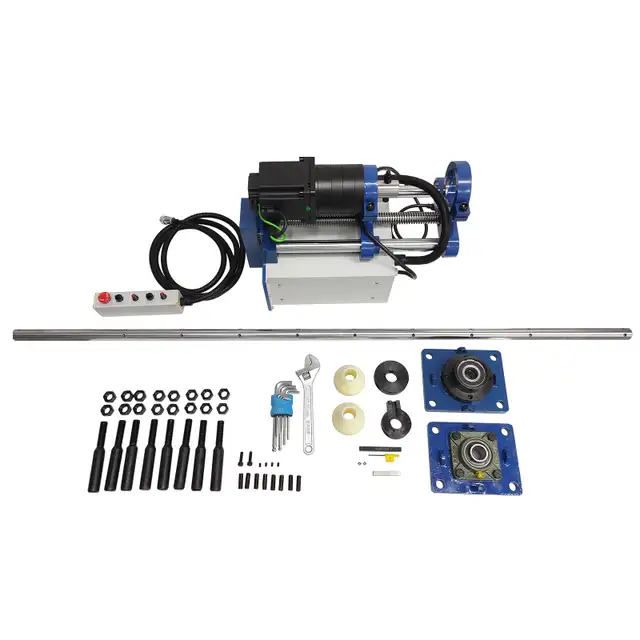

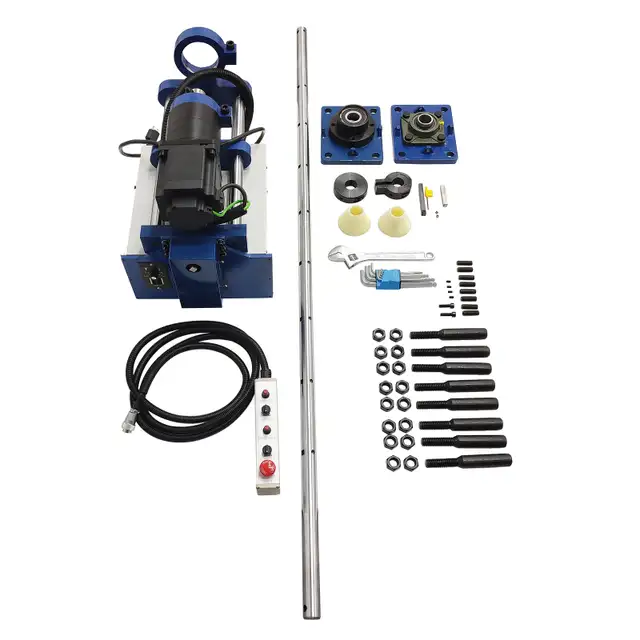

Packaging List
Host * 1
Remote control * 1
Boring bar * 1
Centering cone * 2
Knife holder * 1
Knife disc * 1
Bracket * 2
Support bolt * 8
Support bolt and nut * 16
Knife handle * 1
Blade * 2
White steel knife * 1
Wrench * 1
One set of hexagonal wrenches
Spare screws * 1 pack
