Item Number: 022740

Portable boring machine is a kind of portable processing equipment mainly developed for on-site maintenance of engineering, energy, and chemical equipment. It is mainly used for processing small pipe inner holes and concentric spacing holes. It is widely used in excavators, cranes, loaders and other construction machinery. In combination with the actual needs of on-site processing, our factory continuously improves the equipment structure. After continuous improvement and perfection, the newly developed XDT50 portable boring and welding machine is in a mode of high-end integration of multiple functions of hole welding, boring and end surface process at present. The operation of the equipment can be easily completed by one operator. The equipment is based on the site from the design concept to the processing. The actual operation difficulty of the workers is greatly reduced, making the maintenance personnel more handy.
Main application scope: post-welding processing of revolving holes, hinge holes, and shaft pin holes on various construction machinery structures, or addition of hole sleeves after reaming; excavators, loaders, presses, and cranes with the same core holes Repair and processing, the holes are arranged side by side, and the holes are positioned and processed at one time to ensure the coaxiality of the holes.

Parameters
Operating Voltage：AC 110V/50hz
Welding machine: European connector
(Note: The welding machine needs to be prepared by yourself)
Maximum welding hole diameter: Ф230mm
Minimum welding hole diameter: Ф60mm
Maximum boring diameter: Ф260mm
Minimum boring diameter: Ф35mm
Maximum processing stroke: 240mm
Maximum infeed depth: 3mm on one side (A3 steel)
Surface roughness: Ra3.2
Hole roundness error ≤0.02mm
Boring bar: 50*1500mm/50*600mm/30*1000mm
Welding bar: 30*1200mm/30*300mm
Power: 3KW
Work Environment
Ambient Temperature：-10℃～ 55℃
Storage temperature：-25℃～ 70℃
Relative humidity：≤85％

Features
1. Vertical servo motor. It has the characteristics of small electromechanical time constant and high linearity. Long service time, vertical structure, can work in narrow space position.
2. Small size, easy to carry. Flexibly used in various construction scenarios. Numerical control handle, parameters can be set, and start and stop of automatic processing do not need to wait. High operating safety factor.
3. Adjustable speed, automatic feeding of the boring bar can meet various needs.
4. Suitable for repair welding of rotating holes, hinge holes and shaft cutting holes of construction machinery.
5. On-site maintenance of concentric holes on excavators, loaders, forklifts and other machinery.
6. Processing and repair of large Marine crane and crawler hanging holes.
7. Boring of processing equipment that is difficult to move with conventional machine tools.

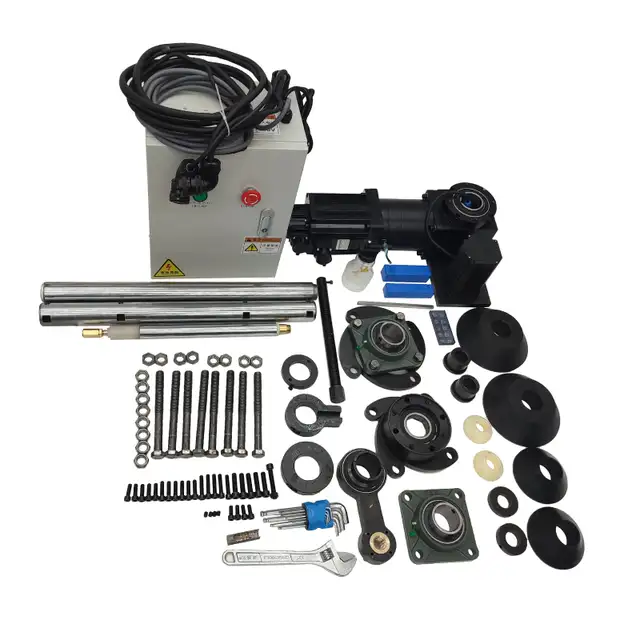

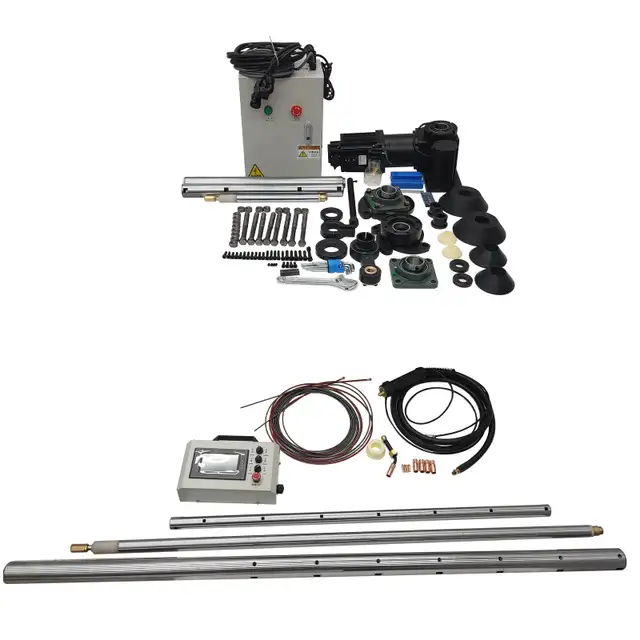

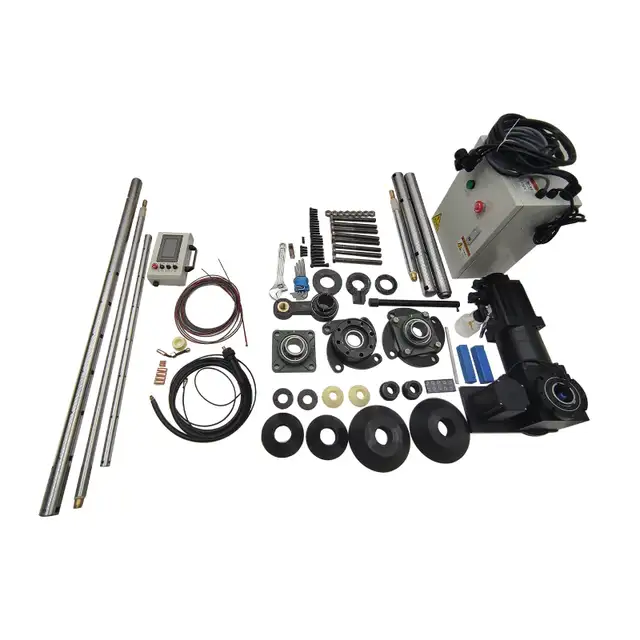

Packing list

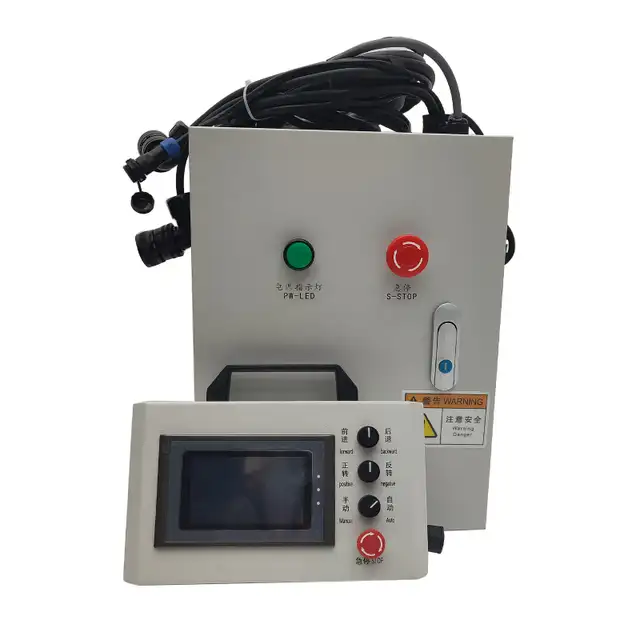

Electric box *1

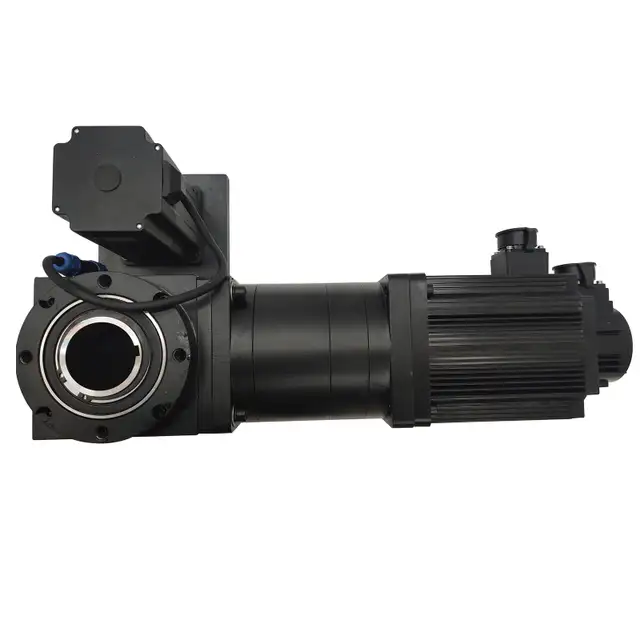

Main motor *1

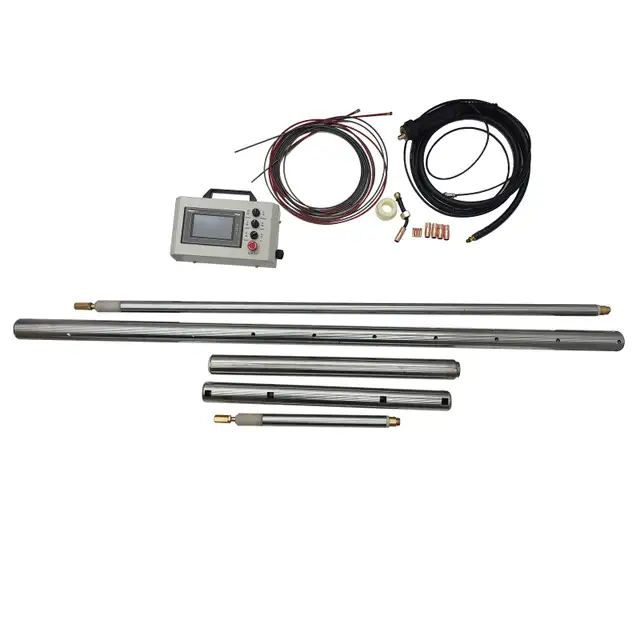

Boring bar *3
Welding rod *2
Hollow connecting rod *1
Numerical control handle *1

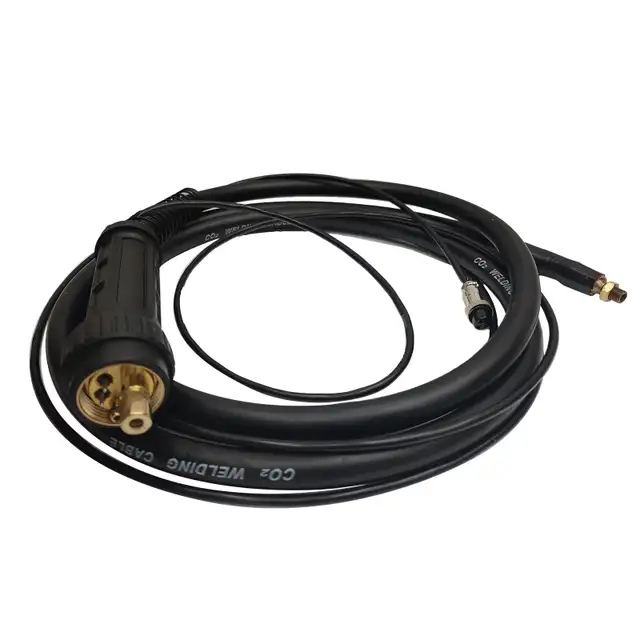

European welding torch *1
Wire feed hose *1 set
Centering cone *6
CNC blade *10
Shank *2 (12*12/16*16)
White steel knife *1
Support scale frame *3
Feed screw *1 set
Oil can *1
Knife rest *1
Cutter head *1
Lock *1
Allen wrench *1 set
Wrench *1
Support bolt *8
Spare screws *1 set
Welding rod center sleeve *1
