Gorgeous Vintage 35 (Old School) Watts Per Channel Pioneer Stereo Receiver with custom-built Cherry Wood Cabinetry, and high quality Phono Stage.

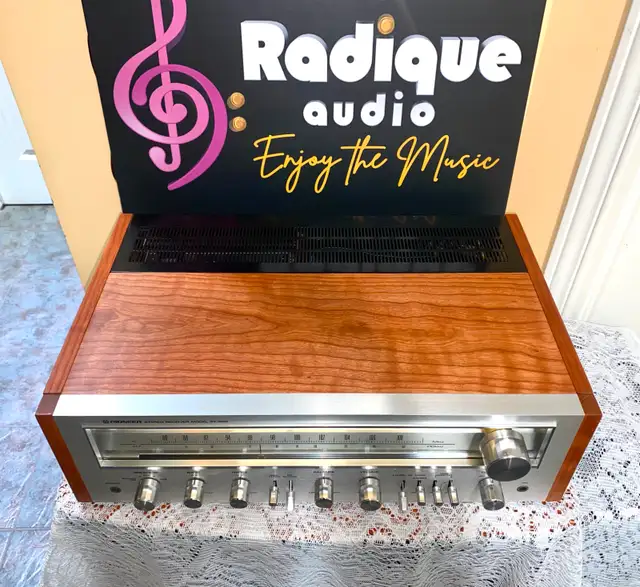

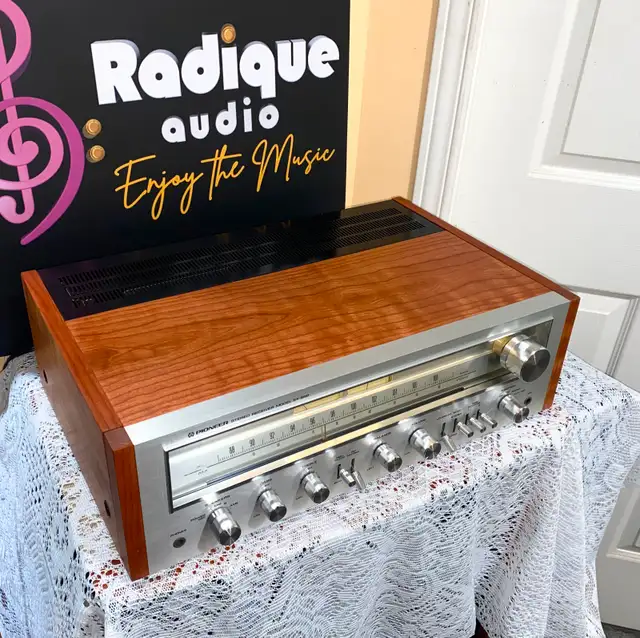

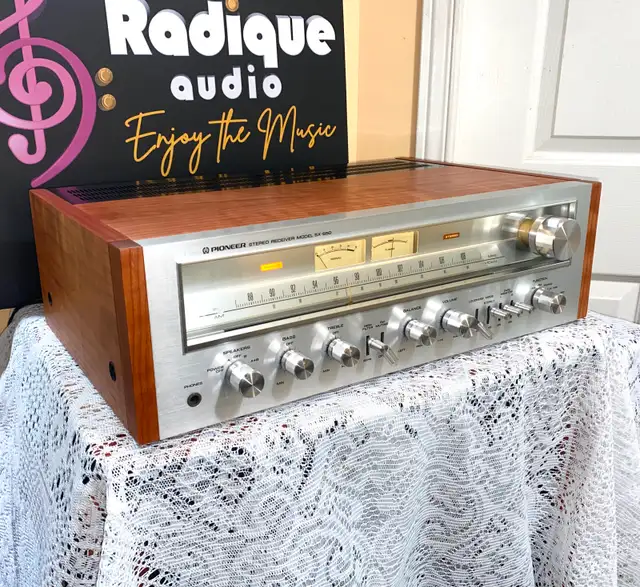

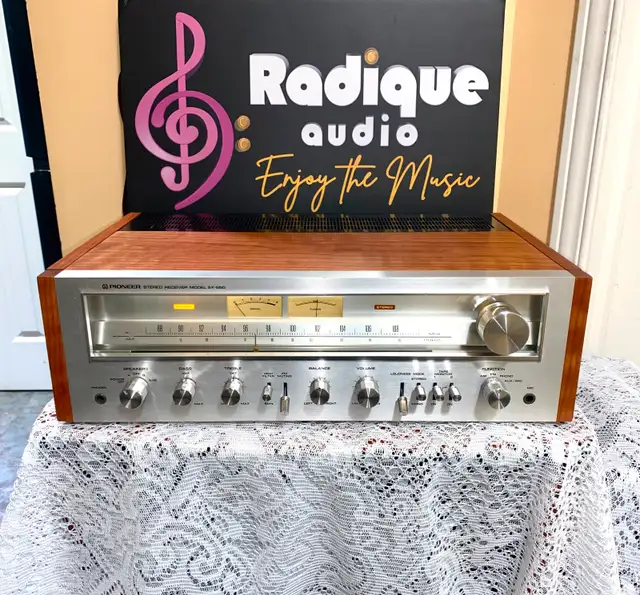

Has been serviced, and look fantastic with its brand new custom Cherry Wood Cabinetry and clean front face plates and controls in very good condition.

From Pioneer:

"Pioneer's SX-650 delivers an astonishing amount of state-of-the-art perfection. High-Medium Powered Stereo Receiver with FET FM Front End, PLL MPX, Precision Phono Equalizer, and Plus/Minus split power supply for OCL Power Amplifier.

The Pioneer SX-650 has click-stop tone controls with center-defeat positions, a high filter, tape-to-tape dubbing and more including a super-quiet phono equalizer with - 0.3dB RIAA precision and a big 200mV overload for wide dynamic range.

Note that the Pioneer SX-650 has high FM sensitivity and selectivity, PLL multiplex for superb stereo separation, and a special IC for AM to more than satisfy your requirements. Trust Pioneer to deliver what you need and then some - one-two-three in the SX-650."

This circa 1976 Pioneer has been freshly serviced and now both looks and sounds fantastic. This made in Japan component was manufactured during the heyday of silver faced receivers, and as a result, the original build quality was excellent.


Features:

High filter

FM muting

Two tape in/outs

One phono input

Aux/mic input

Tuning meter

Signal meter

Click-stop tone controls


Specifications:

Power output: 35 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.3%

Damping factor: 30

Input sensitivity: 7mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 70dB (MM), 90dB (line)

Output: 150mV (line), 30mV (DIN)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 1 x FET, 9 x IC, 21 x transistors, 29 x diodes

Dimensions: 19 x 6 x 14.5 inches, 480 x 149 x 371mm, Weight: 29 lbs, 13.1kg


Our photos can't do justice to the beautiful cherry wood customization on these vintage Pioneer's. Need to be seen and handled in person to be truly appreciated.

Includes soft copy of manual in PDF.


Asking $895; buy with confidence and benefit from Radique's "Bumper to Bumper" warranty and Perpetual trade back policy.

Please take a look at our other ads

Discounts:

5% off 2 pieces of stereo equipment
10% off 3 pieces
15% off 4 pieces
20% off 5 or more pieces

To view our other listings, please click the link "View poster's other Ads" at the far right, just below our phone number.
When you call please mention you found this ad listing on OKz.ca
