Item number: 054631

-

Scope of use:

1. Maximum test force :100kN

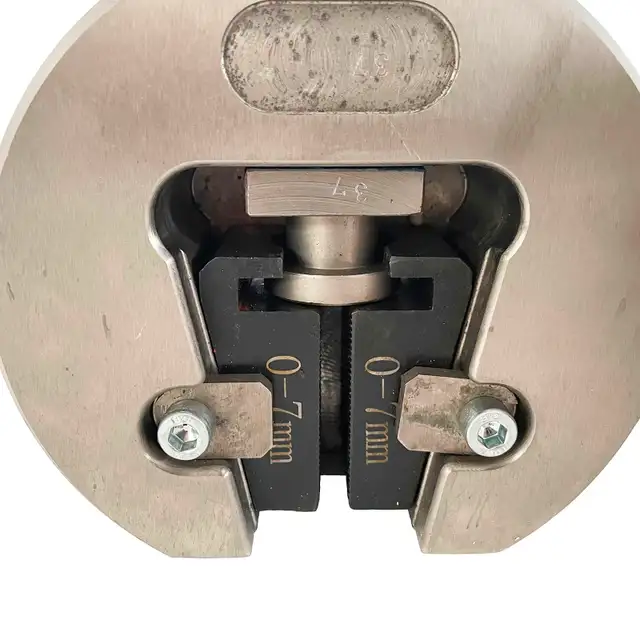

2. Plate: Flat jaw 0-7mm

3. Suitable for 100kN testing force electronic universal testing machine

Function description:

This fixture is suitable for tensile test of metal and non-metal plates, bars and other samples



Operation instructions:

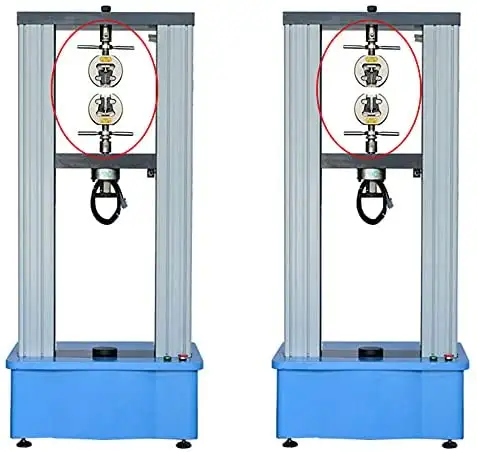

1. Install the clamp on the upper and lower joints of the testing machine, insert the bolts and tighten the nuts.

2. The handle of the upper clamping device should be moved first, which means that the clamping port should be opened properly, larger than the thickness of the sample installed.

3. Place one section of the sample between the pliers of the upper clamping device and place the sample in the center of the clamping device. Loosen the upper handle and clamp the upper end of the sample.

4. Return the force value to zero.

5. Lift the handle of the lower clamping device, adjust the height of the moving beam, insert the sample into the clamping port of the lower clamping device, and then release the lifting handle, which is the clamping sample of the clamping device.





Item Included:054631

The batteries jig(one set includes two pieces)*1
