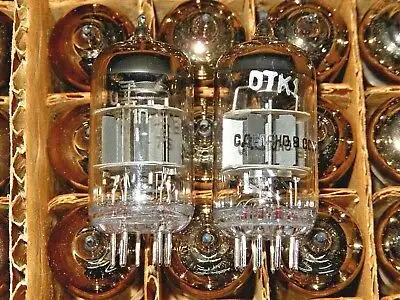

NOS (never used new old stock) 6N1P Russian Rockets
Made in the Voskhod, Kaluga
NOS=NEW OLD STOCK
Tube: 6N1P @ $30.00/Tube
HIGH - MU, DUAL, TRIODE
Made in the former USSR-RUSSIA
These are simply the best of the 6H1N / 6N1P tubes on the market. They have the highest quality and longest life of the 6H1N / 6N1P family of Russian tubes.
The 6N1P also known as a 6H1N tube requires a noval 9-contact socket.
E - for long - lived (5000 up to 10,000 hours and more) tubes.
V - for mechanically improved tubes.
They have chrome plated pins also.
The 6N1P vacuum tube is made in the Famous Voskhod military plant located in the city of Kaluga in Russia and has the Rocket (=>) logo on it.
It is a small signal dual triode intended for use as a line level amplifier or driver in high quality audio amplifiers.
Features include very low distortion, medium transconductance, higher plate voltage, dissipation rating and larger cathode than 6DJ8 types. Many sellers claim that 6N1P tube is 6DJ8/6922 equivalent.
Actually it is not completely true.
Basically the 6N1P has a higher heater current than the 6DJ8/6922.
Please refer to the datasheet and/or consult the equipment manufacturers about compatibility.
In some application these tubes can show very good results for just a fraction of 6DJ8's price.

The Russian inscription is " BN ".
"E" designator means ~ extended life
"B" designator means ~ improved mechanical construction).

The English inscription is " EB ".
E - for long - lived (up to 5000 hours and more) tubes.
B - for mechanically improved tubes.

Name ~ 6N1P-BN/EB
Type ~ Double triode, hi-durable, long-life
Application ~ application in pulse mode in special equipment

Cathode type ~ oxide, indirect heating
Envelope ~ glass, miniature
Mass ~ 15 grams
Filament voltage ~ 6.3 Volts
Filament current ~ 0.006-0.009 Amps
Anode voltage ~ 250 Volts
Anode current ~ 0.006-0.009 Amps
Anode power ~ 2.2 Watts
Steepness ~ 3.8-5.1 mA/V
Reverse grid current ~ 0.2 uA
Microphonic noise ~ 50 mV
Gain ~ 28.0 - 42.0
Socket type ~ RSH8

$30.00/tube
