Item number: 056791
-
Product Overview

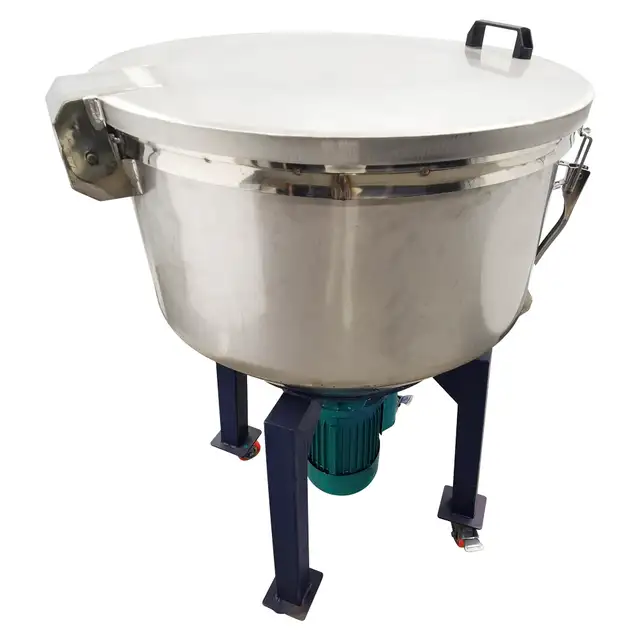

The vertical color mixing machine adopts the vertical blade vortex type low-speed or high-speed operation, which makes the raw materials roll at high speed and collide with friction to generate heat, so that the material can be mixed with water and the water can be quickly evaporated to achieve the purpose of drying; it can also be used for mixing wet materials. It is widely used in plastics, powder, metallurgy, ceramics and other industries.

Product Parameters
Voltage: AC110V 60Hz
Power: 1.5KW(2HP)
Phase number: Single phase
Mixing tank capacity: 110LB(50kg)
Rotational speed: 60rpm
Thickness of mixing barrel: 0.06"(1.5mm)
Material of mixing barrel: SUS304 stainless steel

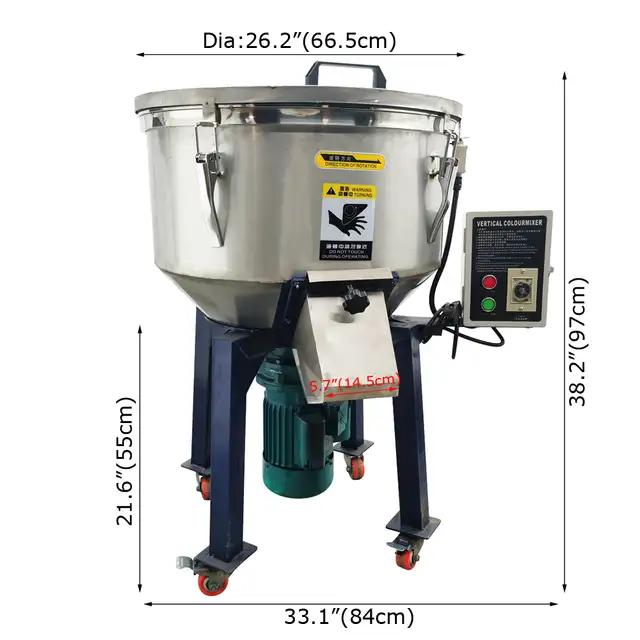

Packing size: 36.6"*33.9"*45.7"(93cm*86cm*116cm)
Net weight/Gross weight: 174.2LB(79kg)/251.3LB(114kg)
If you need other capacity specifications, please contact us.

Product Features & Advantages

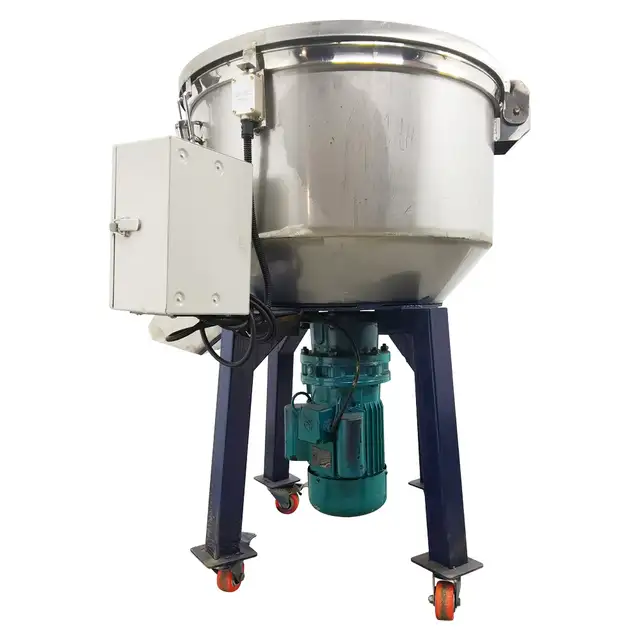

1.Motor
The motor adopts cycloidal pinwheel deceleration motor, pure copper core motor, strong power, low working noise, maintenance-free, long life,and can work continuously for a long time.
2.Fastener
There are four fasteners designers around the mixing tank, which can firmly fix the cover when the machine is running,prevent the material from leaking out, and ensure work safety.
3.Outlet
Widening and lengthening the outlet,trapezoidal design, good sealing,faster discharge and no dispersion; loosen the lock and pull the gate to discharge the material
4.Universal Casters
The four supporting legs of the machine are equipped with universal casters,which can be moved flexibly and easily. The casters have a locking and fixing function to prevent movement.

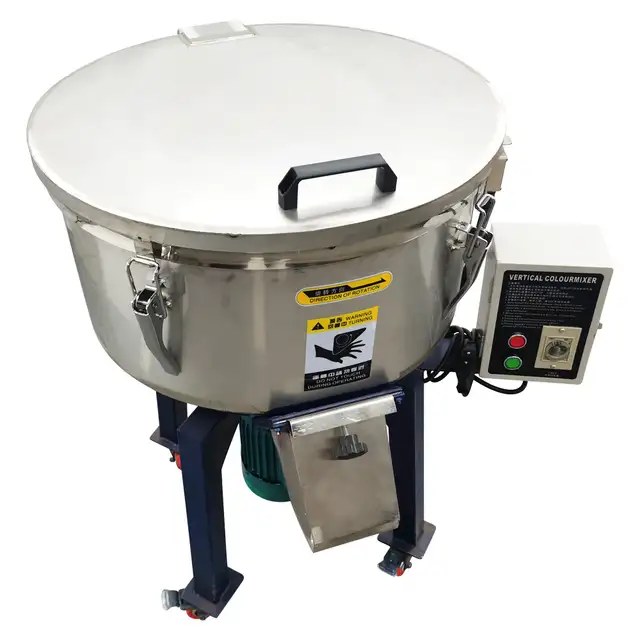

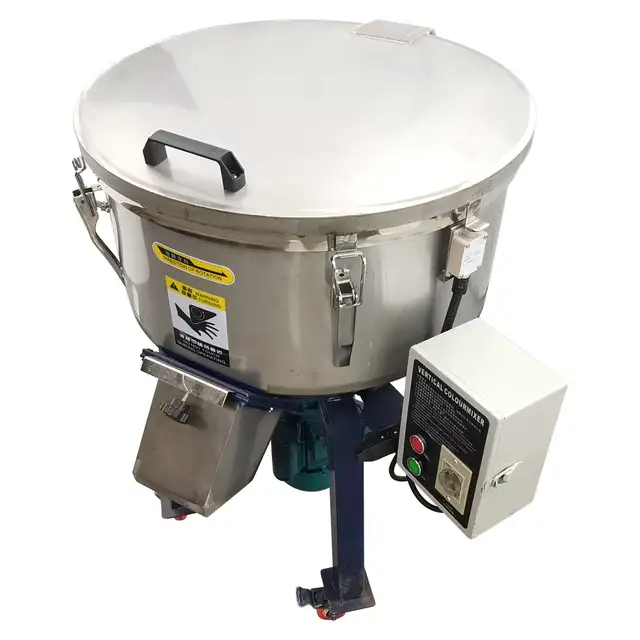

5.Control Panel
The control panel integrate three functions of start, stop and timing. Connect the three wires of the air switch to the three fire wires to start it. The operation is simple and saves worry and effort.
6.Protection Switch
The machine is designed with a travel protection switch. Once the cover is accidentally opened,it will automatically disconnect the circuit and stop working to prevent accidents.

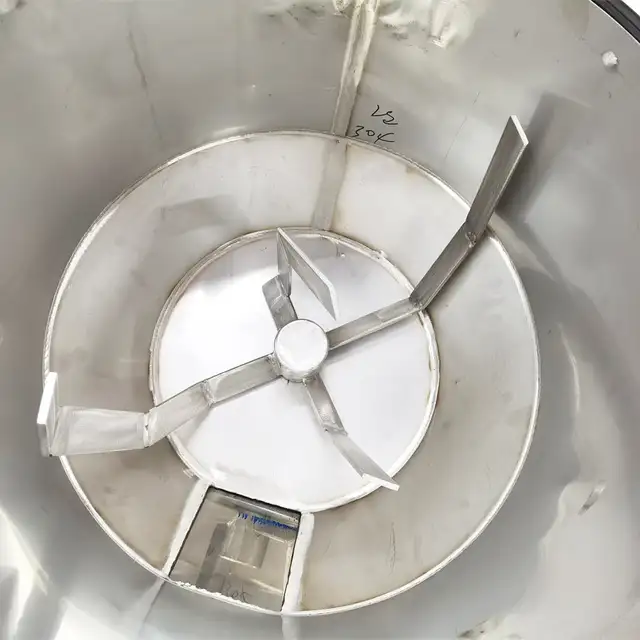

7.Stirring Blade
The vertical stirring blade has a scientific and reasonable structure, which can fully stir the material while reducing the load to minimum, saving electricity, and the shape of the blade can also be customized.
8.Wide Application
Wide range of application industries, dry and wet materials, as well as coarse particle, fine particles,power and other materials can be stirred, and the size and model of the machine can be customized.

- The mixing barrel is polished, with high finish and easy to clean.
-Complete uniform mixing in a short time, low energy consumption and high efficiency.
- The bracket and the fuselage are all welded, and the structure is firm.

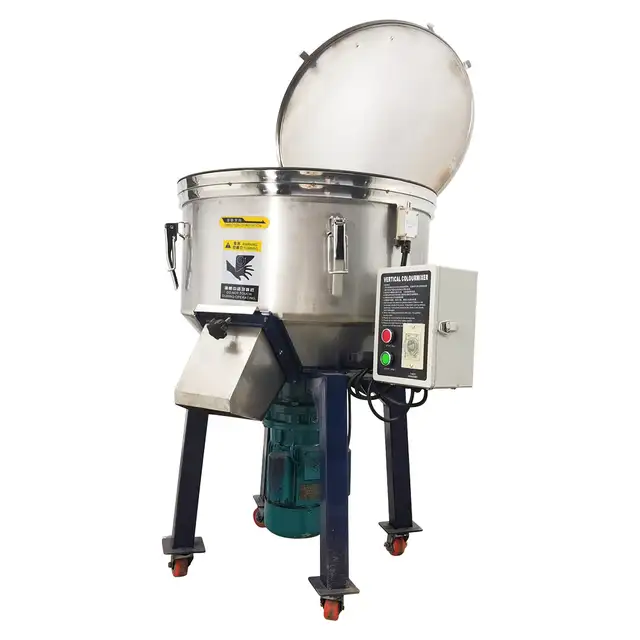

- The bucket cover adopts a two-stage folding design and is equipped with a handle, which is convenient to open and observe at any time.
- The lid and the bottom of the barrel are stamped and formed at one time, which is more durable.
- The motor has an overload protection function, which will disconnect the circuit when overloaded to protect the motor.


Item Included(056791)
Blender Mixer *1
