Item number # 022160
*This machine is installed by fixed clamping, and uses different tool rest according to different diameter ranges. Please confirm the diameter of processing hole before use to select the appropriate tool rest.
*Please read the operation instruction carefully before using the machine, and check all the items according to packing list to know about operation safety precautions, machine performance, and usage specifications.
-
Features
1.By adopting 110V continuous current motor with characteristics of low-speed of revolution and high torque, the complete machine can realize stationary machining in superior performance.

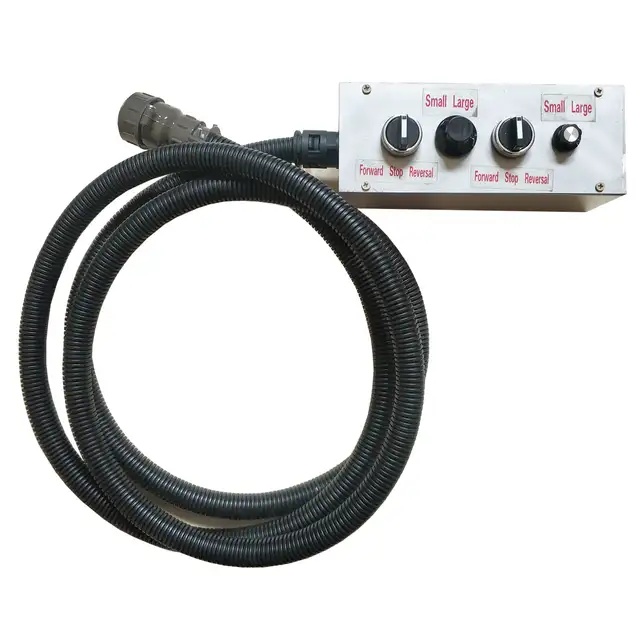

2.Feeding and processing can realize electrodeless speed regulation. Feeding process can be set according to demands, and processing can automatically stop after reaching the limit switch.
3.Boring bar adopting high-strength alloy and structural steel is featured with high hardness, high accuracy, high tenacity, good abrasion resistance, etc.
4.The boring bar can be disassembled separately to make installation convenient.
5.The control cabinet is installed below the main engine to be beneficial to safety operation.
6.Electric motor controller is equipped with dynamic delay brake program to avoid vibration in shutdown.
-
Main Technical Parameters:
The maximum processing hole diameter: Ф260mm
The minimum processing hole diameter: Ф55mm
The maximum processing travel: 380mm
The maximum feed depth: 2mm on one side (A3 steel)
Surface roughness: Ra3.2
Deviation from circular form≤0.02mm
Gross weight of equipment: 95.65KG
Rotate speed: 0-83RPM

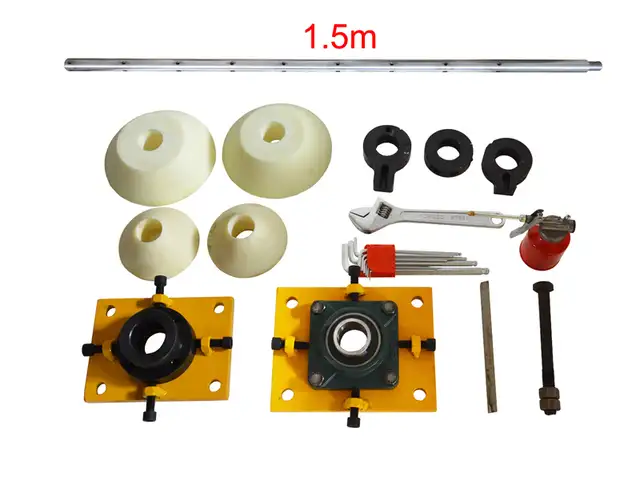

Boring bar: 50*1500MM
-
Item Include(022160)
A set of hole drilling machine XDT-50
Two carton packing

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
