LIKE NEW CONDITION
BARELY USED.......ON SKID READY FOR PICKUP

1-1/4” BLADE
5 HP (3.75 kW) BLADE DRIVE
DIRECT DRIVE HEAVY DUTY PLANETARY GEARBOX
ELECTRONIC VARIABLE BLADE SPEED

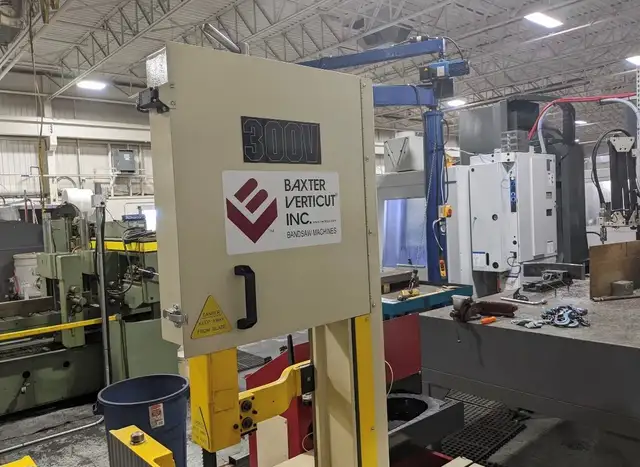

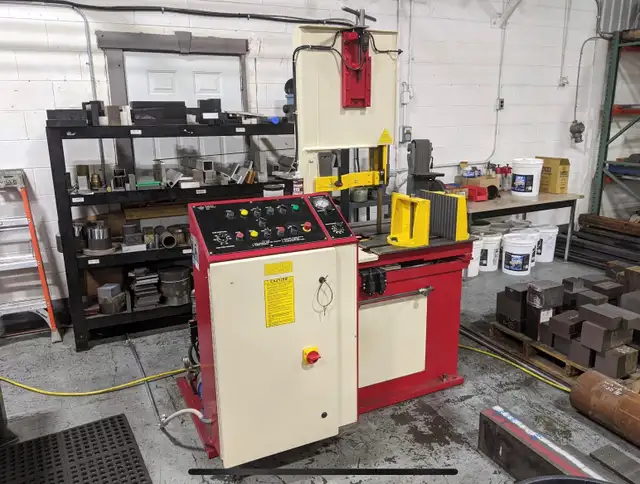

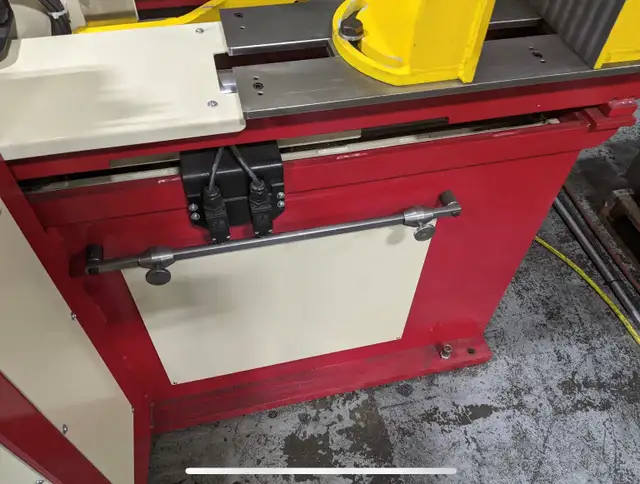

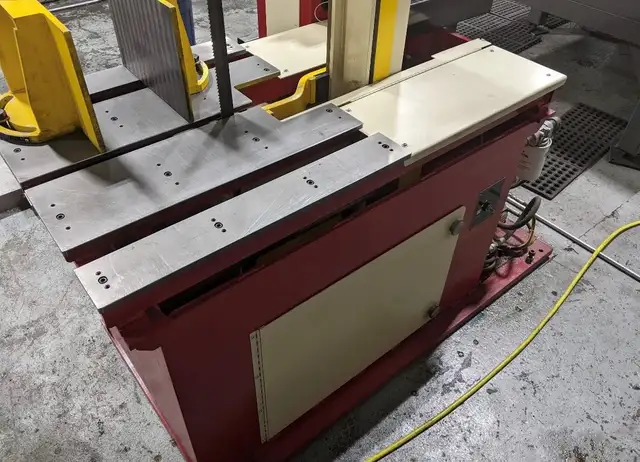

VERTICUT® MODEL 300V VERTICAL BANDSAW

CUTTING CAPACITY

Round 12" (300 mm)
Rectangular 12" x 14" (300 x 360 mm)

SPECIFICATIONS

Blade Size 1 1/4" x 14' 6” (32 mm x 4420 mm)
Blade Speeds 60 to 400 ft/min (18 to 122 m/min)
Blade Tension 25,000 psi (172 MPa)
Table Height 35" (890 mm)
Maximum Workload 3,000 lb (1360 kg)
Machine Weight 1,900 lb. (861 kg)
Overall Dimensions 99” x 48” x 80”(2514 mm x 1219 mm x 2032 mm)

DRIVE

Blade Drive 5 Hp (3.75 kW)

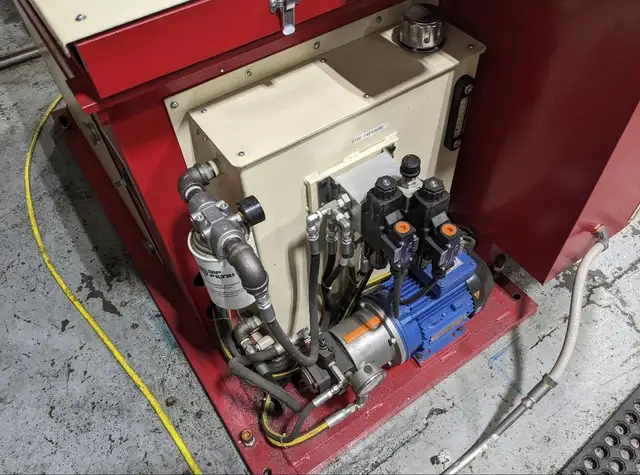

Hydraulic Drive 2 Hp (1.5 kW)
Voltage available (single phase) 460 Volts, 3 phase, 60Hz

FEATURES INCLUDED AS STANDARD EQUIPMENT

• Blade is oriented vertically.
• Machine movement is on linear bearing to provide maximum rigidity and smooth motion.
• The saw head feed utilizes a load sensing valve which stops the feed if the blade starts to over-
load, typical when cutting the web of structural shapes.

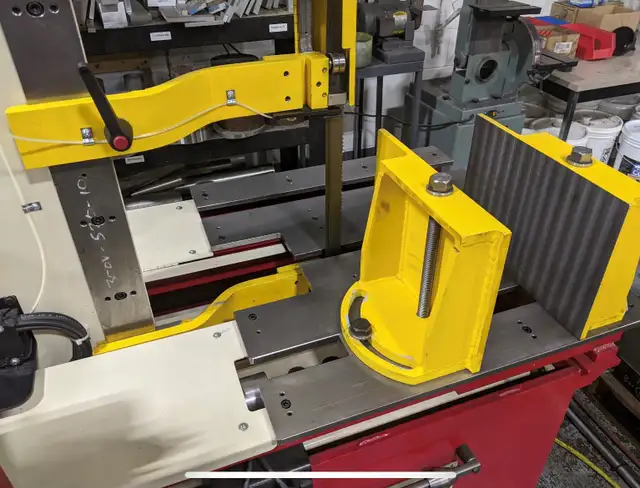

• Blade Guides are carbide faced with roller to remove blade twist and dampen vibration.
• Magnetic motor starter with automatic shut off at the end of cut, motors thermal overload protection.
• Blade is preloaded to optimize cutting.

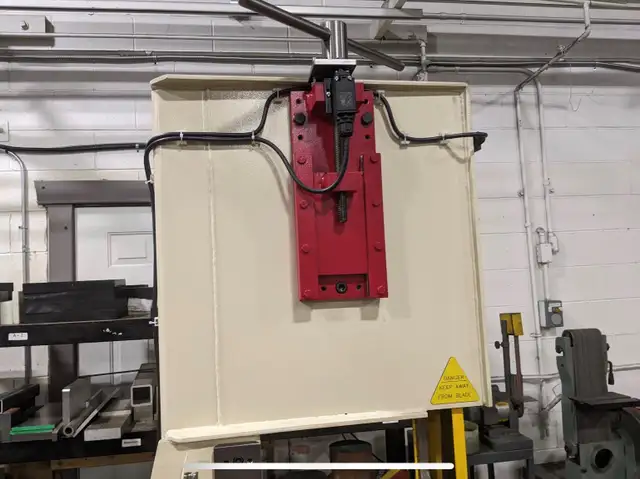

• Blade tension is adjusted manually.
• Blade drive system consists of a direct drive, high efficiency planetary geardrive. Blade speed
controlled with a variable frequency drive.

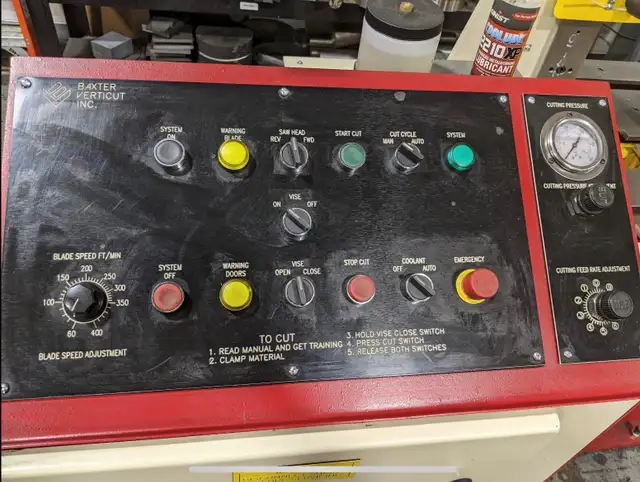

• Manual saw forward, saw retract, saw cut, vise open/closed.
• Controls are to the rear of the machine.
• Blade breakage switch.
• Ductile iron wheels.
• Mist coolant system.
• Electrical system uses only C.S.A./UL approved components and is electrically approved.
• Premium quality bimetal bandsaw

Very low hours (50hrs)
Is in like new condition.
Few blades included.
Can be seen under power.

Note:
As per Baxter Verticut there are no 300V's scheduled to be built this year.
Last price listed for this model was $30,995.00 CAD.
