Model # CTG-08

Digital Coating Thickness Meter, Built in F NF Probes
Model Number: CTG-08, only 4 in long and 58 g! Excellent tool!
0.0-1250 um/0.0-50 mil, Calibration foils.


Highlights

Standards: ISO2178, ISO2316, DIN, ASTM and BS.
The F probe measures the thickness of non-magnetic materials such as paint, plastic porcelain enamel, copper, zinc, aluminum, chrome etc. on magnetic materials such as iron, nickel and etc. It is often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper, and etc.
The NF probe measures the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder applied to aluminum, brass, non-magnetic stainless steel, etc.
Automatic substrate recognition
Switch between Single and Continuous Measuring Mode
Auto Power Off
Metric/Imperial convertible

Specifications:

LCD display : 4 digits, 10mm LCD
Coating thickness range : 0.0 - 1250 um/0.0 - 50 mil
Resolution : 0.1 um (0 - 99.9 um) ; 1 um (over 100um)
Accuracy : ± 1 - 5% n or 3.5 um or 0.1 mil (whichever is greater)
Power supply : 2 x AAA batteries
Operation Temperature : 0 - 50°C
Operation Humidity : below 80%
Dimensions: 102 x 35 x 23 mm (4 x 1.37 x 0.9 inch)
Weight : 58.6 g, 0.13 lb, 2 ounce (including batteries)

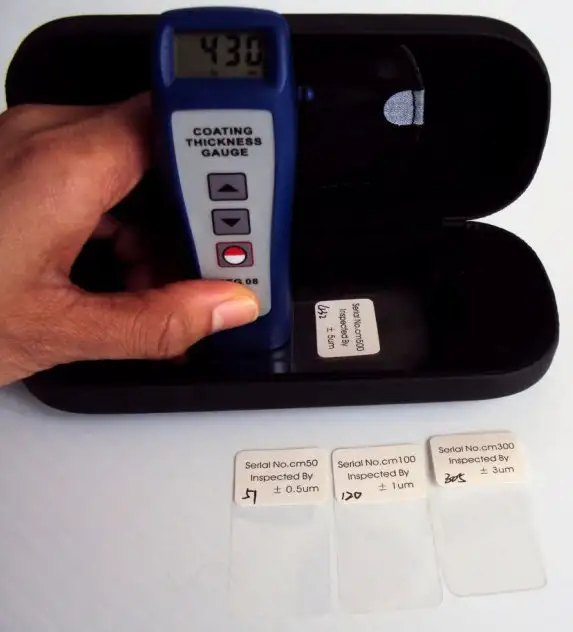

Standard Delivery

1 Coating thickness gauge (main unit)
1 Black storage case
4 Calibration foils
1 Aluminum substrate
1 Iron substrate
1 Operation Manual
