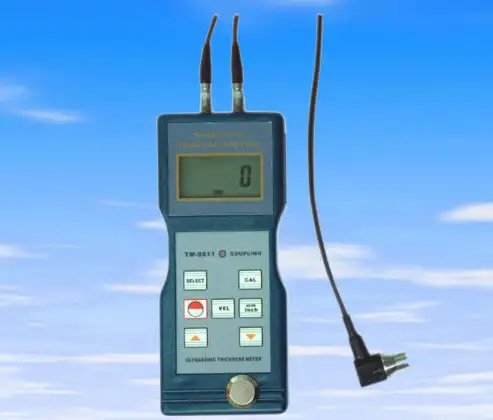

Digital Ultrasonic Thickness Meter

Order # TM8811



Features:

Range: 1.5~200mm/0.06~8 in

In/mm switchable

Large easy-to-read, graphics LCD

Can be used on rough surfaces

Automatic Material Calibration

Auto power off

Wear resistant probe tip



Specification:

Lower Diameter Limit of Pipes:
Ø15:2.0mm,Ø20:3.0mm
Determined By Transducer

Range: (1.5-200)mm/( 0.06-8) in

Display: 4 digits, 10 mm LCD

Resolution: 0.1 mm/0.001 inch

Accuracy: ± (0.5% n 0.1)

Sound Velocity: 500 - 9000 m/s

Power Supply: 4 pc 1.5V AA Batteries

Operating Temperature: (0-50)°C (32 -122) °F

Operating Humidity: < 80%

Dimensions: 6 1/4 x 2 3/4 x 1 ¼ in (160 x 68x 32 mm)

Weight: 208 g (without battery)

Optional Accessories:
* 6MHz:6mm thin material probe: Measuring range(steel): 1.0-50.0mm, operating
temperature: -10~ 60°C
* 5MHz:12mm high temperature probe: Measuring range(steel): 1.0~225.0mm(normal
temperature); Measuring range(steel): 4.0~100.0mm (high temperature), operating
temperature: -10~ 300°C



Applications:

Steel

Cast Iron

Aluminum

Red Copper

Brass

Zinc

Quartz Glass

Polyethylene

PVC

Gray Cast Iron

Nodular Cast Iron

Ceramics

Plastic

Other Materials with good ultrasonic conductivity

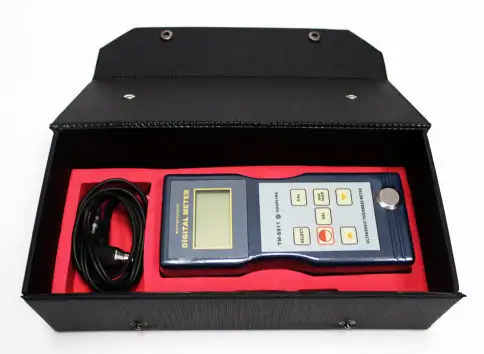

Standard Delivery:

1 pc Thickness Meter

1 pc Ultrasonic Sensor

1 pc Carrying Case with Handle

1 pc User Manual

1 pc Bottle of Glycerin
