Item number: 056327
-

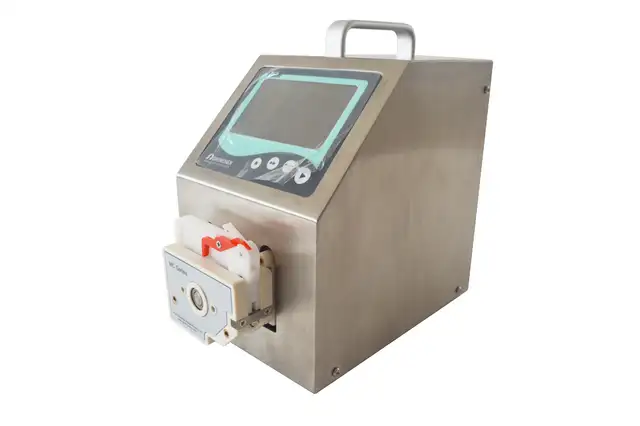

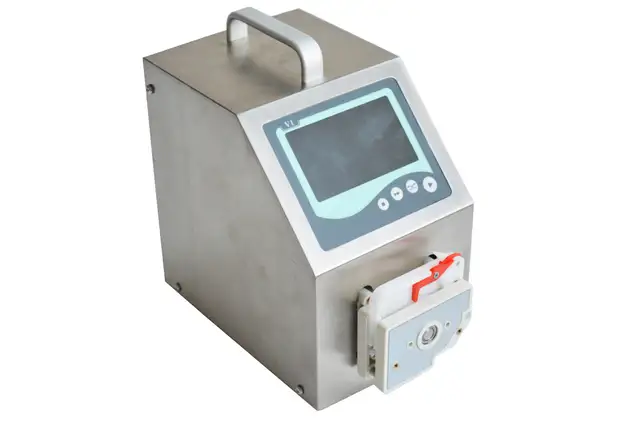

Intelligent flow type peristaltic pump, industrial grade 4.3 inch true color LCD display, touch screen control, speed range: 0.1-150 RPM, flow range: 0.000067-570 ml/min; Animation display transmission status, flow data, setting parameters, system configuration with the same screen display; With intelligent calibration and online fine-tuning functions, three metering modes: quantitative metering, timing quantitative, timing start and stop meet various complex transmission and distribution requirements.

Parameters:
Actuator: V1

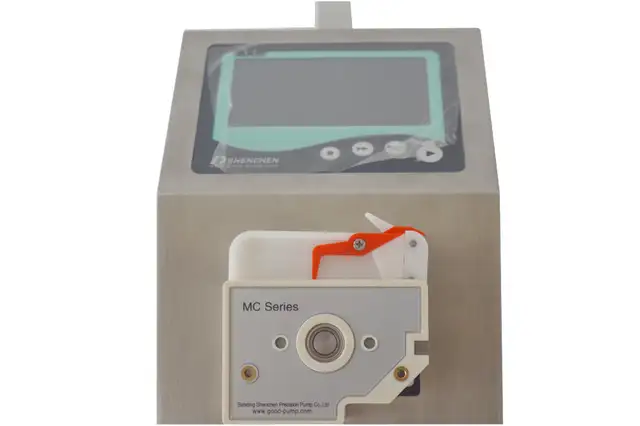

Pump head: Mc-m 6R
Flow range: 0.000067-570 ml/min
Speed range: 0.1-150 R/M
Rotational speed resolution: 0.01R /M
Velocity resolution: 0.01 microlitre
Flow accuracy: < ±0.5%
Outlet pressure: 0.86~1.0mm wall thickness hose: 0.1mpa; 1.6-2.4mm wall thickness hose: 0.1-0.27mpa
Back to the suction point: 0-360 degree
Motor type; Stepping motor
Circuitry: Shenchen-N-CIR
Control program: Shenchen-N-EMB

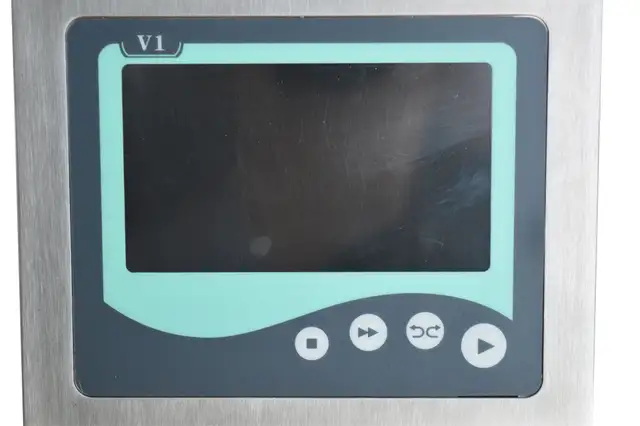

Display usage: 4.3 "Industrial grade true color LCD
Speed adjustment mode: Digital knob
External control speed control signal: 0-5V
Start stop, reverse signal: Passive switching signal, such as foot switch; Active switching signal: 5V, 12V, 24V optional
Communication interface: RS232, RS485 Support Modbus protocol (RTU mode)
Drive weight: 5.02kg(11.1lbs)
Ip code: IP31
Relative humidity: < 80%
Environment temperature: 0-40 Degrees Centigrade
Consumed power: < 40W
Applicable to the power supply: 110V±10% 60Hz
Operation mode: Touch screen and film button

Product features & advantages
1.The original import 4.3 inch - industrial grade - true color LCD screen, clear picture quality, quality more guaranteed.The animation displays the real-time working status, and the same screen displays the liquid velocity, motor speed, setting parameters and system configuration.Original imported touch screen operation, high hardness, scratch resistance, high sensitivity, and emphasis on user experience -- "touch and go".Stepper motor drive, precise control.

2.The shenchen-v-cir circuit system all adopts original imported chips, with high computing speed, reliable performance and stable operation.Shenchen-v-emb operating system, embedded software design, powerful functions, strong control, friendly interface, pay attention to user experience.intelligent calibration function, can be the flow or distribution of liquid volume calibration, ensure the flow accuracy, suitable for high-precision transmission of liquid.

3.Quantitative measurement function: after this function is turned on, the peristaltic pump will automatically measure and transfer the total liquid volume, and the flow rate can be changed at will during the working process. When the infusion volume reaches the set value, it will automatically stop.It is suitable for laboratory dosing or quantitative dosing in chemical reaction.

4.Timing and quantification function: after this function is turned on, the peristaltic pump transmits the amount of fixed liquid within a set time, which is suitable for the liquid packaging in the laboratory or industrial production line.Regular start and stop function: the start and stop time of the pump can be set at will to realize automatic control.

5.Rich external control functions, in addition to the conventional start and stop, direction, speed control and RS485 RS232 communication interface, shenchen-v-emb-pgm programmable external control functions, to meet the special industrial control requirements.Quick filling function, can not only clean the hose, but also can quickly fill the pipe with liquid.Automatic temperature control system, effectively reduce fan noise.Power off memory function, timely storage of data, safe and reliable.

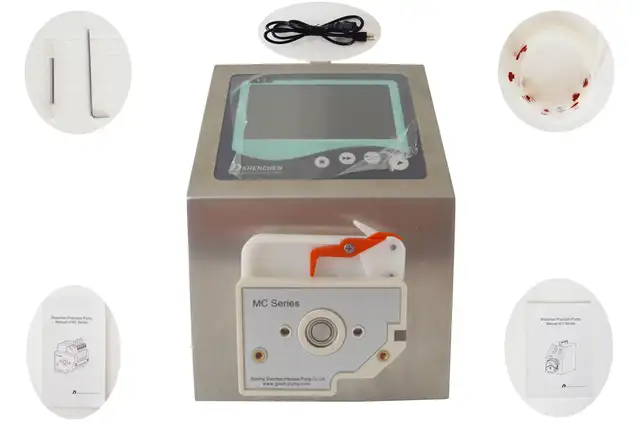

Item Included: 056327
Peristaltic pump X1
Us standard plug X1
2mm (inside diameter) *1mm (wall thickness) hose X2
2.4mm (inner diameter) *0.8mm (wall thickness) hose X2
Tool X2
Manual X2
