Item number: 023032
-

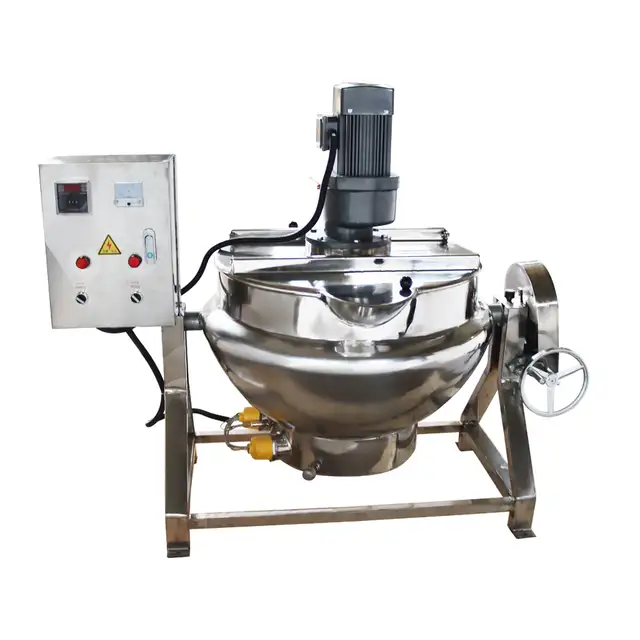

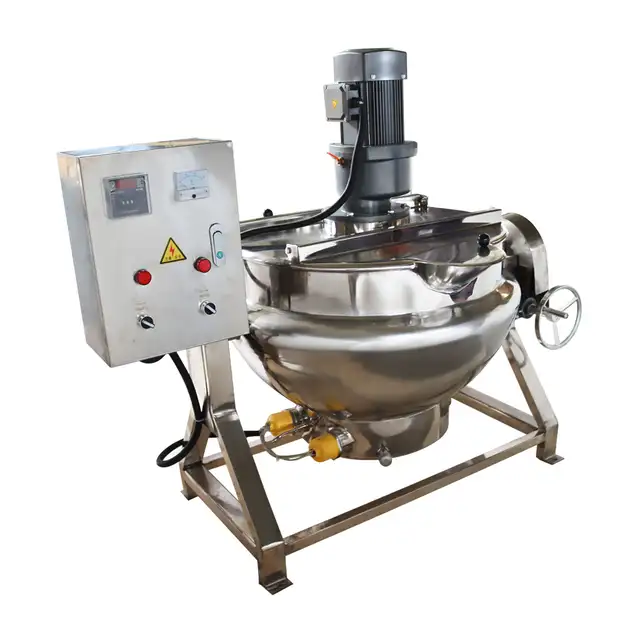

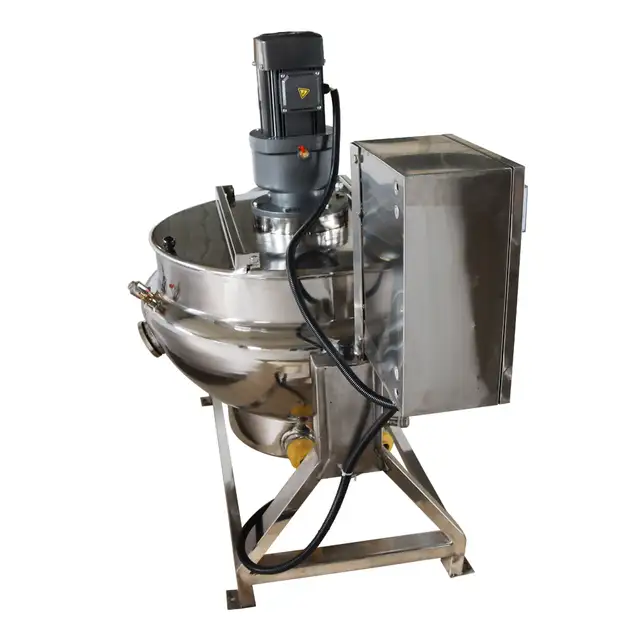

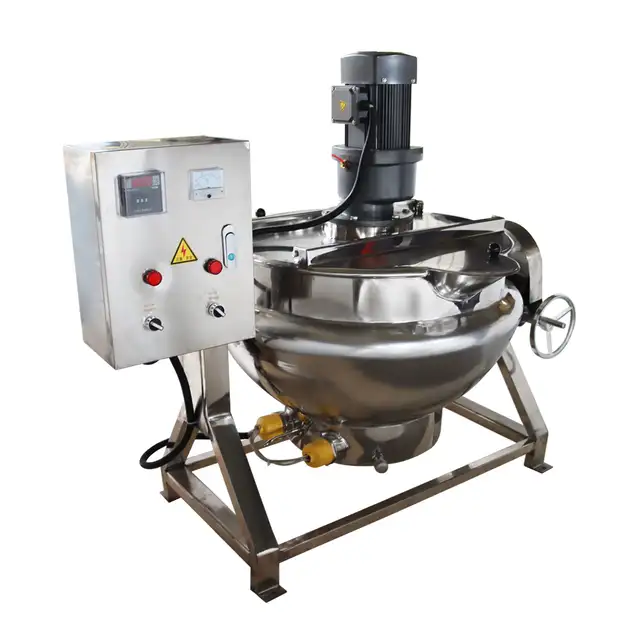

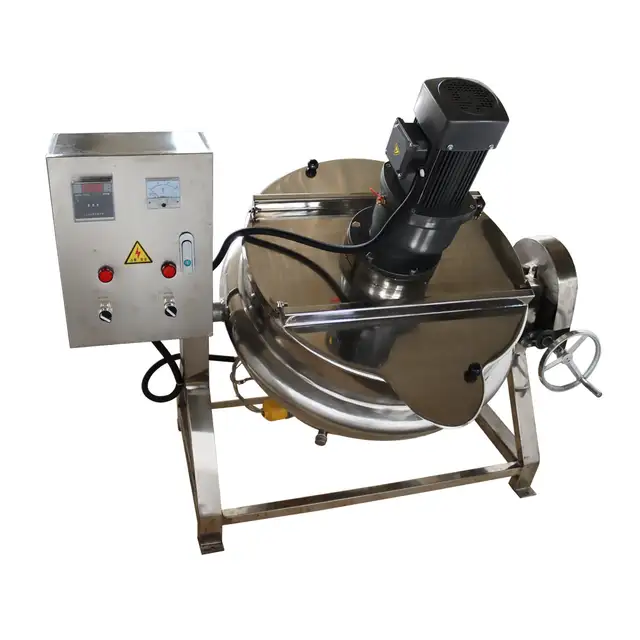

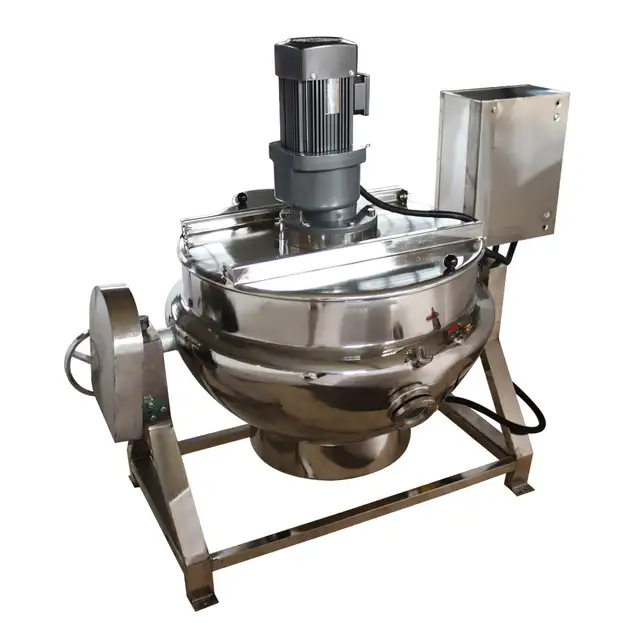

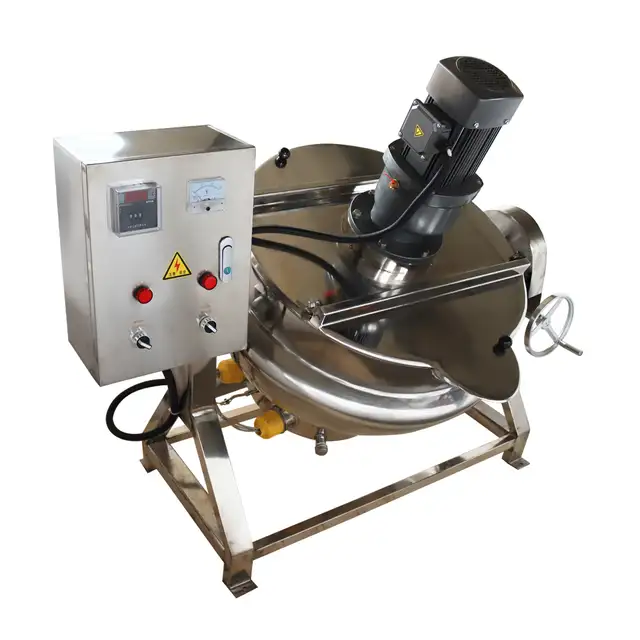

Sandwich pot also known as steam pot, cooking pot, sandwich steam pot. It usually consists of a pot body landlegs. The pot body is a double-layer structure composed of the inner and outer spherical pot bodies, and the middle layer is heated by steam. There are fixed, tilting, mixing and other styles. Sandwich pot is widely used in the processing of all kinds of food, can also be used in large restaurants or dining halls to boil soup,cooking vegetables, stew meat, porridge, etc., food processing to improve the quality, shorten the time,improve the working conditions of good equipment.

Parameters
Voltage: 220V 60HZ 3 PHASE
Electric heating power: 12 KW
Motor Power: 1.1KW
Volume: 100L 26.5Gallon
Youdaoplaceholder0 rate: 24 r/min
Maximum working pressure: atmospheric
pressure
Maximum operating temperature: <180 degrees in
the pot &sandwich <250 degrees

Feature

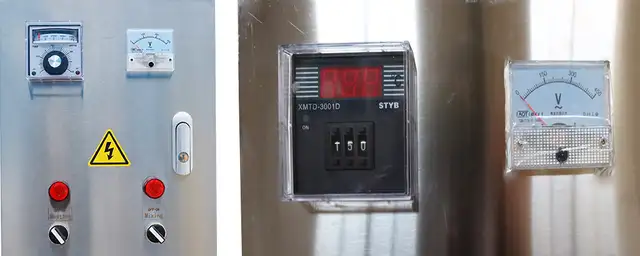

Electric control panel

Equipped with digital display temperature controller,controllable temperature control, two heating controllers, which can be used for single or simultaneous heating.

Four scraper plates made of teflon material
The agitator is made of polytetrafluoroethylene material scraper and equipped with four. During the rolling and stirring process of the material, the agitator fully contacts the pot body in all directions, ensuring no mixing dead corners

Rotary handle
The rotary handle controls the inclination, and the pot body can be tilted by 90 degrees. The lever principle is adopted, and the operation is convenient and simple

Heating mode
Electric heating mode, large heating area,uniform heating, high thermal efficiency,and easy controlof heating temperature


Instructions
1. Before using the machine, please check the hot oil level and make sure that has reached the specified oil
level.

2. Clean the pot and put the material into the pot.

3. Before starting the machine, please open the exhaust valve.

4. Turn on the gate and close the filling valve. You can let the body of the pot be tilted and discharge the material by tilting the sandwich pot and turning the hand wheel.

Note:Due to different production batches, the color or style of the motor and accessories may vary slightly. We will ship them randomly.

Scope of application
Sandwich pot is used in hot pot bottom cooking, marinated products, meat processing, lotus paste, sauce,prepared food and daily chemical industry. The cooking of ejiao, mixing and combining in pharmaceutical industry, and processing in meat products, stir-fried filling, sauce, prepared food, candy, pharmaceutical,dairy, beverage, canned food and other food industries.

Item Included (023032):
1*Jacketed Kettel 100L 220V 60Hz
