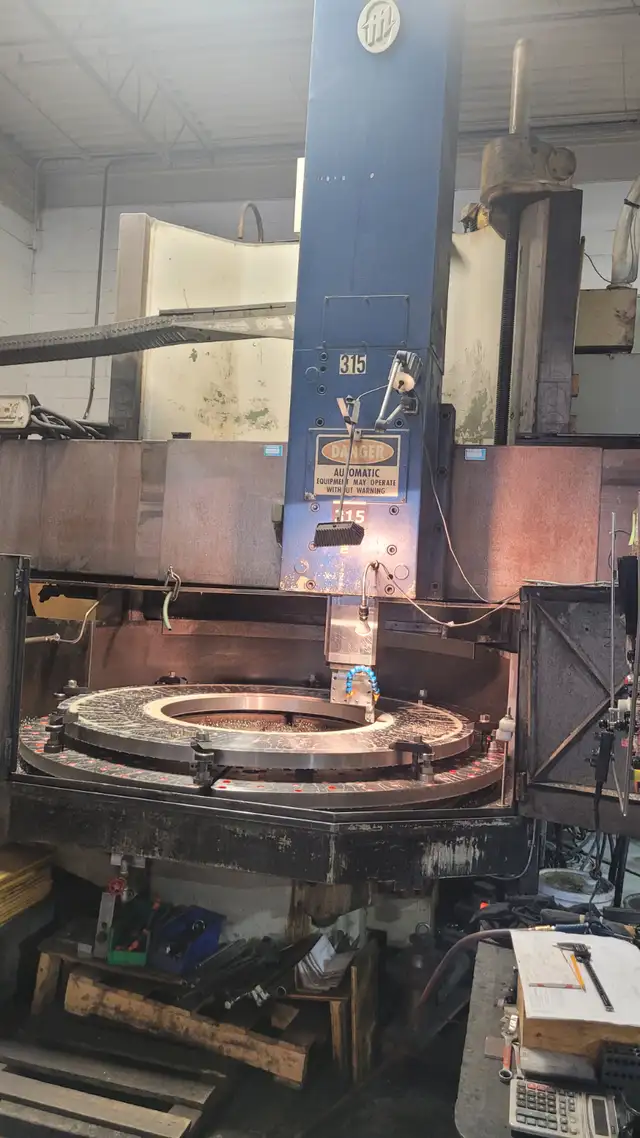

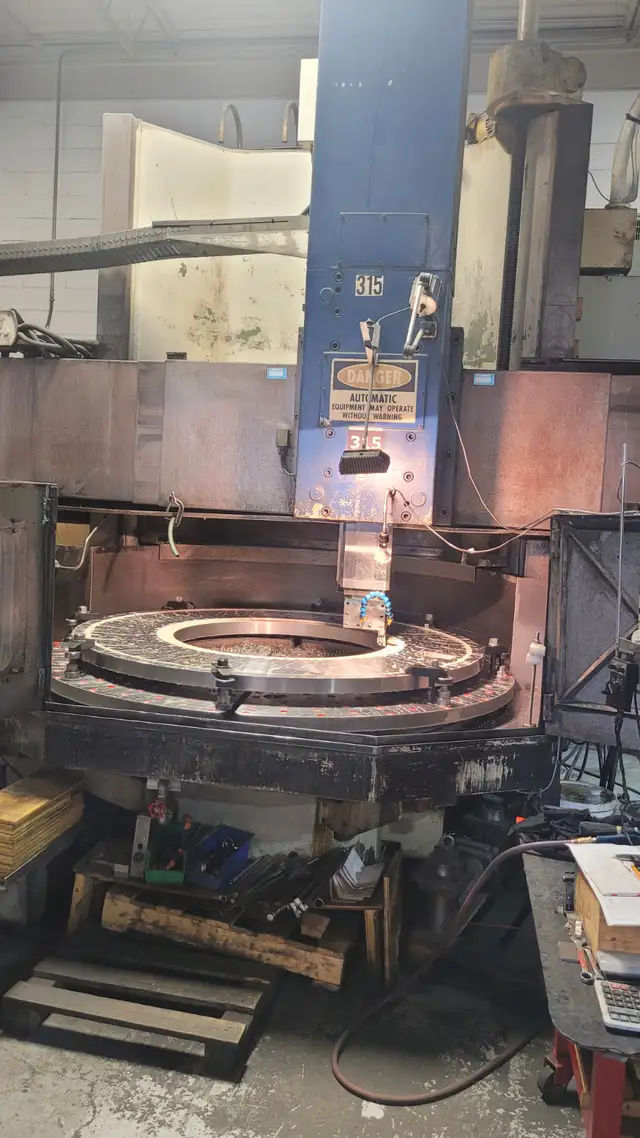

1 ONLY USED CNC Vertical Boring Mill
MAKE OM
MADE IN JAPAN
Year: 1989
Model: VT5-16N


Chuck / Table Dia 63"
Swing 80"
Work Ht-U/R 62.99"
Maximum Turning Length 63 in
RPM 275 RPM
Power 75 hp
Equipped With

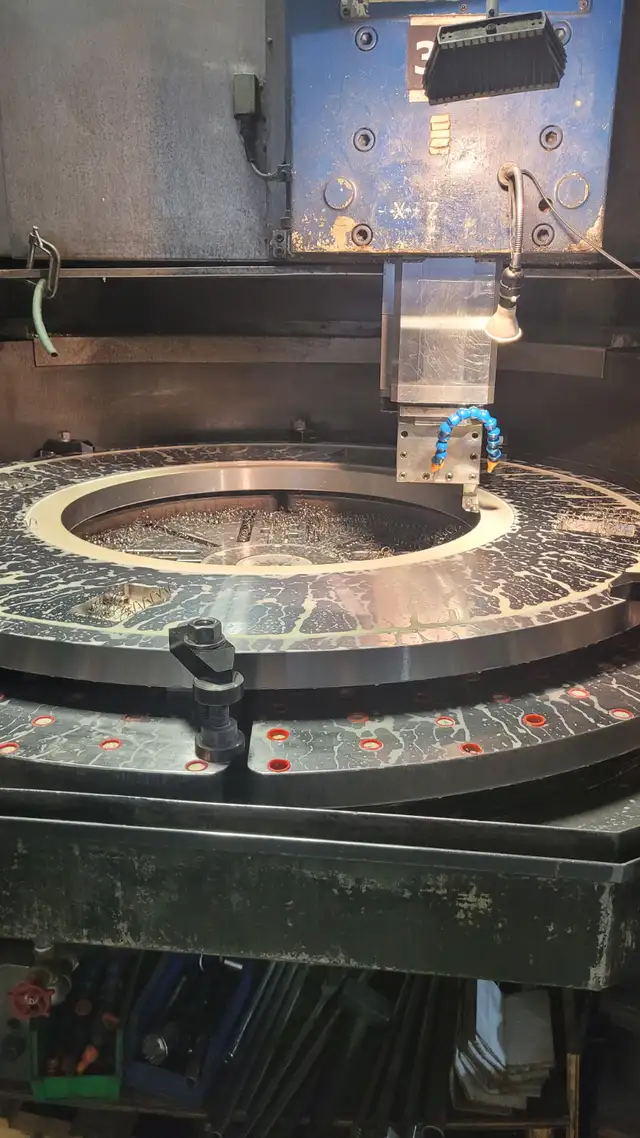

63" Table,
Fanuc Control

can be inspected under power

machine in excellent condition

very precise

available immediately


General Specifications:
Table dia. 1600mm / 63”
Max. swing 2000 mm / 78.75”
Max. turning height 1600mm / 63”
Max. table capacity 15,400 lbs
Max. torque of table 20,000 nm / 14470 ft lbs
Table speeds 1.6-66 rpm (low)
Table speeds 6-270 rpm (high)
Transmission for table is 2 speed Variable in each range
Min. distance from bottom cross rail to table top 1115mm / 43.85”
Max. distance from bottom of cross rail to table top 1915mm / 75.35”
Cross rail positioning steps programmable 6 steps every 7 7/8”
Height under cross rail 36”
Vertical travel of ram head 900mm / 35.46”
Tool holder shank size 32mm x 32mm / 1 1/4” x 1 1/4”
Ram Size 210mm x 210mm / 8 1/4” x 8 1/4
Rapid Traverse rate 10,000 mm / 393” IPM
Approx. machine weight 19,000 kg / 41,800 lbs
Machine size 205” x 169” x 214” Tall

Equipped With:
Fanuc CNC Digital control
Coolant system with splash guarding
Coolant tank
built in lift up type chip conveyor
Operator station
Manual Pulse generator
Package of assorted tooling
Hydraulic system
4 Chuck jaws

can be inspected under power

machine in excellent condition
very precise

available immediately
