Item number :017207
Introduction:
Easily produce name badges, equipment tags, small signs, plaques and awards, gift items, pet tags,ID tags, electrical tags, military name tags, desk plates, or mark industrial parts and 3d engraving.
-
Feature:
Be good at processing small precision instuments, easy to control,support G code.

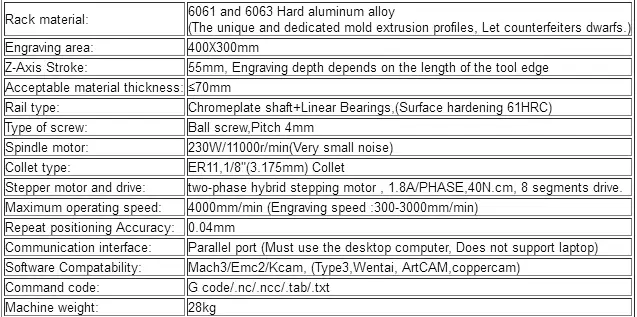

Rack material:6061 and 6063 Hard aluminum alloy
Engraving area:400X300mm
Z-Axis Stroke:55mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness: less than 70mm
Rail type:Chromeplate shaft Linear Bearings,(Surface hardening 61HRC)
Type of screw:Ball screw,Pitch 4mm

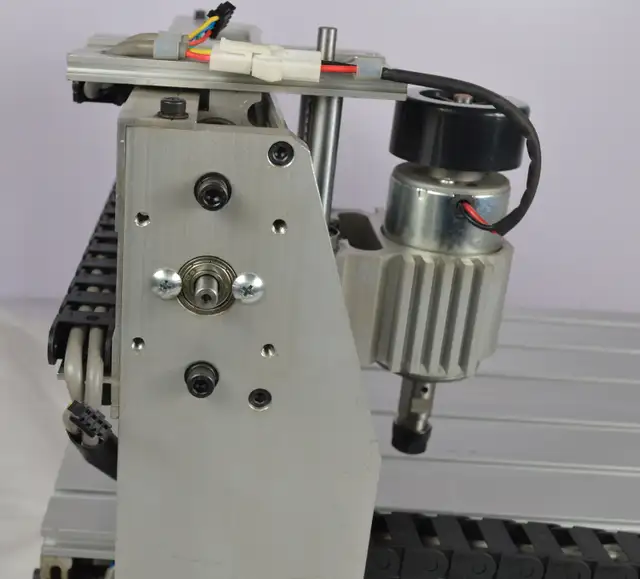

Spindle motor:230W/11000r/min(Very small noise)

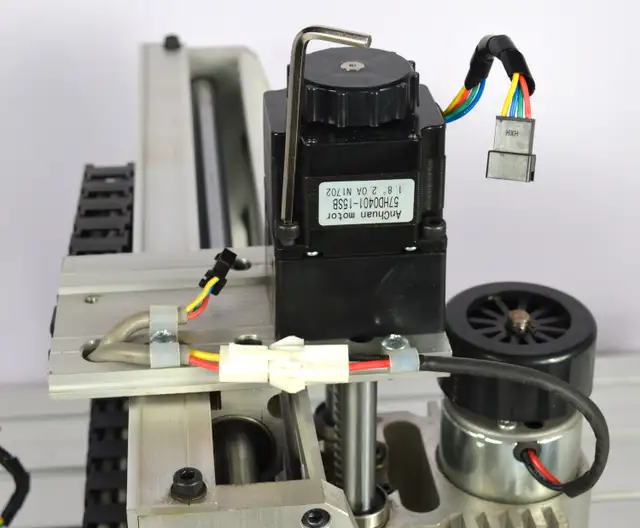

Stepper motor and drive:two-phase hybrid stepping motor, 2.0A/PHASE, 8 segments drive.
Maximum operating speed:4000mm/min (Engraving speed :300-3000mm/min)
Repeat positioning Accuracy:0.04mm
Communication interface: USB
Software Compatability:Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)
Command code:G code/.nc/.ncc/.tab/.txt

How to use:
Please see the English user manual to see how to set up the software and how to use this machine.
1. Assembling and locating the CNC machine on steady desk well.
2. Make sure that your computer has a on-board parallel port output
3. Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.

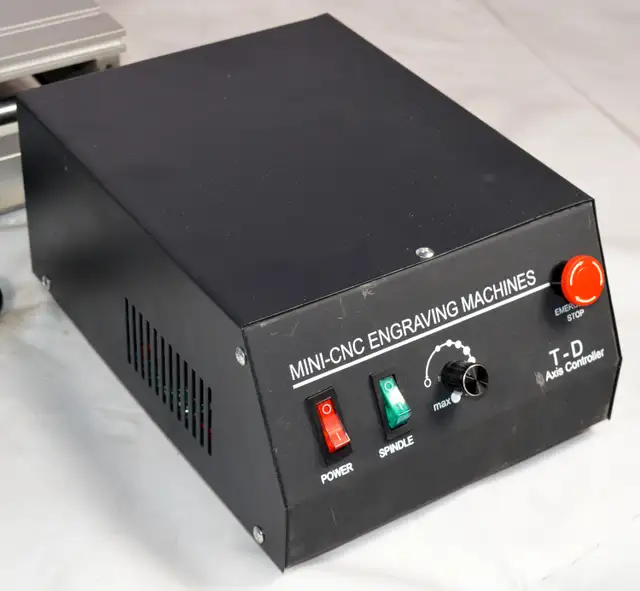

4. Connecting the control box with the CNC machine and you computer.
5. Fllowing our manual or guideline to set uo the software.
-
Item include:

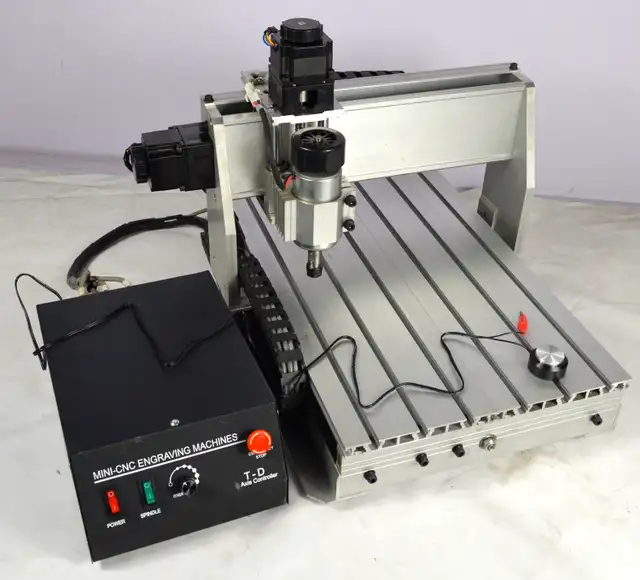

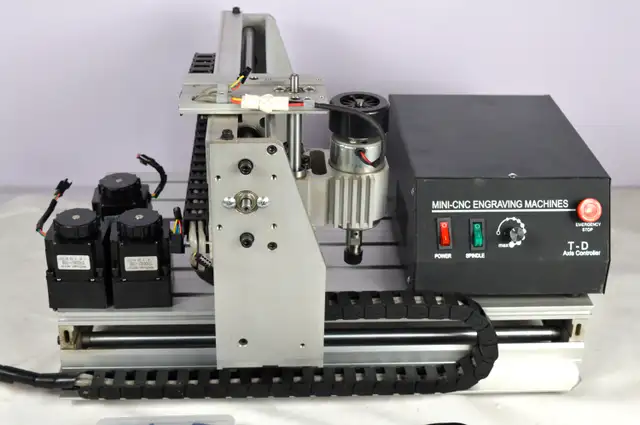

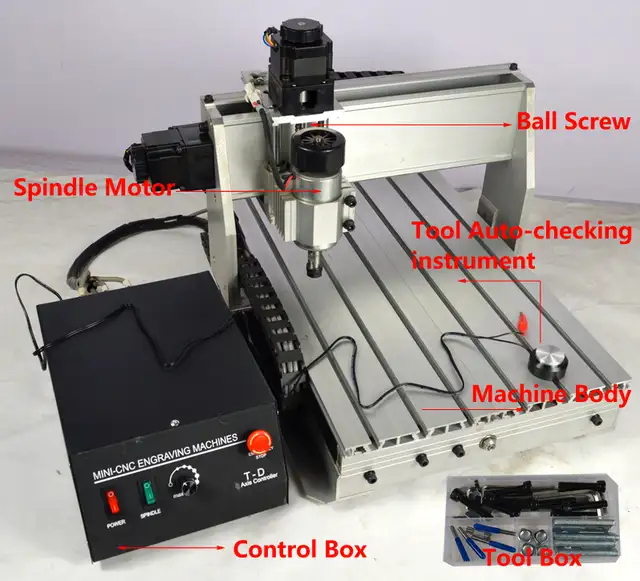

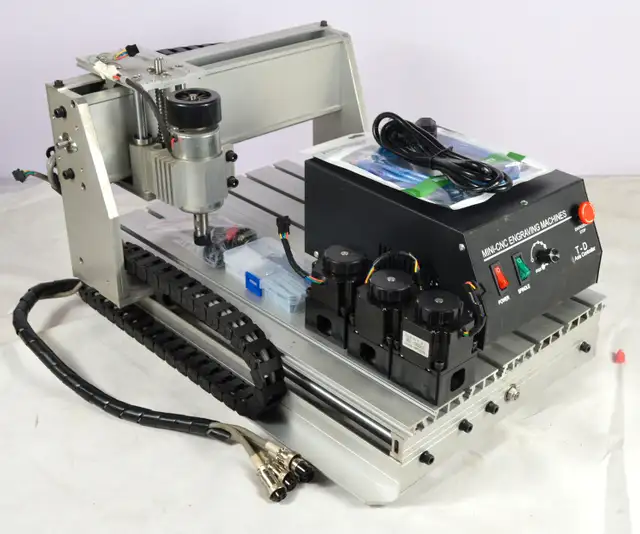

One set of CNC 3040 Wood milling machine PCB engraving router # 017207
