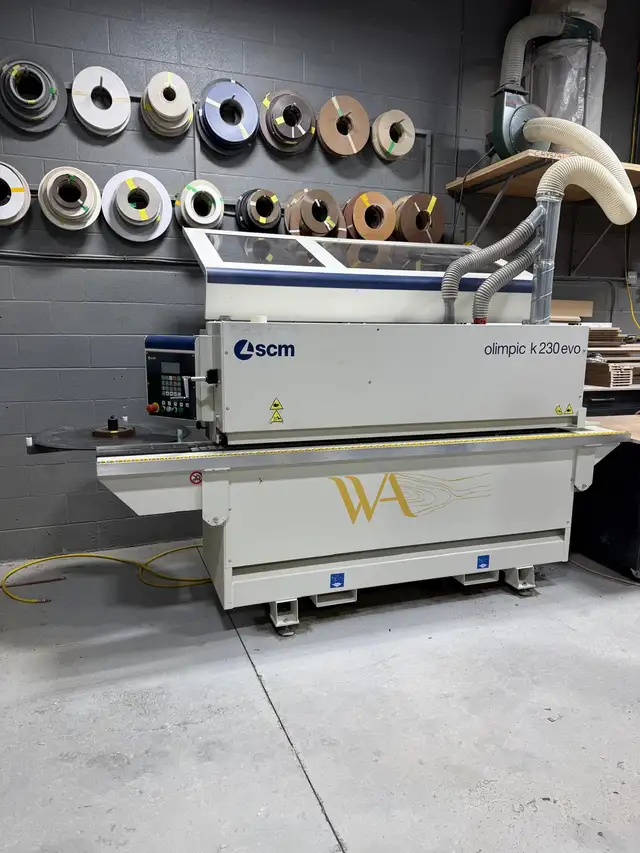

SCM Olimpic K230 evo - Edge bander
Made In ITALY
Control System Orion One Plus
Voltage 230 volts
Phase 3-phase

Track feed speed: 9 m/min
Panel thickness: 8-60 mm
Thickness of edges in strips: 0.4 - 3 mm
Thickness of rolled edges: 0.4 - 3 mm
Max. section of rolled edges: 135 mm2
Coil-holder plate diameter: 780 mm
Exceeding material to the panel thickness: 2 2 mm
Distance between two successive panels: 600 mm
Min. panel length with edge in rolls (100 mm min. width): 140 mm
Min. panel length with edge in strips (100 mm min. width): 140 mm
Min. length edge in rolls: 200 mm
Min. length edge in strips: 260 mm
Min. panel width (210 mm min. length): 90 mm
Worktable height: 900 mm
Opening for panel support roller: 500 mm

3 pneumatic positions on R-K trimming unit
2 pneumatic positions on ROUND 1 rounding unit
pneumatic cut-off of the RAS-V edge scraping unit
