Item number: 238224
-
Features
1. The pure copper motor is of high quality and the product is sturdy and durable. The new
stator and rotor of the motor can easily realize the conversion of electrical energy and
mechanical energy.

2.The diamond chassis is sharp, hard, resistant to wear and high in work efficiency and
quality.

3.High performance, stable life, long service life.

4.Highly adaptable cement floors can also be fully hardened and work can be done at the
root of the wall.

5.With dust suction fan, dust-free operation.

6.The plate and grinding head can be replaced for grinding, polishing, rust removal and paint
removal.

Parameter
Voltage 220V
Power 4KW
Fan Power 750W
Work Efficiency 2500m²/8h
Dust Bin Volume 20L
Work Depth 0-3mm

Details
Dust shield, can automatically adjust the height according to the ground height.

Rubber damping wheel, running more smoothly.

20L large-capacity dust collection box, without frequent cleaning.

Aviation plug, safe to use, fast and efficient connection.

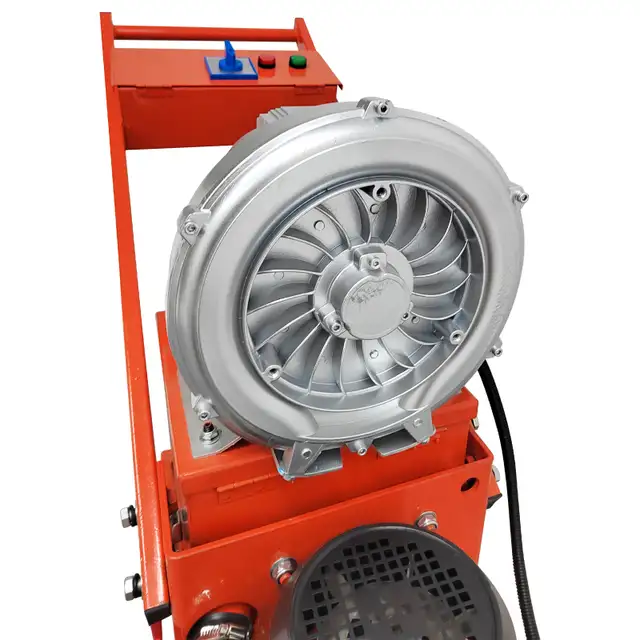

High power fan, good dust absorption effect.

Special dust removal device, gently pull, dust will fall.

Give away 5 meters of wires. The maximum length of the wire
connected to the machine can be 90 meters. The specification is three-
core wires. Each wire should not be less than 6 mm ² of pure copper
wire. The wire must be connected to the air switch, and the rated
current of the air switch is about 63A. As shown in the picture of wiring
mode, please contact us if you have any questions.

Precautions for use

1. The input voltage should not be too low.

2. When using, first lift the machine head off the ground,and then turn on the switch. When
the machine head rotates normally, gently place it on the ground.

3. When working, the machine head swings left and right,then moves forward, and cannot
stop in place.

4. In case of power failure during operation, the switch should be reset and cannot be
stopped at the original position to avoid burning the motor when the power is on.

5.If a generator is used to provide power, the output power of the generator must be at least
12KW.

Note:Different grinding head is suitable for different ground, this machine comes with a set of diamond grinding head, terrazzo
plate,resin grinding disc, sandpaper, grinding special ground or need other grinding head, please contact us in advance.


Item Included: 238224
1*Hand-push Cement Ground Grinder 220V
