Item number: 021051
-

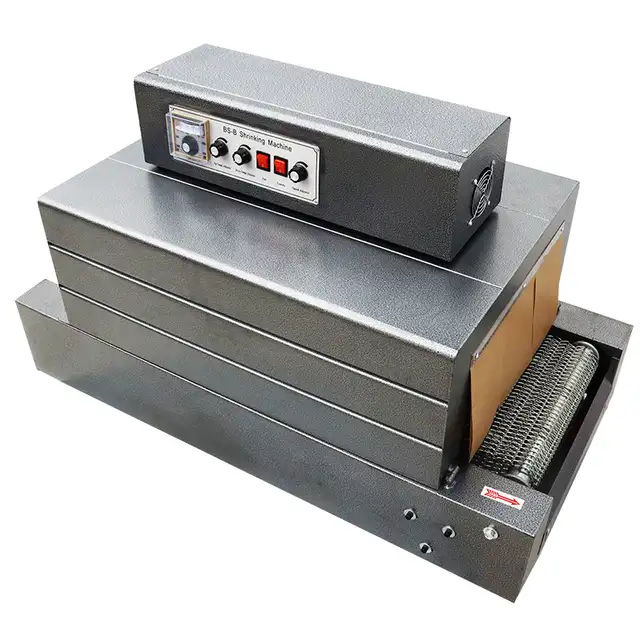

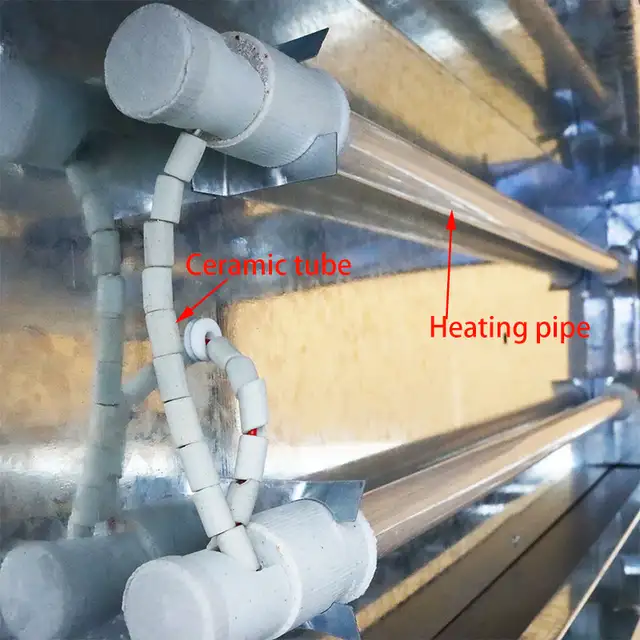

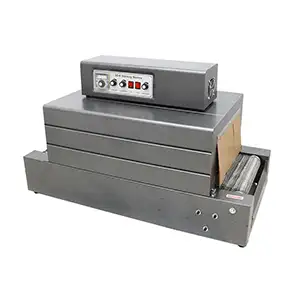

BS-4020 thermal shrink packaging machine adopts quartz farinfrared tubes in direct heating or PVC/POF shrinking membrane to achieve optimal contraction packaging.The machine is made reliable by an electronic stepless shift and booster in temperature control,The packed products can be sealed well,be prevented from getting damp and be protected against knocks.It is suitable for tight wrapping and packaging of many articles and tray packaging .which is applied in contraction packaging.

Product parameter:
Material: Iron spray paint
Max shrink size: 15.75"X7.87" (40X20cm)
Max.feeding weight: 10Kg (22Lb)
Conveyer speed: 0-32.8/ft (0-10m/min)
Power: 5500W
Voltage: 220V

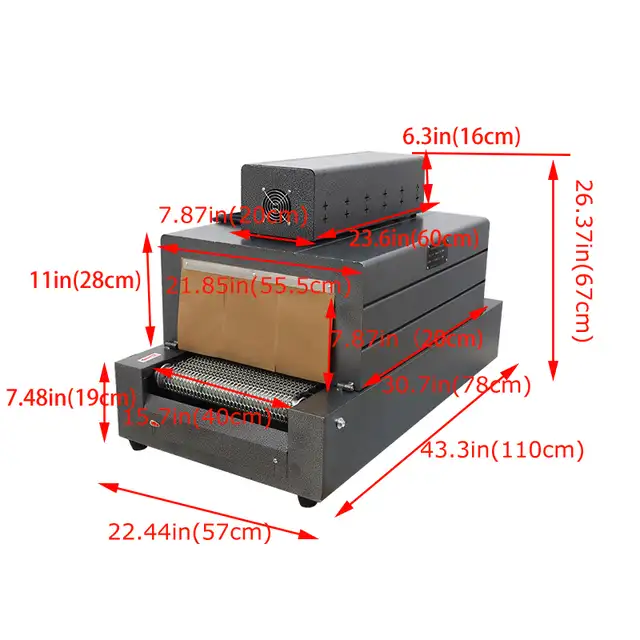

Machine size: 43.3*22.44*26.37inch/110*57*67cm

Shrinking Thickness (mm) Heating time(s) Temperature (℃）
membrane
PVC 0.02 -0. 06 5-10. 110- 130

POF 0.02~0.06 5~ 12 120-180

This machine has no plug and needs to be connected to the air switch for use by the customer (we have a video of the wiring, if you can't wire it, you can contact us for a video reference)

Feature:

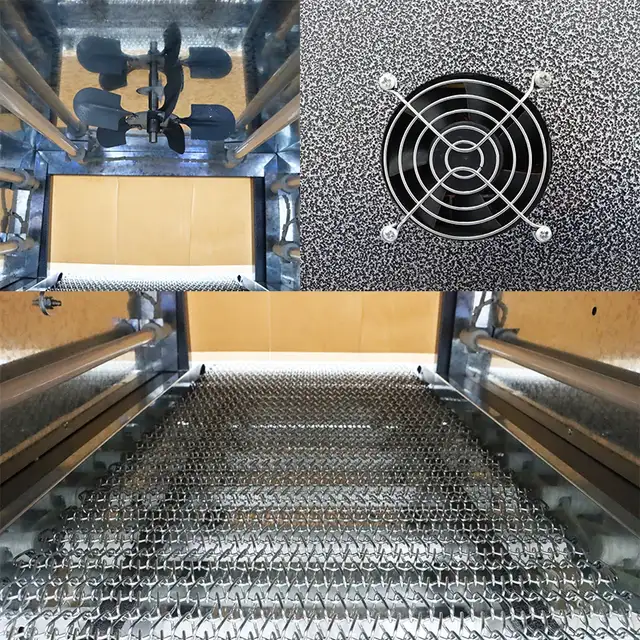

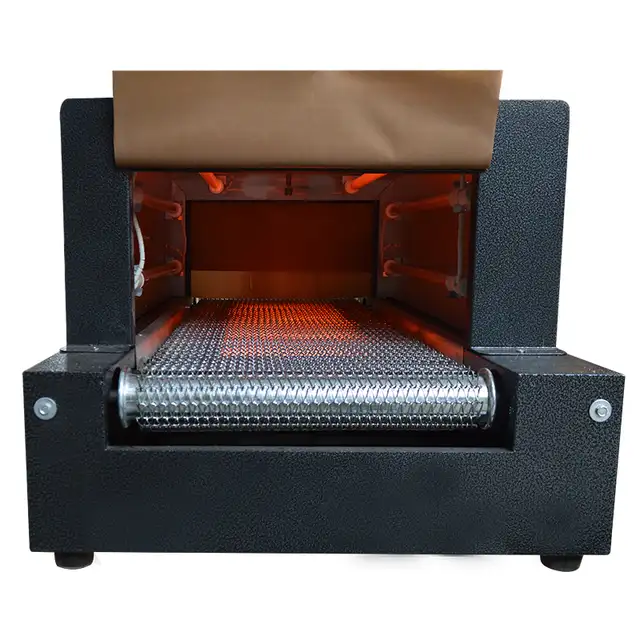

Mesh conveyor belt (recommended for products with small volume and light weight)
Metal mesh belts have fast thermal conductivity, high bottom temperature, and large contact surfaces. When placed on the mesh belt, the film is prone to imprinting. It is not recommended for products with strict appearance or large contact surfaces. For products with less contact between the bottom and the mesh, a mesh shrink machine can be used. (For products with large volume and heavy weight, it is recommended to use a chain type conveyor belt shrinkage machine)

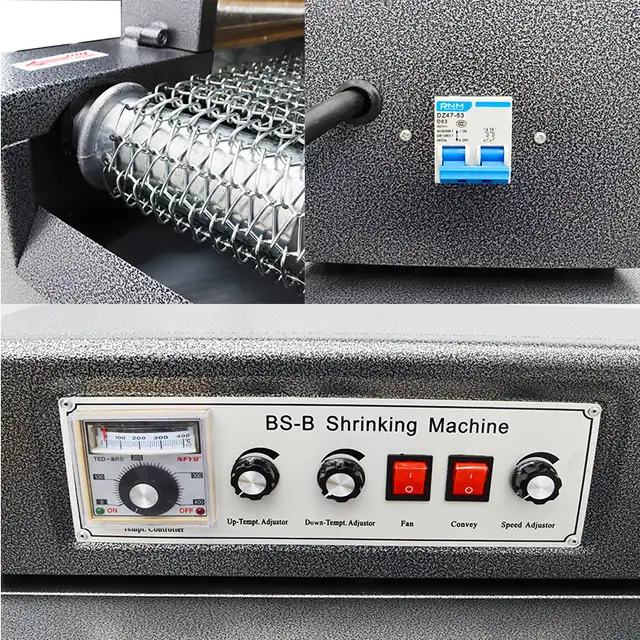

Intelligent control panel
Digital display screen, adjustable temperature, LED light indication, easy to operate.

Core electrical box control box (with fan)

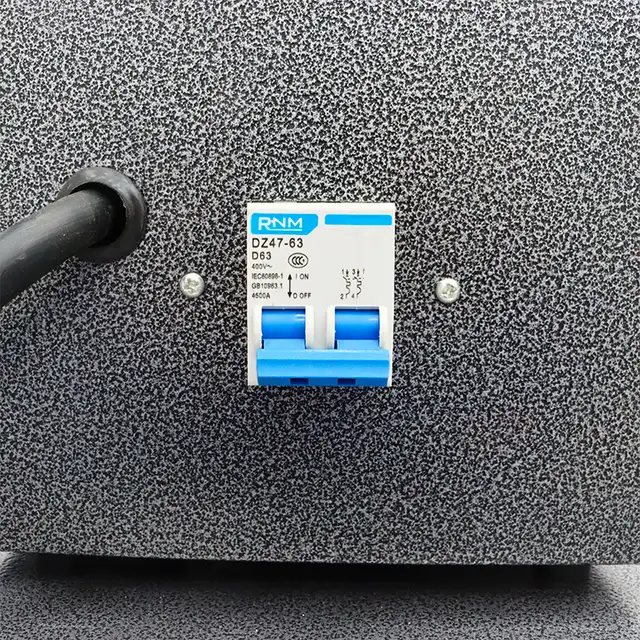

Overload protector
Adopting an independent overload protector, effectively preventing problems such as overheating and overcurrent, safe and durable.

Exhaust and heat dissipation holes
When the machine is working, the generated heat will dissipate through the heat dissipation holes, so that heat dissipation is quick, and the service life of the machine is prolonged.

Product safety precautions:
To ensure safe production, please read the following precautions carefully:

1. Remember the principle of "safety first" and operate this tool correctly;

2. Strictly start this machine according to the appropriate power supply;

3. When the machine is working, it is strictly prohibited from reaching into the inside of the shrinking machine to prevent burns. After stopping the machine, it is necessary to wait for it to cool down for a period of time before the user touches the inside of the machine;

4. It is strictly prohibited from using strong acid and alkaline solutions to clean and wipe this machine;

Item Include: 021051
1 set of 220V Heat Shrink Packaging Machine

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
