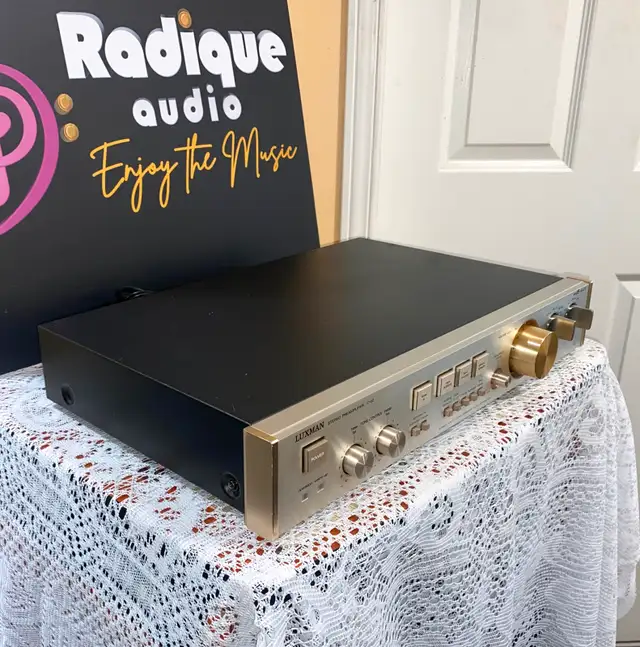

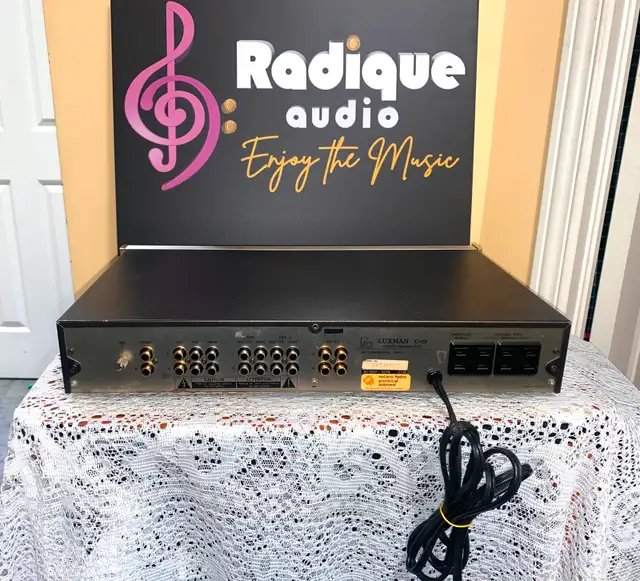

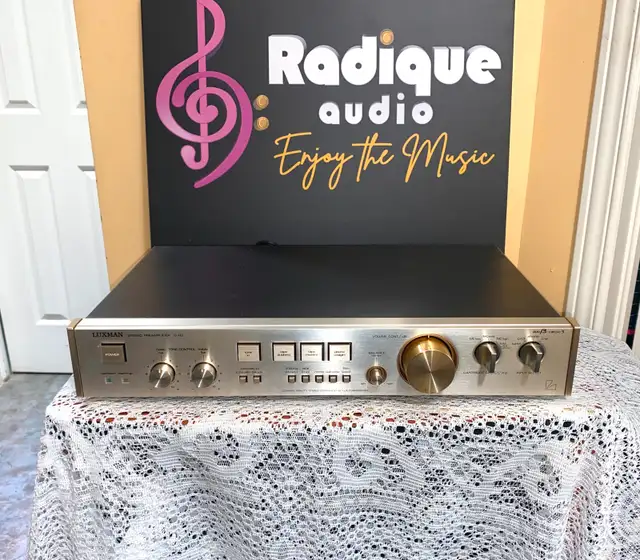

Japanese-Made Luxman C-02 Preamplifier - Legendary Phono Performance and Duo-Beta Circuit Technology

Crafted in Japan during Luxman's golden era (1983-1987), the C-02 preamplifier represents the pinnacle of analog audio engineering with its renowned Duo-Beta Circuit/S technology integrated into a single-stage amplification system for exceptionally pure sound reproduction. This sophisticated preamp delivers outstanding performance for both vinyl enthusiasts and digital audio lovers alike.

The C-02 features a remarkable phono section, widely praised for its exceptional handling of both moving magnet (MM) and moving coil (MC) cartridges. The built-in step-up transformer utilizes non-oxidized copper wires and offers selectable impedance settings (50, 100, 300 ohms) for MC cartridges, allowing precise matching with virtually any phono setup. The innovative "Phono Straight" feature bypasses all tone controls for the purest possible signal path when enjoying vinyl.

Luxman's engineering excellence shines through with the implementation of genuine Class A operation that eliminates crossover distortion, while the unique bias circuit employs LEDs instead of conventional diodes to provide remarkably fast attack and decay characteristics. Gold-plated input/output terminals reduce contact resistance for optimal signal transfer.

The comprehensive control layout includes dual tape monitoring circuits, tone controls with adjustable turnover frequencies, subsonic filter, mono/stereo switching, and convenient dual preamp outputs that facilitate bi-amping or connection to powered subwoofers.

Frequency response: 10Hz to 100kHz

Total harmonic distortion: 0.005%

Input sensitivity: 0.1mV (MC), 2mV (MM), 130mV (line)

Signal-to-noise ratio: 77dB (MC), 90dB (MM), 108dB (line)

Output: 1V typical, 18V maximum (Pre out)

Phono equalizer accuracy: 20Hz-20kHz (±0.3dB)

Tone controls: Bass/Treble ±10dB with selectable turnover frequencies

Special features: Phono Straight switch, subsonic filter, mono/stereo switch, dual outputs

Dimensions: (Width x Height x Depth) 453 x 81 x 315 mm (17.8 x 3.2 x 12.4 inches)
Weight: 5.5 kg (12.1 lbs)

This Japanese-crafted Luxman C-02 preamplifier delivers extraordinary audio performance with exceptional build quality that has stood the test of time. With its legendary phono section and versatile connectivity options, this vintage masterpiece will elevate your listening experience to new heights. Don't miss this opportunity to own a piece of high-end audio history.

Asking $895 for this freshly serviced Luxman pre-amp; buy with confidence and benefit from Radique's "Bumper to Bumper" warranty and Perpetual trade back policy.
