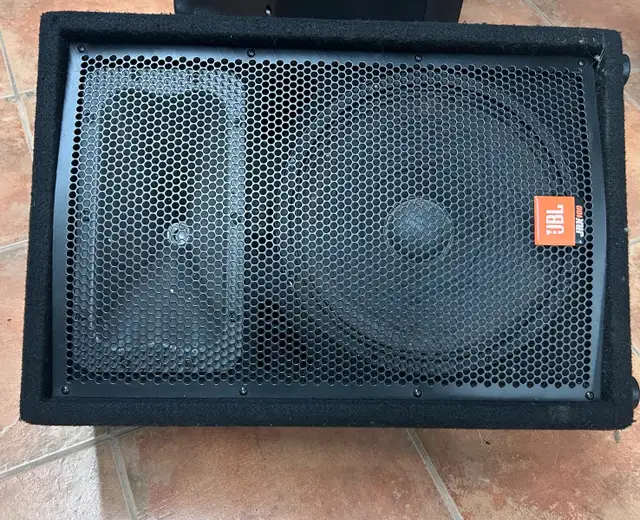

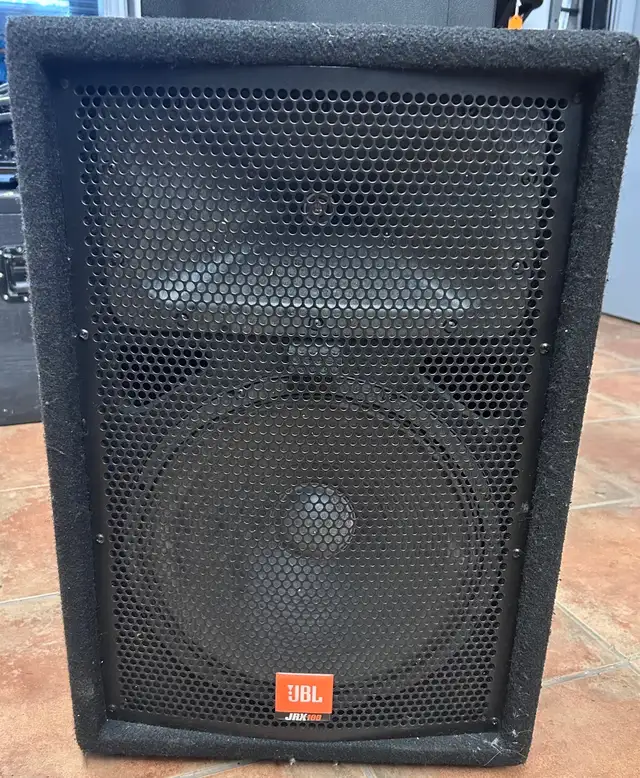

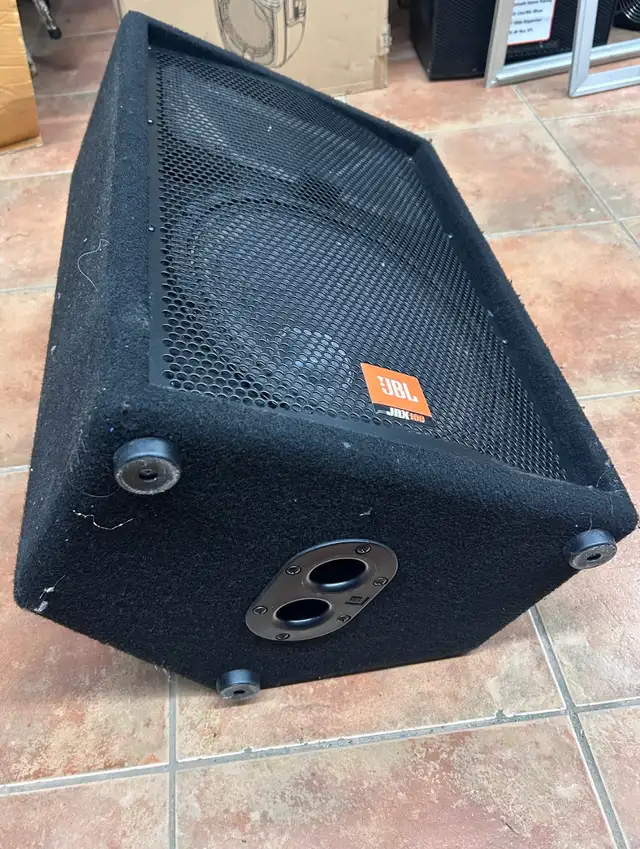

Used JBL JRX112M 12" Full Range Passive Wedge Monitor Speaker.
The JRX112M is a portable, twelve-inch, two-way speaker system designed
specifically for live performance stage monitoring applications. With enough
sensitivity and power handling to cut through the performance volume on
stage, the JRX112M has a smooth response so it can deliver maximum gain
before feedback. It also includes JBL's dual-angle pole socket making it
equally at home as a front-of-house speaker.
Key Features:
-JBL 12" low frequency driver with a 64 mm (2½ in) diameter edge-wound ribbon voice coil which
provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater
efficiency and power handling.
-Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.
-The advanced network topology crossover design shapes frequency response and delivers “coherent
summation” in the crossover region.
-High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
Progressive Transition™ high-frequency waveguide provides superior coverage control, reduced
distortion, and smoother frequency response.
The rugged, acoustically superior enclosure is constructed from 19 mm (¾ in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
-SonicGuard™ protects the high-frequency driver from excess power without interrupting the performance.
-Non-resonant, all-steel handles are used.
-Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
-Dual-angle pole-mount socket allows the speaker to tilt 10° for more uniform audience coverage
Specifications:
-System Type: 12" 2-way, stage monitor
-Frequency Range (-10 dB): 1: 60 Hz - 16 kHz
-Frequency Response (±3 dB): 1: 70 Hz - 12 kHz
-Sensitivity (1w/1m): 99 dB SPL
-Nominal Impedance: 8 Ohms
-Power Capacity: 250 watts
-Peak Power Capacity: 1000 watts
-Recommended Amplifier 250-500 watts @ 8 Ohms
-Power: Maximum SPL: 129 dB
-Nominal Dispersion: 90° x 50°
-Crossover Frequency: 1.8 kHz
-Dimensions (H x W x D): 3 584mm x 399mm x 325mm (23" x 15.7" x 12.8")
-Weight: 19.5 kg (43 lb)
-Shipping Weight: 22.0 kg (49 lb)
-High Frequency Driver: JBL 2412 1" exit compression driver mounted on Progressive Transition™ Waveguide
-Low Frequency Driver: JBL M112-8

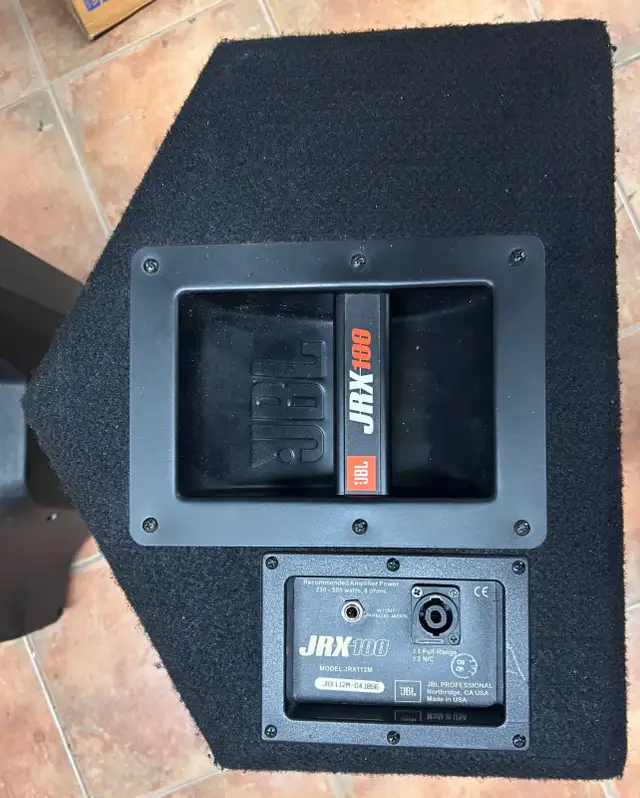

-Input Connectors: Neutrik ® Speakon® NL-4 (x1); ¼" TS phone jack (x1); parallel
-Enclosure Construction: 19mm (¾") MDF (Medium Density Fiberboard) with glued
and mechanically fastened joint detail, covered in black carpet.
-Grille: 18-gauge, powder-coated steel
-Mounting & Suspension: 35 mm, cast aluminum dual-angle pole-mount socket
When you call please mention you found this ad listing on OKz.ca
Contact Person | : | Custom Sound One Steve |
Address | : | Ajax, ON L1S 6W5 |
City | : | Oshawa / Durham Region |
Phone | : | 905-683-XXXX (Show) |
Asking Price | : | $299 |
For Sale By | : | Business |
Fulfillment | : | Curbside Pick Up |
Condition | : | Used - Good |
Payment | : | Cash Accepted |
