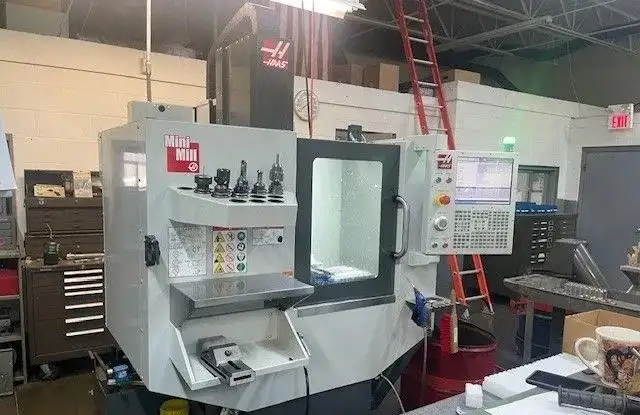

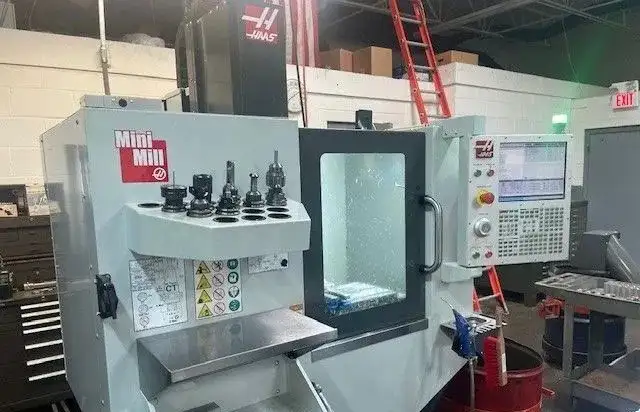

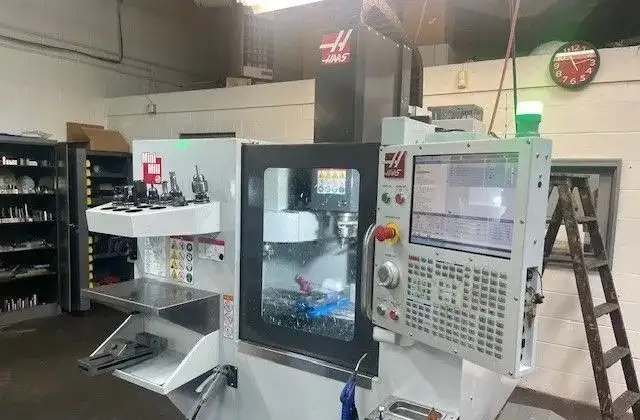

2021 HAAS MINI MILL


TRAVELS:
X-AXIS: 16"
Y-AXIS: 12"
Z-AXIS: 10"
RAPID RATE X AXIS: 600 IPM
RAPID RATE Y AXIS: 600 IPM
RAPID RATE Z AXIS: 600 IPM
MAX TABLE LOAD: 500 LBS
SPINDLE MOTOR: 7.5 HP
SPINDLE SPEED: 6,000 RPM
SPINDLE TAPER: 40
TOOL CHANGER: 10 ATC
BEARING LUBRICATION: GREASE PACKED
COOLING: AIR COOLED
MAX CUTTING: 500 IPM
AXIS MOTORS: 2,000 IBF MAX THRUST X,Y,Z
COOLANT CAPACITY: 40 GAL STANDARD
AIR REQUIRED 100 PSI
FULL LOAD AMPS 13/25
INPUT VOLTAGE 220 3 PHASE
DIMENSIONS: 90" X 64" X 100"
WEIGHT: 4,000 LBS

Equipped With

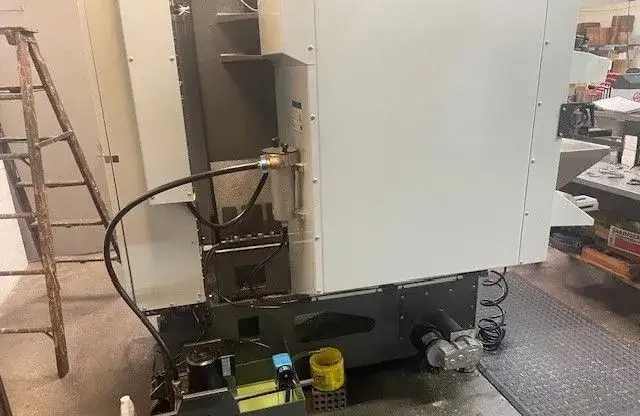

AUGER
RIGID TAPPING

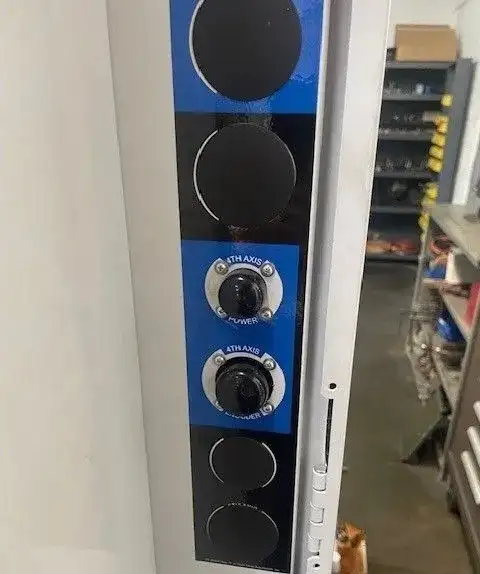

4TH AXIS WIRING & DRIVE

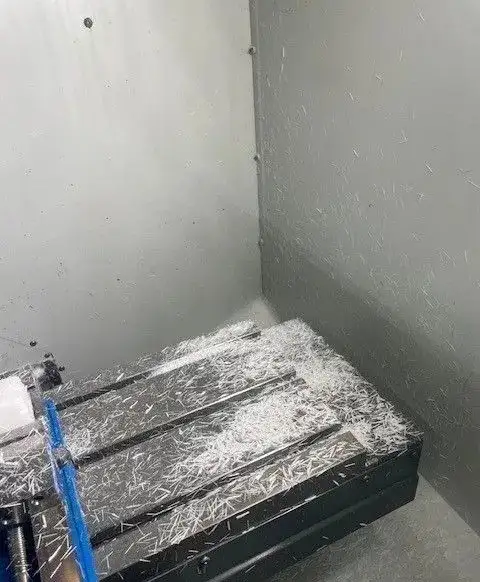

MOSTLY RAN PLASTIC

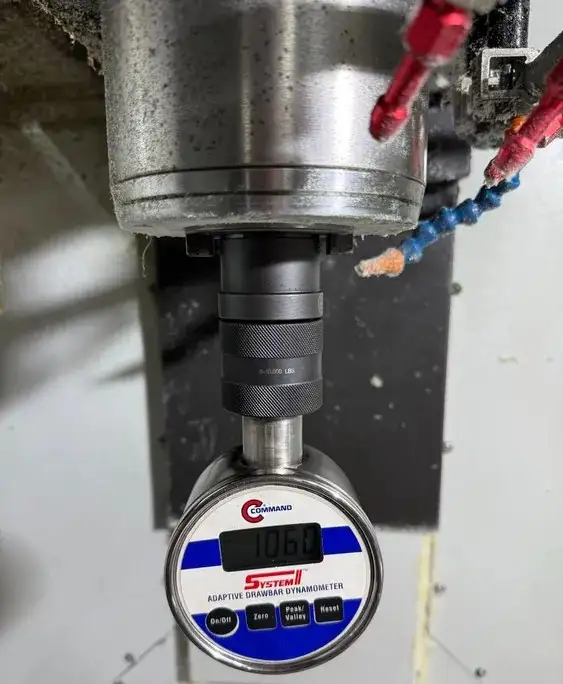

VICE & DRAWBAR TESTER NOT INCLUDED
