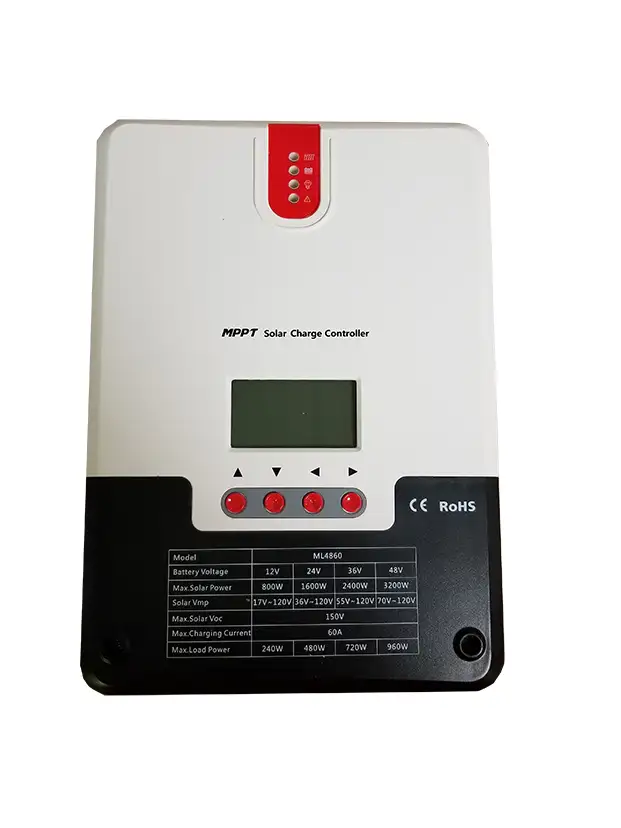

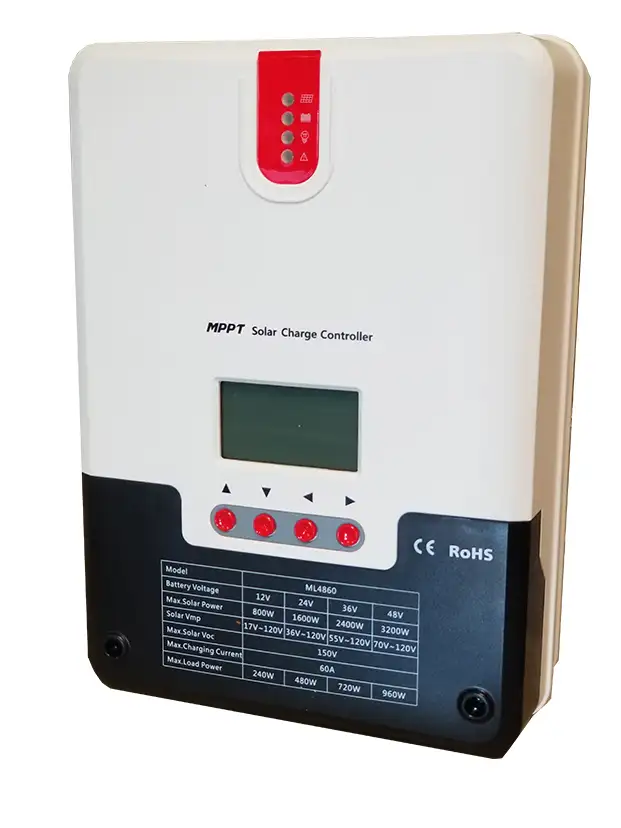

This 60 A, solar charge controller is the new standard in advanced Maximum Power Point Tracking (MPPT). Some of the features of this solar charge controller are:

- Advanced dual-peak/multi-peak tracking technology.
- Boasts an optimum MPPT tracking efficiency of 99.9%.
- Different battery charging options for flooded, sealed, gel, AGM and lithium batteries.
- Limit current charging feature: if the solar panel charging current is larger than the rated current of the solar charge controller, it will automatically lower the charging power and bring the current down to the rated level.
- Automatic battery voltage recognition.
- Data storage is available. Data can be stored for up to 1 year.
- Built in solar charge controller over-temperature protection.
- Battery temperature compensation protection. The solar charge controller will adjust the charging and discharging parameters in order to extend the life of your batteries.
- Battery over-temperature protection. When the battery temperature exceeds the set limit, charging and discharging will be shut off to protect components from being damaged.
- TVS lightning protection

The electrical parameters for this solar charge controller are listed below:

- System Voltage: 12 V/ 24 V/ 36 V/ 48 V
- Maximum Solar Input Voltage: 150 V
- Rated Charging Current: 60 A
- Rated Load Current: 20 A
- Maximum Solar In put Power: 800 W @ 12 V/ 1600 W @ 24 V/ 2400 W @ 36 V/ 3200 W @ 48 V
- Conversion Efficiency: < 98 %
- MPPT Tracking Efficiency: > 99 %
- Weight: 3.6 kg/ 8 lbs

OPTIONAL ADD-ON:

BT-1 RS2332 Bluetooth Adapter ($49.99)

The BT-1 Bluetooth Adapter is a module designed so you can monitor your solar charge controller via an app that can be downloaded to your cell phone or tablet. Once you have the app downloaded and connected to the BT-1, you will be able to perform wireless monitoring, parameter setting changes and data checking.
