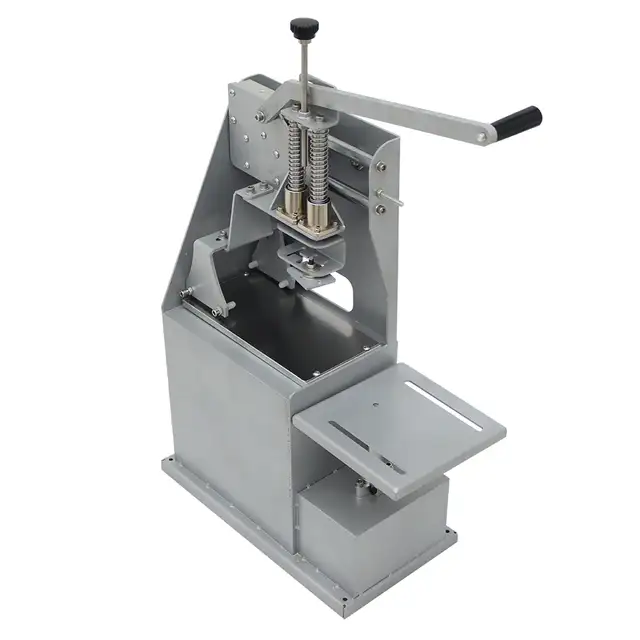

Item number: 011022
-

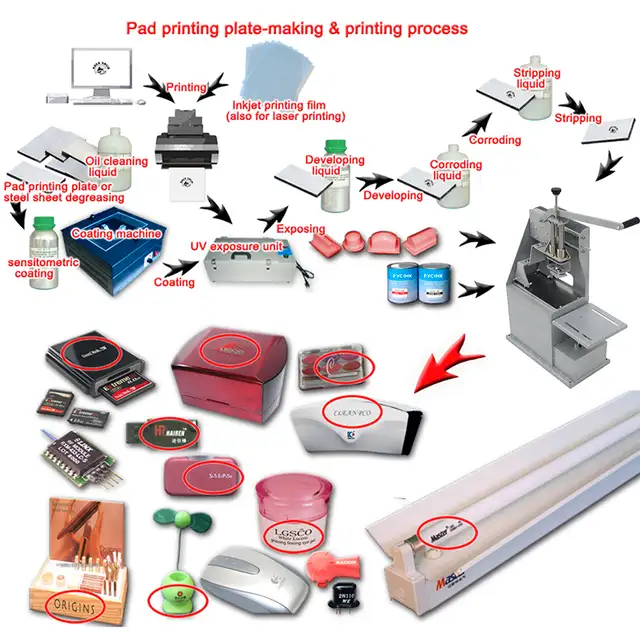

Pad printing is a printing process that can transfer a 2-D image onto a 3-D object. This is accomplished using an indirect offset (gravure) printing process that involves an image being transferred from the printing plate (cliche) via a silicone pad onto a substrate (surface to be printed). The unique properties of the silicone pad enable it to pick the image up from a flat plane and transfer it onto a variety of surfaces.
Closed ink cup system shows many advantages including :Better process control, especially for long runs, since ink is not exposed to air and does not require frequent addition of thinner / allow use of less ink / allow faster cliche and color changes/are easy to keep clean/however, they are limited in size of artwork because of the size of the ink-cups.

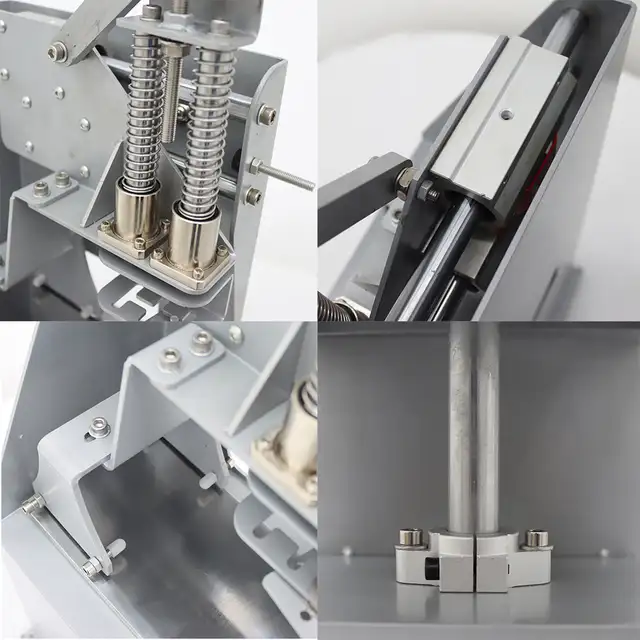

Features:
1.High-Magnetic cup without leaking.

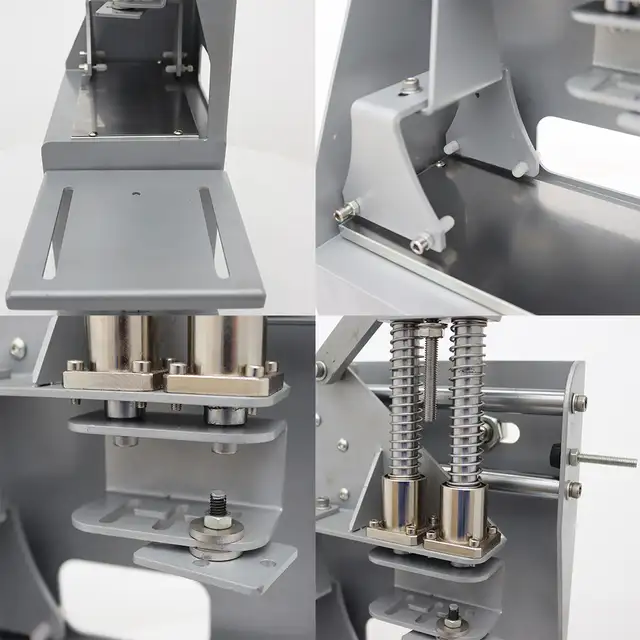

2.Work table can be adjusted up and down, forward and backward.
3.One-handed operation allows the other hand to place objects on the work table at the same time.
4.Precision maintained in repeat jobs.
5.High flexibility to adapt to different applications.
This gift is shipped randomly in two styles.

Parameters:
Operation Way: manual
Ink System: sealed ink cup
Cup size: Φ3.54"(Φ9cm)
Maximum printing area: Φ2.3"(Φ6cm)
Max length of craftwork: 5.9"(15cm)
Horizontal stroke: 4.9"(12.5cm)
Vertical stroke of rubber head:2.36"(6cm)

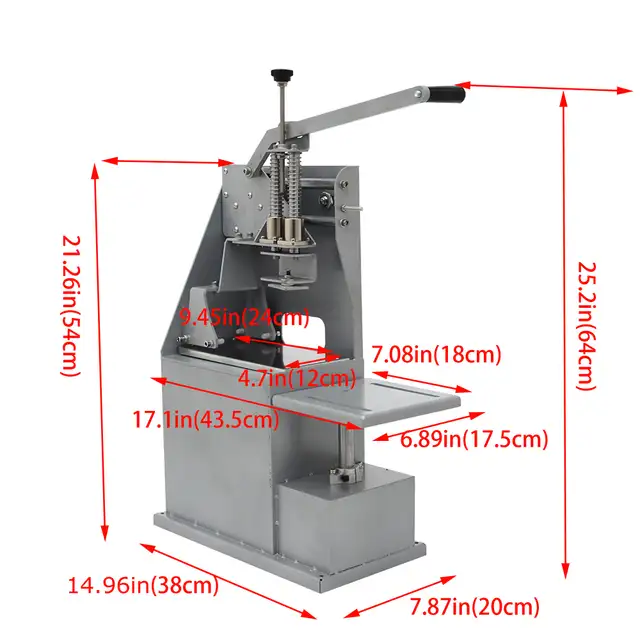

Machine size:17.1"x7.87"x25.2"(43.5x20x64cm)
Net weight: 43.43Lb(19.7kg)
Substrate on which the machine can print:
1.Plastic
2.Glass and Ceramic
3.Metal
4.Paper and Cardboard

Why use pad printing
Pad printing is used for printing on various substrates like Plastics, Metals, Glass and Ceramics, Paper and Cardboard, Leather. It is primary used in places where the printing area is small and/or the contour or surface of the object is not flat or hard to reach by other printing process.
* Ashtrays
* Bicycle helmets
* Brochure holders
* Business card holders
* Calculators
* Cassettes
* Coasters
* Computer products
* Construction helmets
* Badges
* Engineering items
* Golf products
* Hangers
* Highlighters
* Key rings
* Letter openers
* Lighters
* Mobile phone holders
* Mugs
* Page up
* Paper weights
* Pens
* Pencils
* Rulers
* Sunglasses
* Telephone boards
* Toys

Advantages:
1.The ink layer of the pad printer is thin, which means it is easy to leave a mark on the surface of any product, whether flat, curved, or wavy.
2.Pad printing machine has a very good color performance and printing adaptability, although the screen printing technology to print the three-dimensional sense of strong, hand touch can feel the rugged sense of reality, but if you want to print the product type, Machine can be called a panacea, whether plastic or metal, whether it is sporting goods or glass products, for the printing machine is a piece of cake.
3.High-performance, low price characteristics.

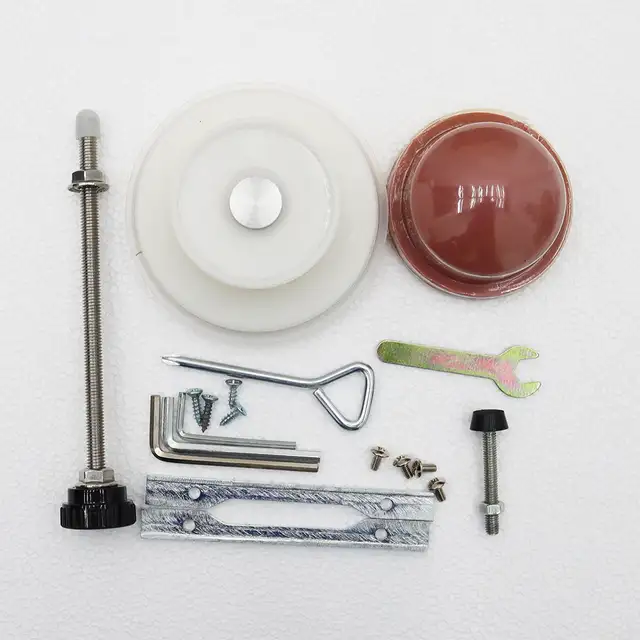

Item Included: 011022
1 Set of Oil cup printing machine


Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.

Warehouse Address:
2220 Midland Ave., Unit 60AP (Administration Park)
Scarborough, ON M1P3E6

Business Hours:
Monday - Friday 9:00am - 4:30pm
Saturday & Sunday Closed
* For PICK UP, appointment by phone needed.
Tel: 647-350-2889 416-727-3877
