View and save signal voltages with this compact 2 channel PC storage oscilloscope which directly connect to PC USB port.
Product Features and Functions:
2 channel input and synchronized display
Records date, time and voltage in text file
Measures range automatically
4 available modes
Input capture function
Able to set any channel as the source of the capture signal
Able to set rising or falling edge to capture signal
Adjustable capture signal level
Powered directly by USB port - no other power source needed
Use with electronic teaching equipment
Carry out acoustic tests and research
Ideal for SCM development
Examine and repair apparatus and appliances


Product Specifications:
Operating systems: Win 2000, XP
Signal input: BMC connection with universal oscillograph probe
Max sampling: 8kHz x 1/ (4kHz x 2)
Voltage: 5V USB port supply
Current: 60mA
Measurable frequency: 0Hz - 3kHz
DIV array: horizontal 16DIV x vertical 10DIV
Input impedance: 1M
Max voltage: 0 - 5V
Error of voltage measurement: ±30mV
Adjustable range of time domain: 10 mS/DIV - 10800 S/DIV
Error of time measurement: ±0.01%
Max time of data record &s; save: 93 hours

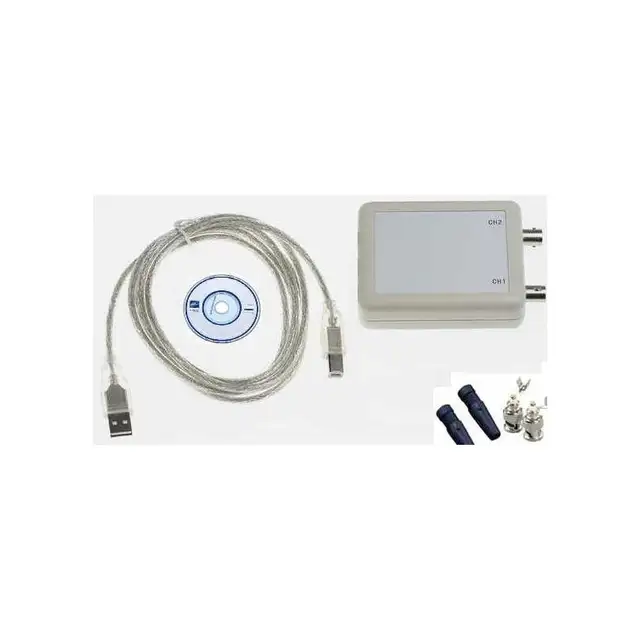

Package Includes:
2-Channel Oscilloscope Main Unit
BNC Tie-Ins
USB 2.0 Cable
CD with instruction manual and drivers
