Item number: 239408
-
Feed granulator is widely used in large, medium and small aquaculture, grain feed processing plants, livestock farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small feed processing plants.

Note:

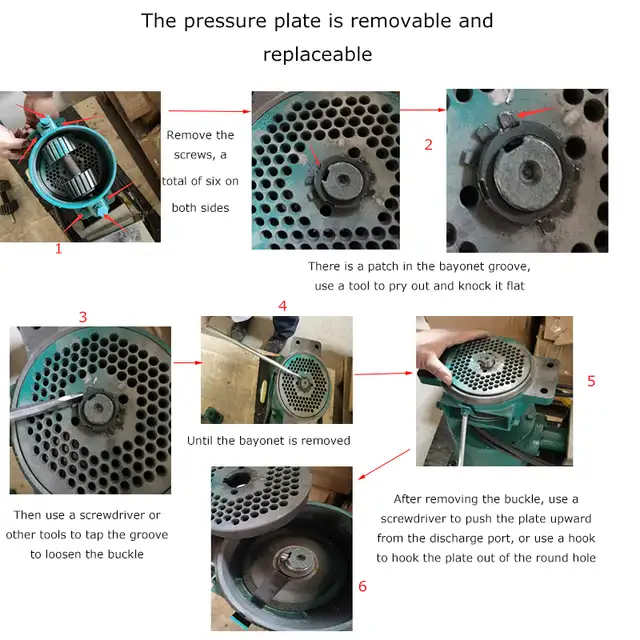

1. Before using the machine, it is necessary to adjust the screw of the pressure roller to the appropriate position. The pressure roller and the pressure plate should be closely combined, and the two adjusting screws should be on the same horizontal plane.
2. Please fill the oil tank before using the machine. Do not idle the machine for more than 2 minutes.
3.Double-check the belt and the screws before operation.
4.Clean up the rest after use to prevent damage to the machine.

Feature:
1.This machine is equipped with an enlarged and widened discharge port to prevent feed
2.splashing and facilitate the collection of feed by customers.
2.This machine is equipped with a voltage display, which can visually see whether the voltage is stable

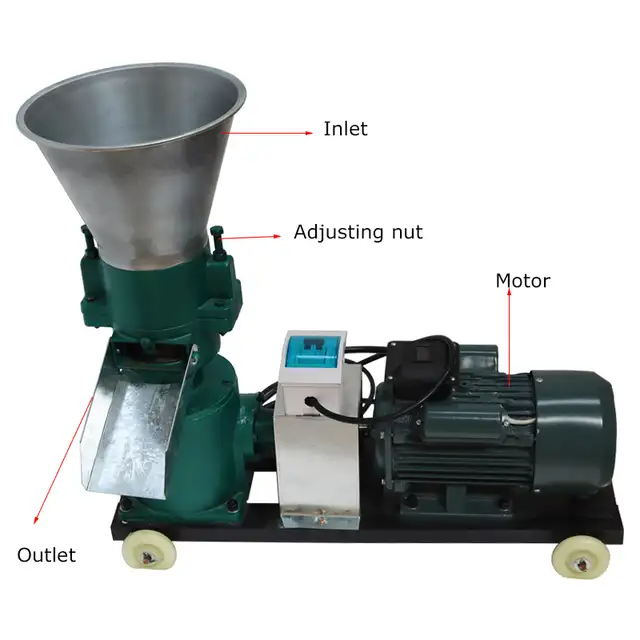

3.Adjustable Nut
Used to adjust the distance between the pressure roller and the grinding disc. When making pellets, the nuts on the two sides must be balanced to avoid damage to the pressure roller and grinding disc.
4.Enlarge the feed inlet
The machine adopts the design of enlarged feed port, which makes it more convenient for you ti feed and effectively improves work efficiency.

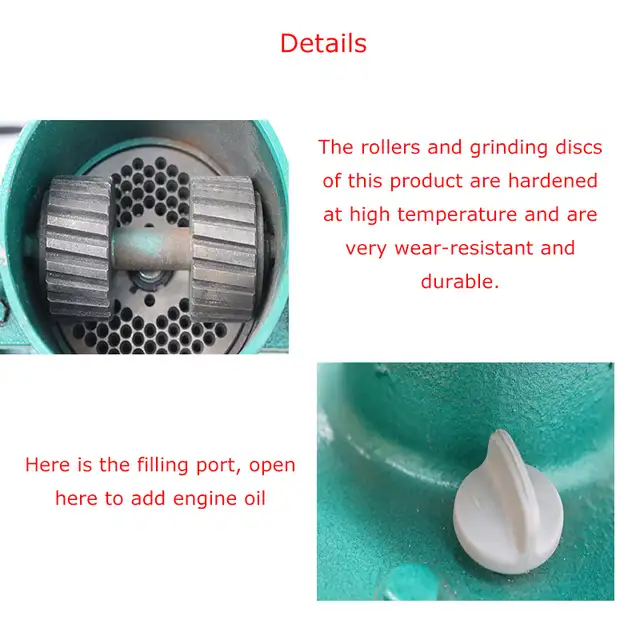

5.Here is the filling port, open here to add engine oil
It is recommended to add high-quality machine oil or hyperbola heavy-duty gear oil.
6.The length of feed particlescan be adjusted here.
7.The machine is equipped with air switch, which is safer to use.
8.Nylon wheels are adopted, which are more wear-resistant and durable.


Precautions:
1.When using, it should be noted that there should be no foreign matter such as stones and iron blocks in the raw materials. After the pellet machine has been working continuously for more than ten shifts, the pressure roller oil hole, the universal joint oil hole, and the linkage shaft oil hole need to be filled with high-temperature lubricating grease to make the pressure roller Good working performance and extended bearing life.
2.During granulation, it is strictly forbidden for the pressure roller to contact with the template to run idly, and the continuous feeding can not be interrupted.At the same time, the pressure roller shaft nut is locked to avoid loosening and damaging the spindle key way.
3.When granulating, there is no granulation, no discharge, the template should be removed, and after opening one by one, some fiber feed can be added appropriately to restart the granulation.

4.Always check the tightness of the screws in each part of the machine. If there is oil leakage int he gearbox, replace the oil seals in time, and check whether the bearings in the machine head are short of oil.
5.When the pellet machine is working, do not reach into the feeding port with your hands. If necessary, use wooden sticks to help feed the pellets.
6.Before turning on the machine, it is necessary to add less material before turning on the
machine. When shutting down, leave a small amount of feed in the machine to prevent the press roller of the machine from contacting the template from idling.
7.If the machine is stuck in operation, stop it immediately, press the pressure roller until the bolt is flat,and then restart the machine.
8.Each time the work is completed, the adjusting pressure roller bolts must be loosened.

9.Iron or stones cannot be put into the griller.
10.Check the elasticity of the belt, and the bearing frequently. Add oil in time when it needs to.


Note:
We suggest that high-power machines should be directly connected to the main power supply, as the voltage reaching the machine is stable. If the voltage is unstable and the current exceeds the rated current of the motor, it is easy to burn out the starting capacitor.

It is recommended to directly connect to the power supply as much as possible. If the machine is not connected to the power supply, different situations may occur, and the wires are not durable. The wires will gradually burn out over time.

Usage and specification:
1: It applies to chicken industry.
2:Corn particles can be put into the machine directly. The feed processed by the machine is smooth and has moderate hardness. The temperature-change during the process is slight so the nutrition can be contained very well.

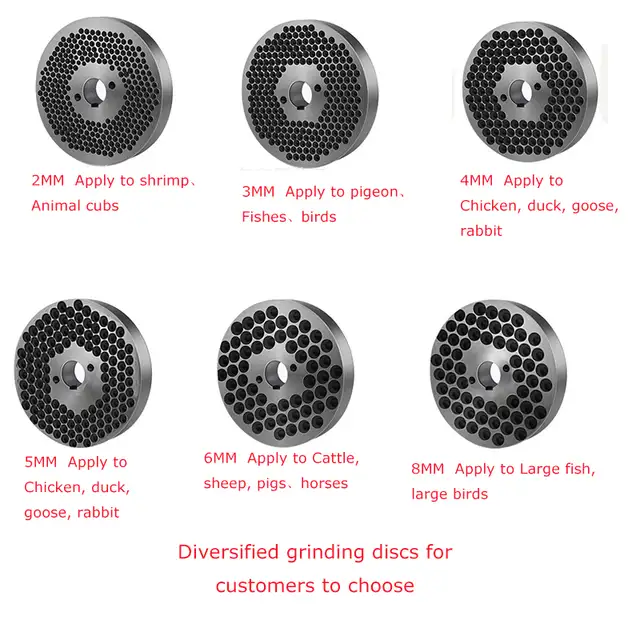

3:The practical's diameter of the holes can be divided into: Φ2, Φ3, Φ4, Φ5, Φ6, Φ8.
4:The microorganism and parasite can be killed during the process by extrusion.



Item included: 239408

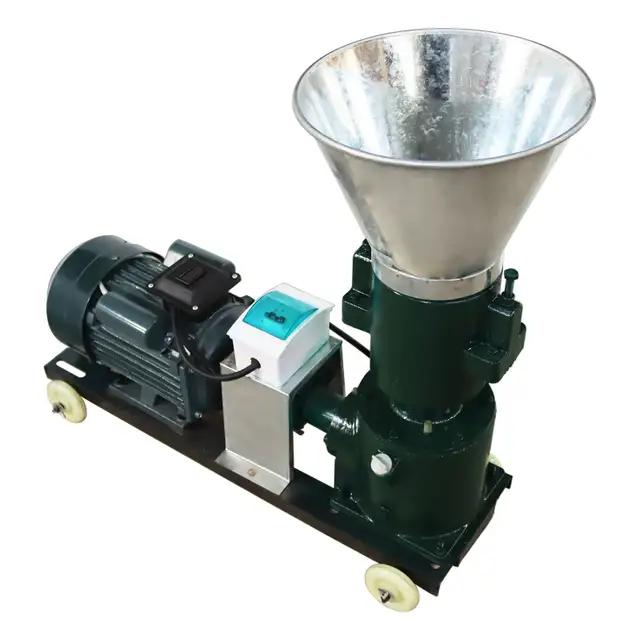

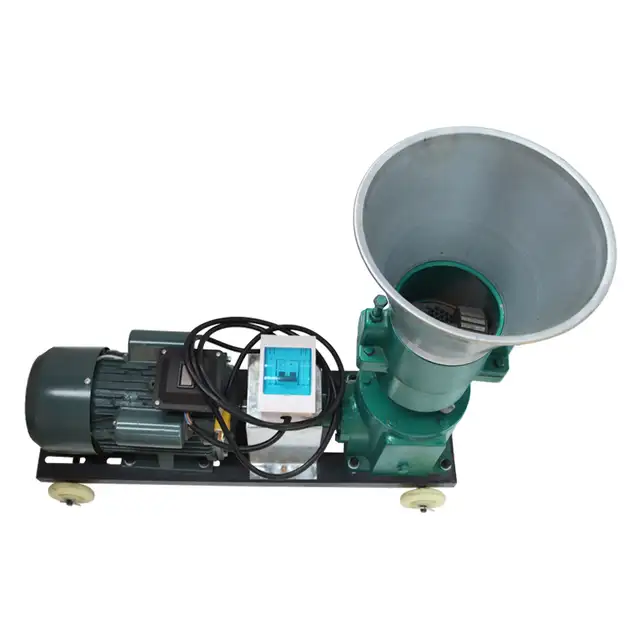

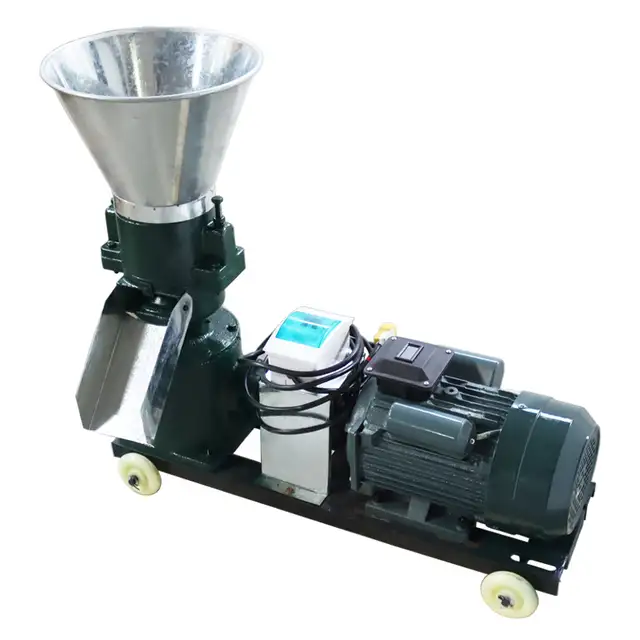

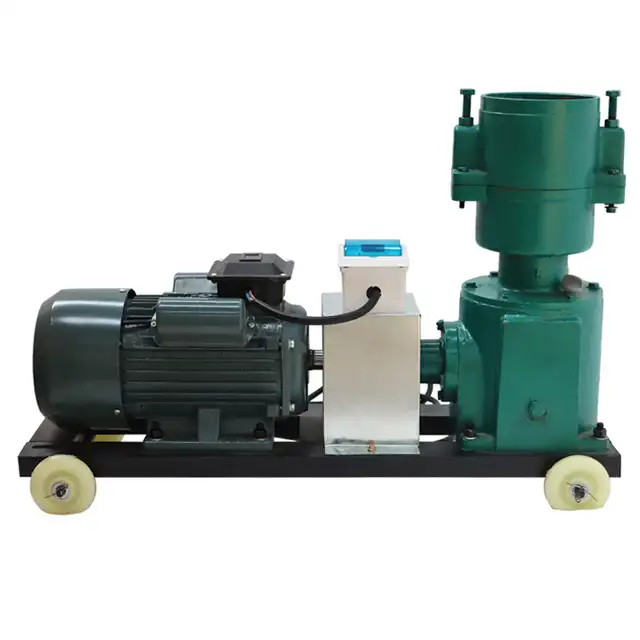

1*Chicken Feed Pellet Mill Machine 220V 3KW
