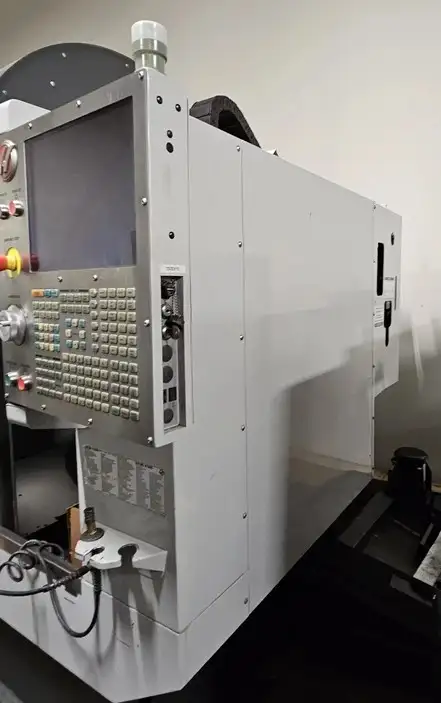

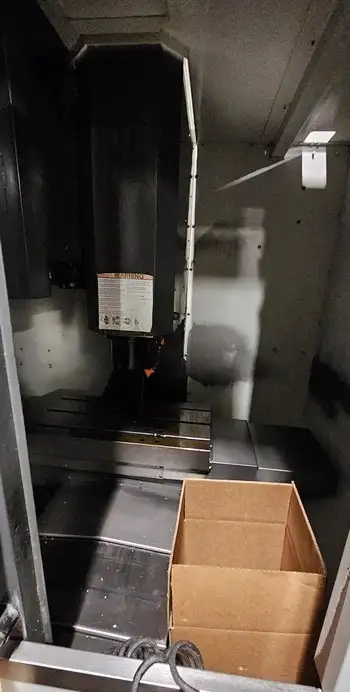

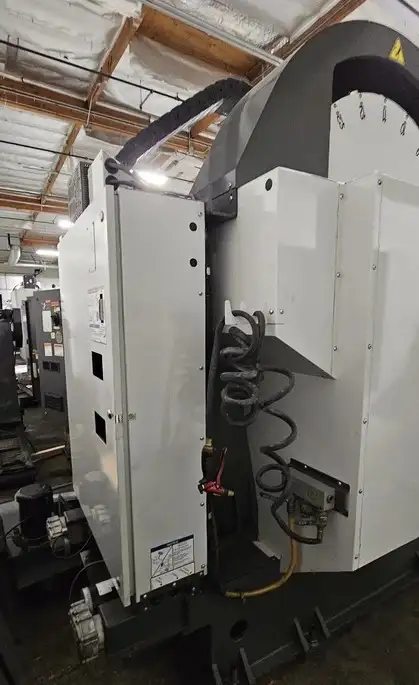

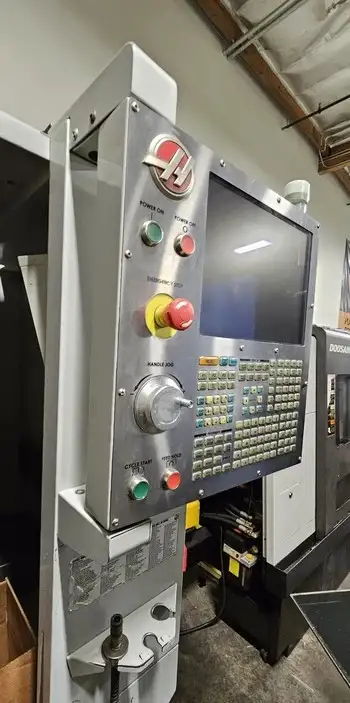

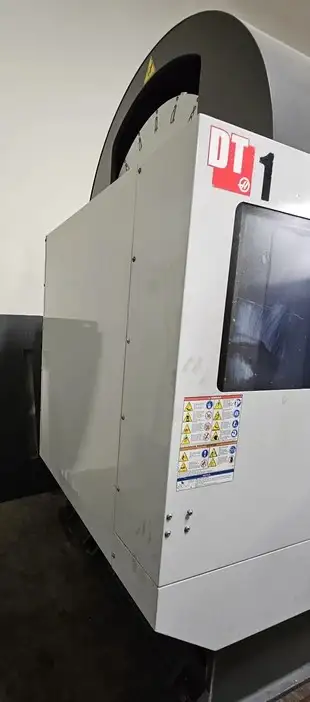

2012 Haas DT-1

TRAVELS:
X AXIS: 20"
Y AXIS: 16"
Z AXIS: 15.5"

TABLE:
LENGTH: 26" x 15”
MAX. WEIGHT ON TABLE (EVENLY DIST.) 250 LBS.

SPINDLE:
MAX RATING 15 HP
MAX SPEED 12,000 RPM
DRIVE SYSTEM INLINE DIRECT DRIVE
TAPER BT/30
BEARING LUBRICATION AIR/OIL
COOLING AIR

TAPPING:
MAX TAPPING SPEED 5,000 RPM
MAX TAP SIZE (ALUMINUM) 1/2 X 13
FEEDRATES
RAPIDS ON X/Y/Z 2400 IN/MIN
MAX CUTTING 1200 IN/MIN

TOOL CHANGER:
TYPE SMTC CAPACITY 20 1
COOLANT CAPACITY 45 GAL

EQUIPPED WITH:

RIGID TAPPING
CHIP AUGER
INTUITIVE PROGRAMMING SYSTEM
VISUAL QUICK CODE
