Canadian Surface 604 Shred Electric Mountain Bike - with top components and torque sensor.


In great condition and designed by a Canadian company.

It is Class 3 ready and you can unlock the top speed. Put on new front brake pads and new pedals.

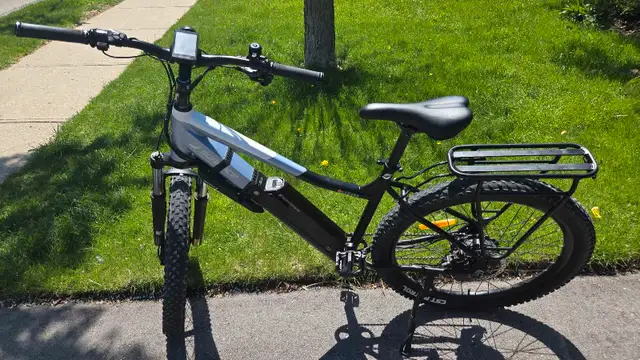

Paid over $3700 new plus got the additional Shred/Quad Rear Rack for it. I can add in extra spare peddles and a helmet.

The Surface604 Shred comes in a new three tone colour scheme with upgraded forks and wiring harness. It redesigns the cockpit with an extra-large 3.5" colour LCD and a standard 14Ah battery provides extended range. The Surface604 Shred mountain bike is Winner of Best Electric Hardtail Mountain Bike as voted by EBR. Powered by a 500W hub motor that peaks at 750W, the Shred challenges any hill. More of Shred's rubber meets the road, thanks to its stock CST Patrol 27.5" x 2.8" plus size tires. That larger contact patch means more grip, less feedback from small bumps and greater comfort. Shred's incredibly smooth torque sensor knows how hard you're pedaling and matches it with proportionate power. In fact, you'll swear it's as smooth as a mid-drive motor. Gone are the days of simple cadence sensors!

RECOMMENDED RIDER HEIGHT

Frame Size: M/L - 19.5" For Riders 5'8” - 8'8”

MOTOR eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor

DRIVE MODE Drop Out Torque Sensing Pedal Assist with a Throttle

TORQUE 65Nm

THROTTLE Thumb Push Activated Throttle

CONTROLLER SURFACE604 Designed 12 MOS 48V 500W 17Ah, Smart

TOP SPEED 20mph (32kmh)*

BATTERY Included: 48V 14Ah / 672Wh Samsung lithium-ion 18650 cells

BATTERY Upgrade: 48V 20Ah / 960Wh Samsung lithium-ion 21700 cells

RANGE 48V14Ah Battery Up to 45mi (72km)

RANGE 48V20Ah Battery Up to 65mi (105km)

BATTERY CHARGE TIME 3-4 Hours for a Full Charge from Empty

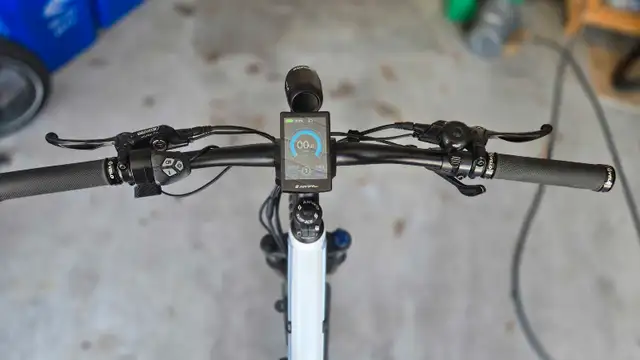

DISPLAY TYPE SURFACE604 3.5" Color LCD Display with Micro USB Jack

LIGHTS Büchel Headlight, Pre-Wired To Connect Rear Stop Light

FORK UPGRADED SUSPENSION SR SUNTOUR XCM 32. 29er, 100mm with Axle Thru Hub

MOTOR WIRE HARNESS - UPGRADED 30Ah, can handle up to 120C current

DERAILLEUR SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings

CASSETTE SRAM 12-34T

SHIFT LEVERS SRAM X5 Trigger Shift

BRAKES TEKTRO Dorado eMTB Specific Hydraulic Disc, Quad Piston with Motor Inhibitors

CRANK SET SAMOX 38T Front Sprocket, 170mm Crank Arms

ROTORS 180mm Front/Rear x 2.34mm thick

BOTTOM BRACKET SAMOX Sealed Bottom Bracket

FRAME TYPE

Tapered Headtube, Custom Reinforced Battery Mounts,

Internal Cable Routing, Post Mount Brakes

FRAME MATERIAL 6061 Aluminum Alloy

STEM NEW: eMTB specific Ergotec Bass 31.8mm

HEAD SET SAMOX Tapered with Sealed Bearings 1 1/8″- 1 1/2″

HANDLEBAR PROMAX Aluminum, 30mm Rise With 9° Backsweep and 720mm Wide

PEDALS WELLGO Platform

CHAIN KMC 9-Speed

SEAT POST DIAMETER 30.4mm

WHEELS/TIRES CST Patrol 27.5" x 2.8"

RIMS Aluminum Alloy Double Wall Rim, 27.5″x13Gx36H

FRONT HUBS 1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR

KICKSTAND Adjustable Heavy-Duty Aluminum

STANDOVER HEIGHT

Medium-Large: 30” (762mm)

NET WEIGHT (INCLUDING BATTERY) 61-65lbs

WEIGHT CAPACITY 285lbs (130kg)

OTHER Adjustable Kickstand, Chain Guide, Water Bottle Bosses
