Item number: 056410

-

Product Overview

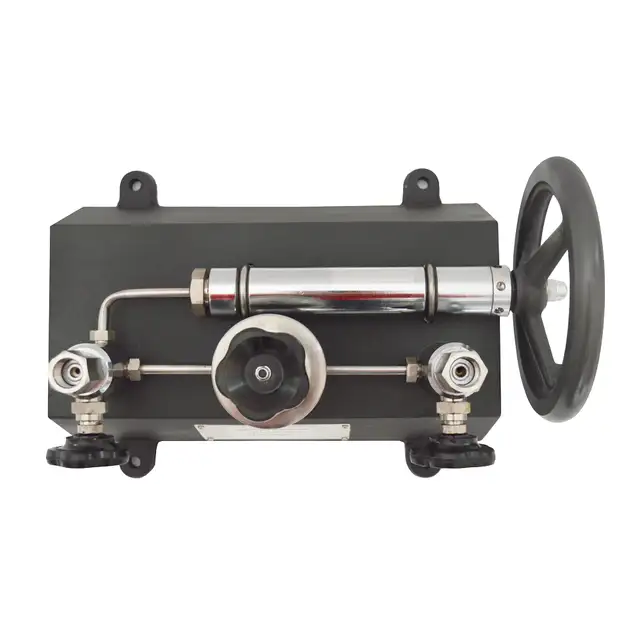

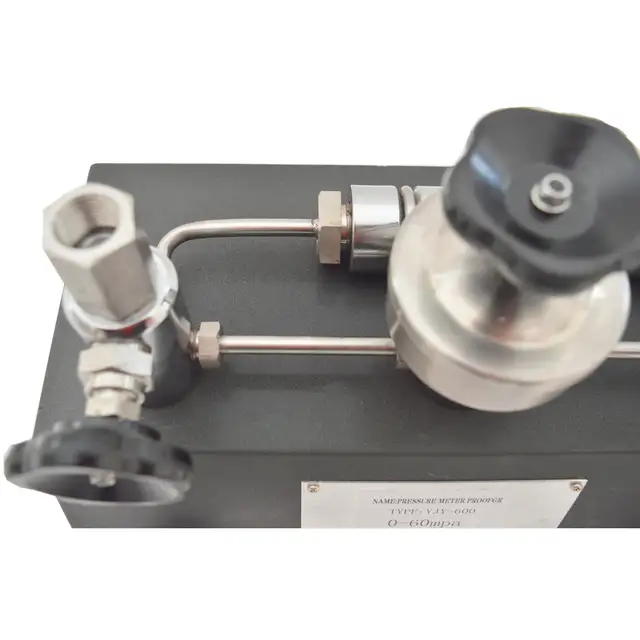

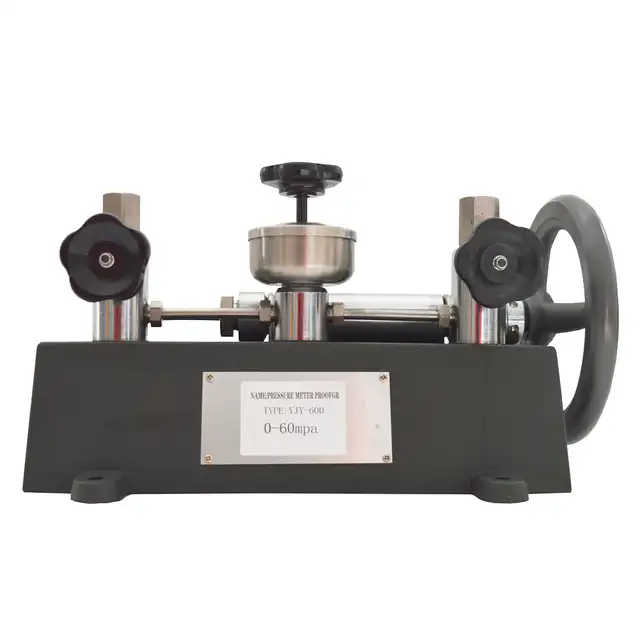

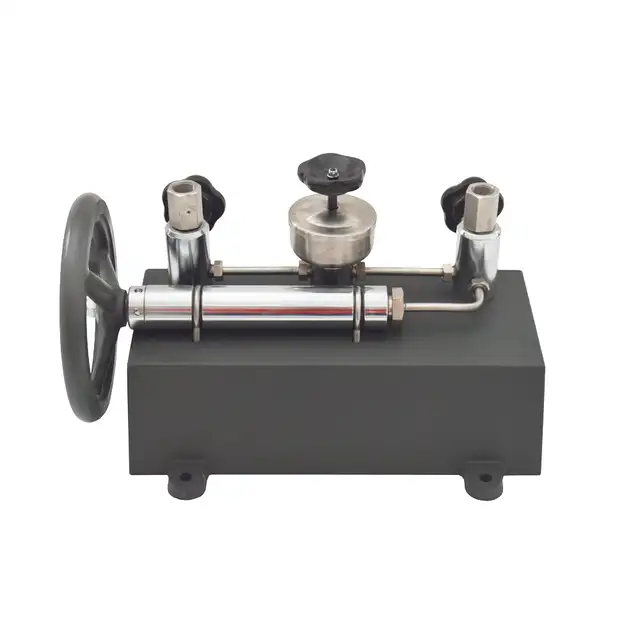

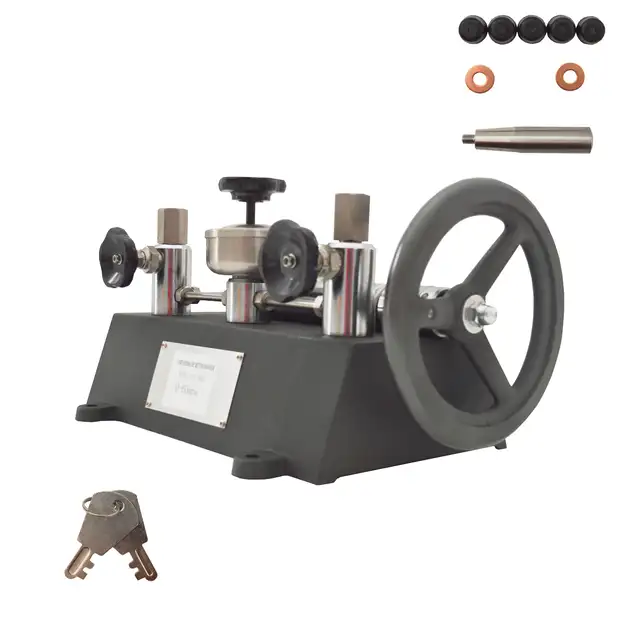

YJY pressure gauge verifier is a source of pressure. It is a device that ACTS as a pressure generator in the inspection of ordinary pressure gauges. Pressure gauge tester is used for testing general pressure gauges and pressure measuring instrument equipment, with pressures up to 6MPa and 60MPa respectively (but only with precision pressure gauges.This equipment does not contain precision pressure gauge. If you need it, please contact me and tell me your operating environment. I will recommend a suitable precision pressure gauge for your purchase).

Type A represents A hand pump mounted on the calibration.



Product Parameters

Model: YJY-600

Maximum test pressure: 0-60MPa(YJY-600)

Pressure transfer medium: Machine oil or Castor oil

Hand lift pump pressurized pressure: < 1MPa

Coupling nut: M20*1.5

Base surface treatment technology: Black frosted

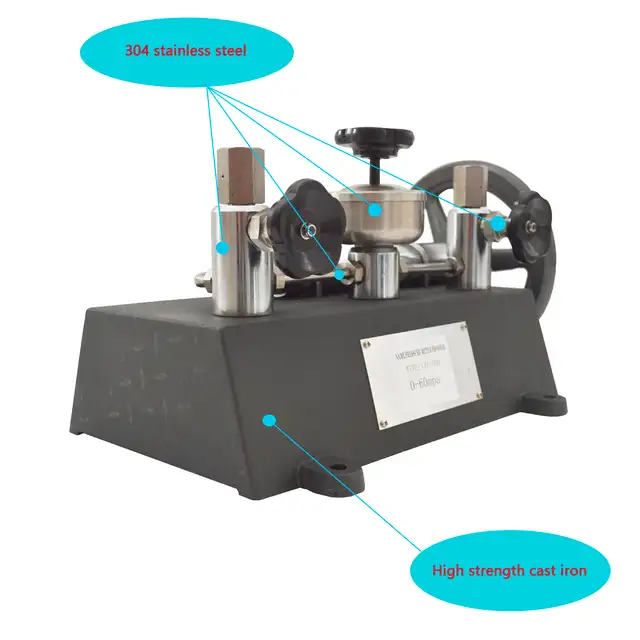

Base material: Cast iron

Material of valve/pipe/oil cup: 304 stainless steel

Net weight: 37.4LBS





Product Features & Advantages

1. The pressure gauge calibrator is used to check the general pressure gauge and other pressure measuring instruments, the pressure can be up to 6MPa and 60MPa (but must be equipped with precision pressure gauge before they can be used).Model number A indicates that the calibrator is equipped with a hand lift pump.



2. The pressure gauge calibrator is the laboratory, factories, colleges and the ideal high-end tools, and can be used as high precision pressure test standard of general pressure gauge, precision pressure gauge, pressure transmitter verification and calibration.





3. The pressure meter calibrator is a manual hydraulic source. It has simple structure, high reliability, convenient operation and maintenance, and it is easy to leak the sealing performance. The pressure regulation range is large and the fluctuation pressure is stable.





4.Because of its open and transparent structure, it is very convenient for users to maintain and maintain it.



5. Reasonable design, excellent workmanship, high quality materials, surface paint treatment, corrosion resistance, long service life.



Item Included 056410

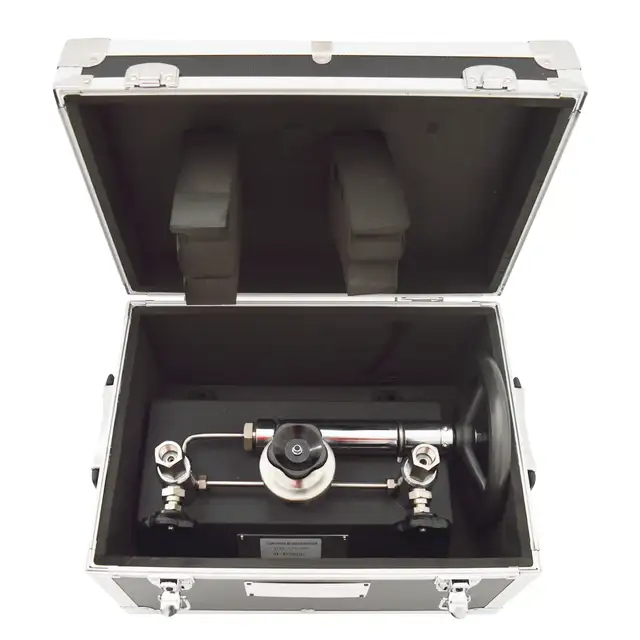

A set of YJY-600 Pressure Gauge Calibrator
