Item number: 056186

-

Product Overview

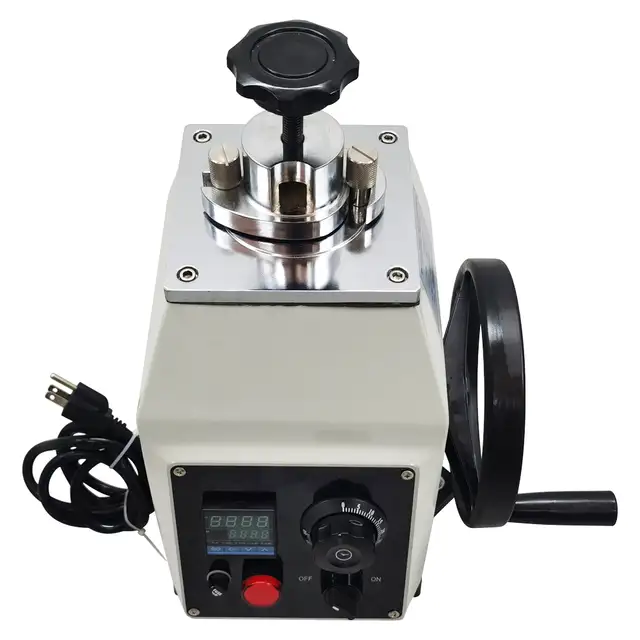

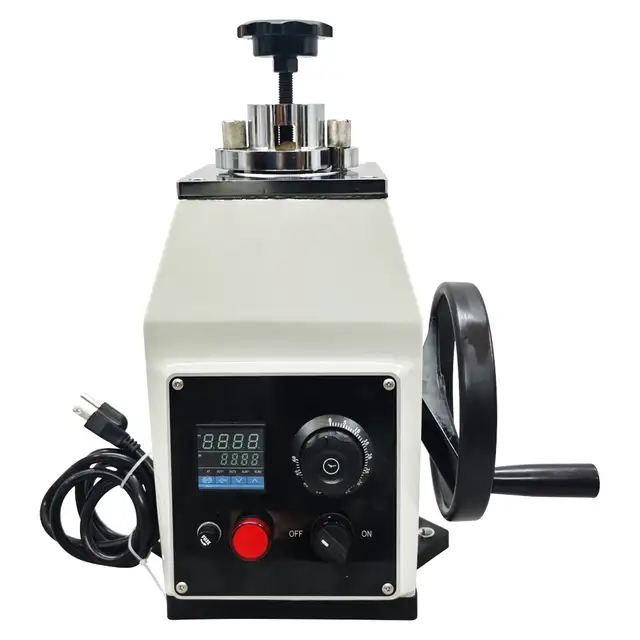

XQ-2B type metallographic specimen inlaying machine is suitable for pressing thermosetting plastic on the tiny metallographic specimen which is not easy to take such as powder and particle. After forming, it is convenient to grind and polish the sample, and it is also advantageous to determine the microstructure under the metallographic microscope.



Product Parameters

Model: XQ-2B

Voltage: AC110V/60Hz

Heater power: 650W

Sample pressing diameter: 1.77"(45mm)

Sample Height: 0.71"(18mm)

Temperature adjustment range: 100℃-180℃

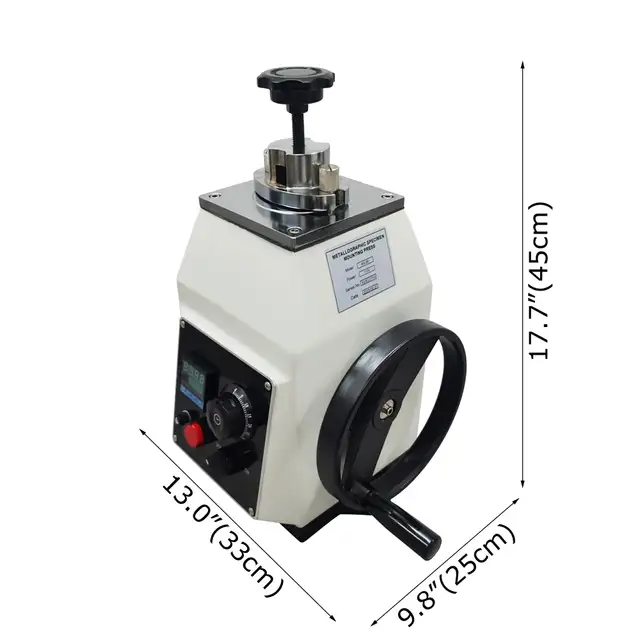

Package size: 15.3"*12.6"*20.5"(39cm*32cm*52cm)

Net weight/Gross weight: 60.0LB(27.2kg)/66.1LB(30kg)



Product Features & Advantages

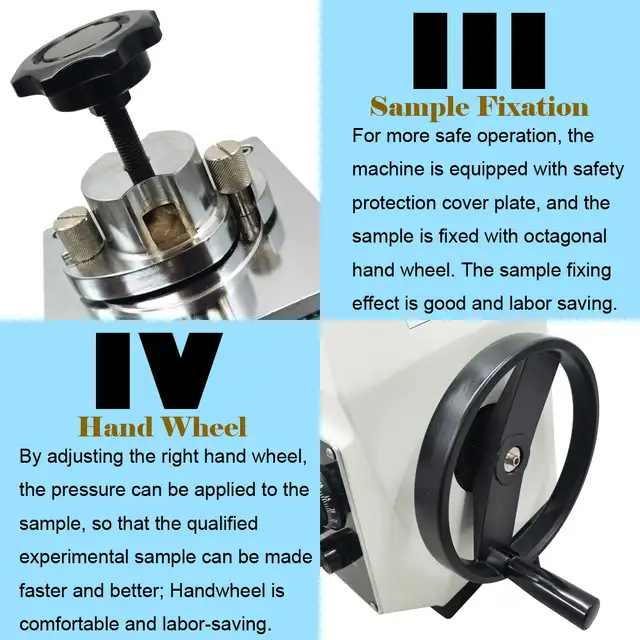

- The forming pressure in the process of sample preparation is automatically compensated by a spring fixed in the collective, and the pressure of sample pressing can be indicated by a signal lamp.

- Thermosetting resin coated metal sample, after a certain temperature and pressure, together with the embedded sample in the heating condition molding, to ensure the stability of sample quality.

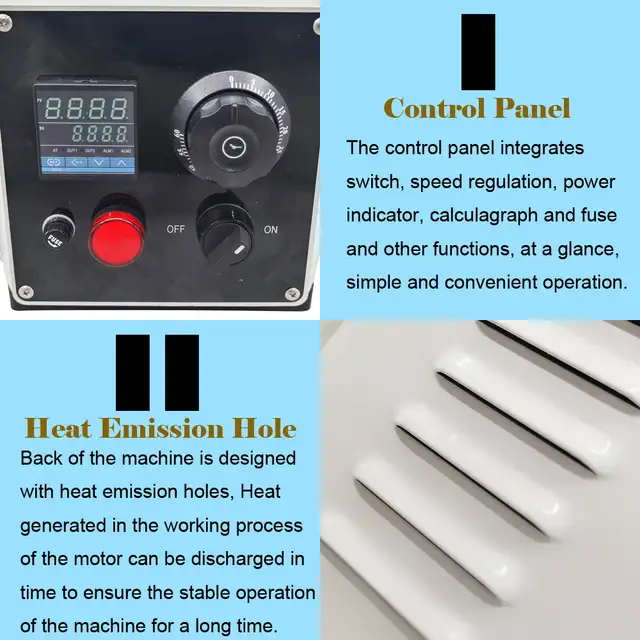

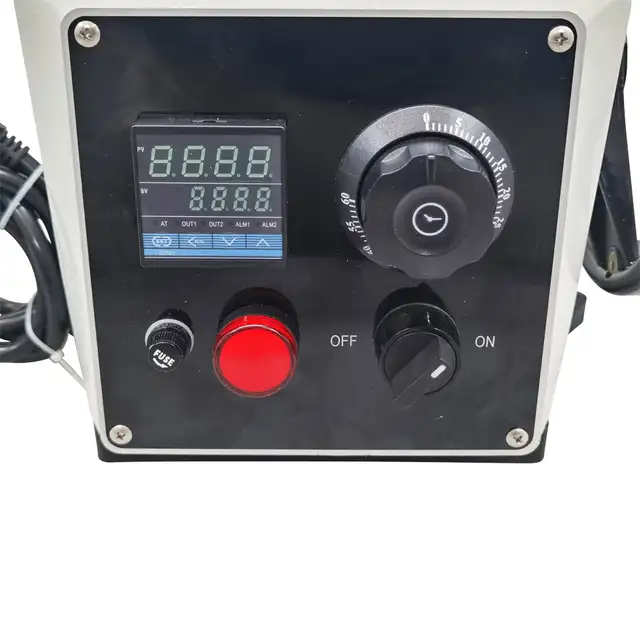

- Equipped with digital display temperature controller, so as to realize real-time temperature display and temperature independent setting.

- The semi-automatic sample preparation is realized by configuring the timer, which greatly improves the working efficiency.

- Small size does not occupy space; Simple operation, stable and reliable; The preparation time of each sample is 8-10 minutes, and the ideal sample smooth as a mirror can be obtained.



Item Included(056186)

Specimen press machine *1 Heat block *1 Fuse *1

Thermocouple *1 Spoon *1 English manual *1
