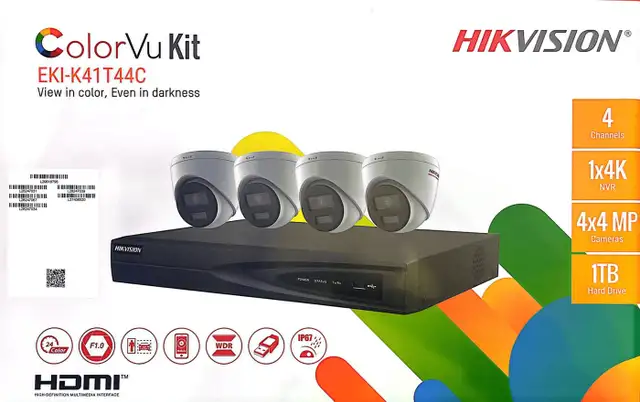

EKI-K41T44C
4 x 4 MP ColorVu Turret IPC 1 x 4-ch 4K PoE NVR KIT

Camera
• 4 MP (2560x1440)
• 2.8 mm Lens
• 120 dB True WDR
• White Light, up to 100ft (30m)
• Supports H.265
• Water and dust resistant (IP67)
• Operates in -22° to 140° F (-30° to 60° C)
• Motion Detection 2.0 with Human/Vehicle Analysis
NVR
• Records up to Four 4K IP Cameras
• 4K HDMI Output
• Supports H.265
• PoE Plug and Play
• 1 TB Surveillance Hard Disk Drive
• Motion Detection 2.0 with Human/Vehicle Analysis

 Specification - Camera
Model: DS-2CD1347G2-LUF (2.8mm)
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Day & Night 24/7 color imaging
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8mm
Focal Length & FOV horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2 m to ∞
DORI
DORI D: 64 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265 /H.265/H.264 /H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region(s) for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0 , Firefox 52.0
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone Yes
Reset Key Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
Linkage
Upload to FTP/memory card , notify surveillance center, send email, trigger recording,
trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Metal & Plastic
Dimension Ø 109.9 mm × 103.6 mm (Ø 4.3" × 4.1")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 420 g (0.9 lb.)
With Package Weight Approx. 650 g (1.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 A1: 2019, EN
50130-4: 2011 A1: 2014
RCM: AS/NZS CISPR 32: 2015
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014 A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
