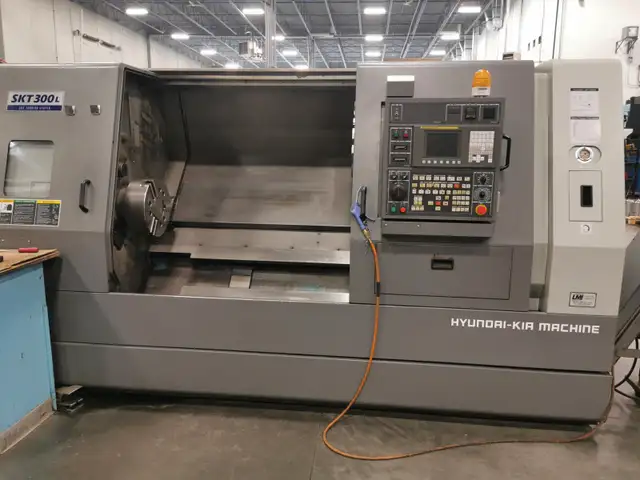

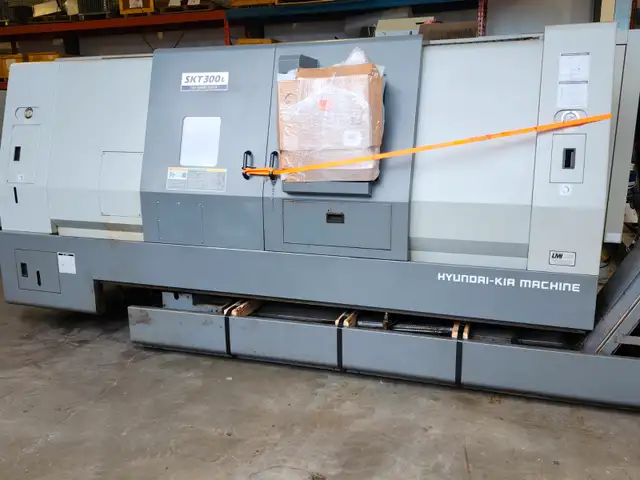

2008 Hyundai Kia SKT 300L
CNC controller Fanuc 0iT
Swing 29.5"
Maximum cutting diameter 22"
Maximum workpiece length 49.3"
Travel X axis 14."
Travel Z axis 52.5"
ways Boxed
Spindle A2 8
Max bar work diameter 3.54"
Spindle Bore 4.02"
Max RPM 3600
Rapid traverse X axis 787 ipm
Rapid traverse Z axis 945 ipm

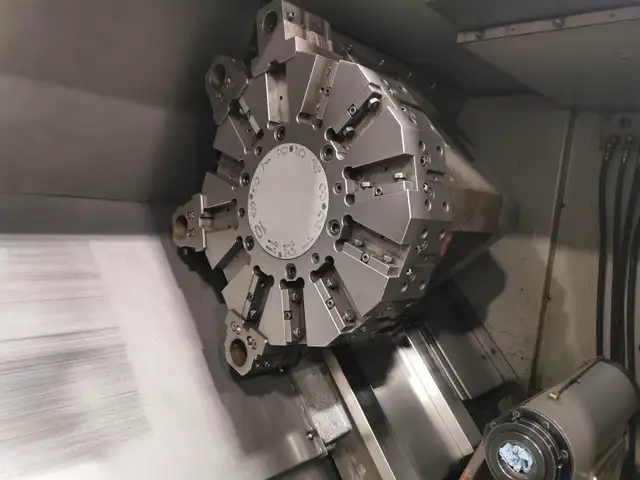

Turret 12 Tools
Tool size (Square Shank) 1" sq
Tool size (Round shank) 2"
Index time(1 station) .3 sec

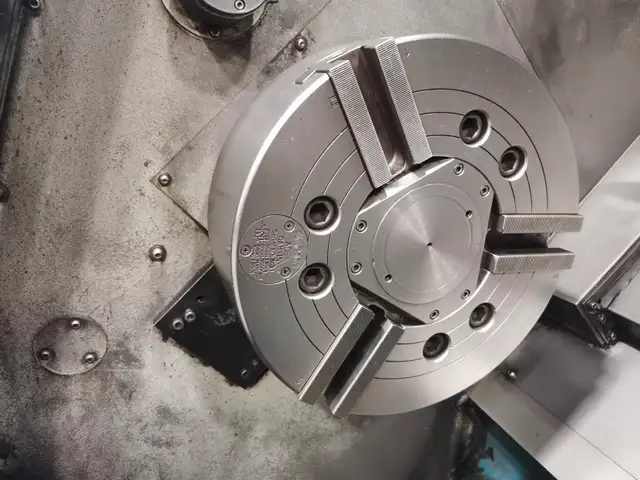

Chuck 12"
Horsepower 35 HP
Geared Head 2 Gear ranges
Torque 810 ft-lbs
Work light Yes
Weight 14,787 lbs
Bed 45 deg
Coolant system 63 psi
Autmatic Tool Setter Yes
Tailstock quill diameter 3.9"
Tailstock quill travel (programmable) 5.1"
Tailstock body ( programmable position with Turret )
Tailstock quill internal taper MT #5
Chip conveyor( side discharge)

Located in Edmonton, Alberta, Canada
