Item number: 160408
-

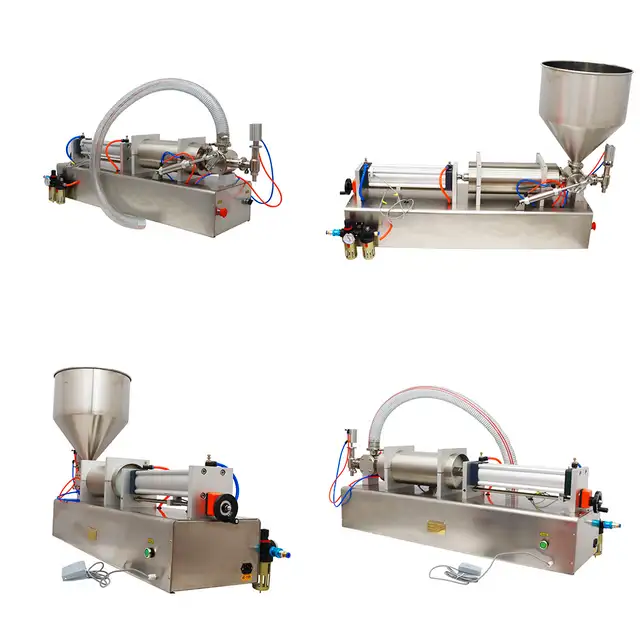

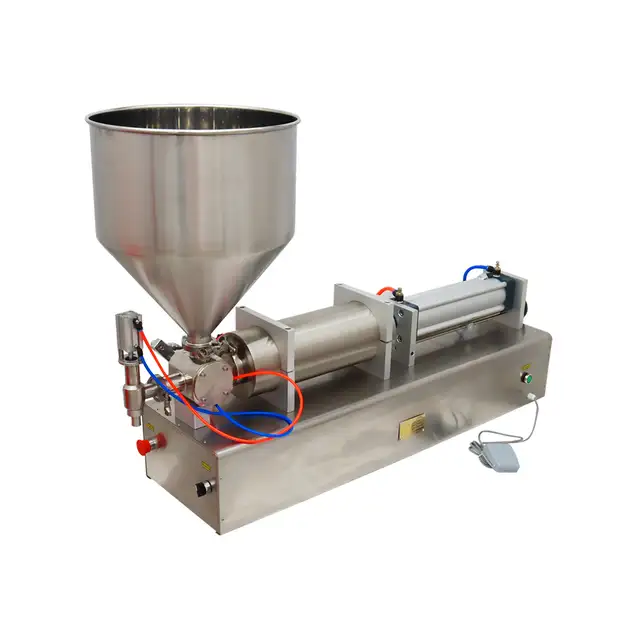

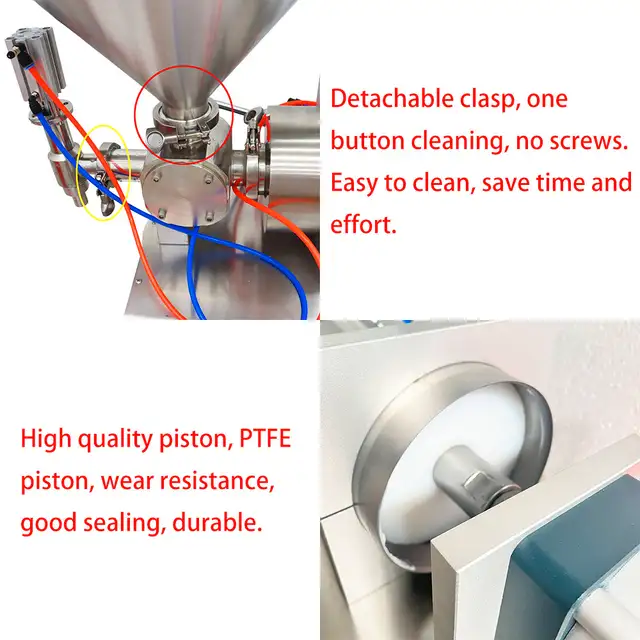

The semi-automatic piston filling machine produced by our company has the advantages of simple and reasonable structure, high precision, convenient cleaning and simple operation. The contact area with the material is made of 304 stainless steel, in line with GMP requirements. The sealing parts are made of PTFE and silica gel. They have the advantages of corrosion resistance, aging resistance, high temperature resistance, good sealing and so on. They are ideal filling equipment for food, pharmaceutical, chemical, daily chemical, petroleum, pesticide and other industries.

This machine has two methods, foot switch filling and continuous automatic filling; the two filling methods can be switched arbitrarily. It is recommended to use the foot switch for filling at the beginning.


1.This product is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid.
2.The filling volume range is between 1000ml - 5000ml. And the machine should connect air compressor for working.First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.

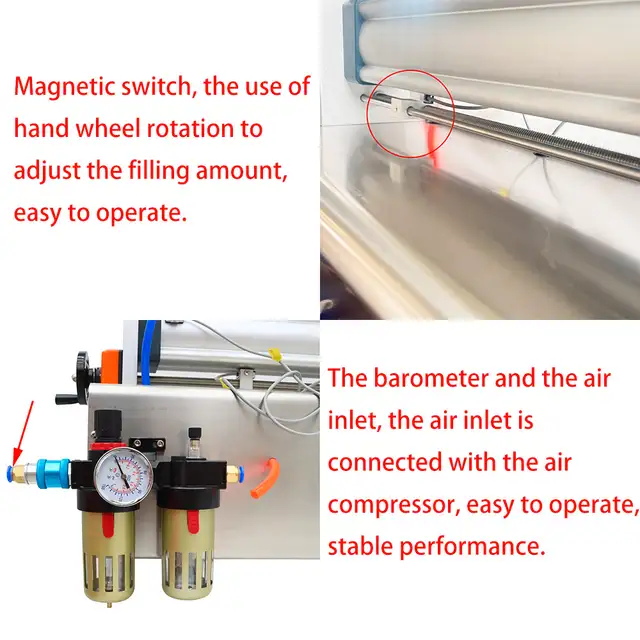

3.This series of models need to be equipped with external air compressor, air compressor exhaust should not be less than 0.1m3/min, equipped with pressure should be able to adjust to a range of 0.4-0.9Mpa.

4.For the materials with large filling viscosity and poor fluidity, which need heating or pressure or mixing filling, please consult us to recommend purchasing the mixing model, heating model and heating mixing machine.

(Note1:We only sell machines, do not match air compressors, customers need to buy their own.)


(Note2: If you are not sure whether the material can be filled with this
machine, please consult before placing an order)


Product parameter:
Voltage: 110V/60Hz
Material The surface is stainless steel
Pneumatic
Filling volume (ml): 1000-5000ml
Filling accuracy (FS) ±0.5%
Production capacity (cycle/min): 1-25
Applicable tolerance (m3/min): ≥0.1

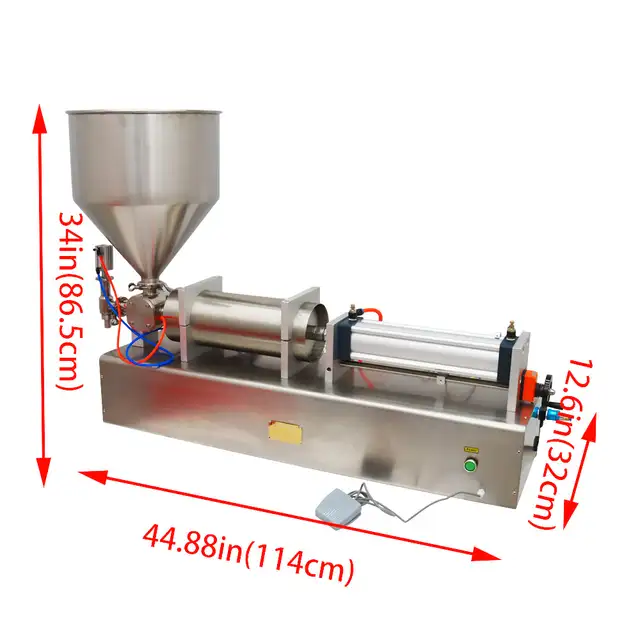

Product size: 44.88*12.6*34in(114*32*86.5cm)
Net weight: 57kg (125 lb)
Applicable pressure (Mpa): 0.4-0.9


Features:

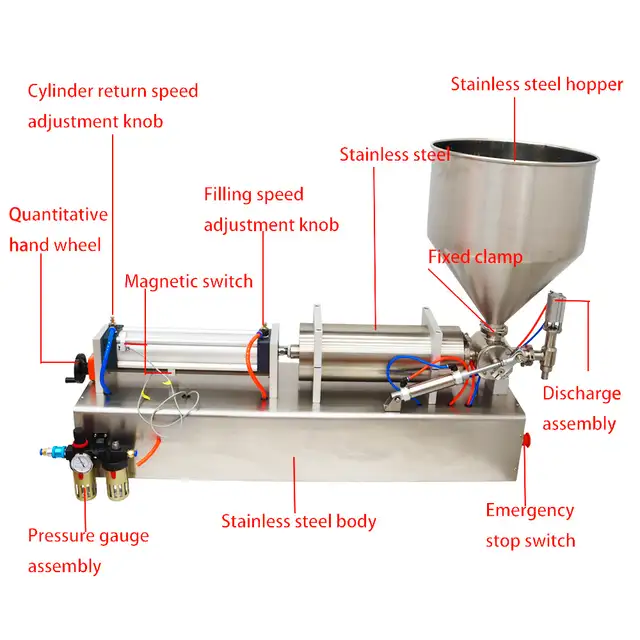

Adjust the speed of the cylinder moving piston rod:
The end near the moving rod (away from the handwheel) is the outlet control valve (Adjust the speed of the cylinder moving rod to push out the material);
The end away from the moving rod (near the handwheel) is the intake control valve (Adjust the speed of cylinder moving rod recovery).

Clockwise downward, the discharge speed becomes slower;
Counterclockwise upward, the discharge speed becomes faster.

This machine is suitable for materials with poor fluidity, such as water, shampoo, toothpaste, honey, cream, lotion, butter, ice cream and so on.



Product safety precautions:
This series of filling machine is only suitable for filling liquid, low concentration paste .
To ensure safe production, please read the following precautions carefully:
1. Use a power supply and air source that conforms to the requirements of this machine . The stability of the air source must be maintained under continuous working conditions.
2. Before disassembling, washing or repairing this machine, please be sure to turn off the air source and power supply first.
3. The rear half of the machine (near the control buttons) and the lower part of the machine frame are equipped with electrical control components. Under no circumstances should the body be washed directly with water, otherwise there will be danger of electric shock and damage to the electrical control components.
4. After the power switch is turned off, there is still voltage in some circuits in the electrical control of this machine. When repairing the control circuit, please be sure to unplug the power cord.
5. Do not keep your eyes close to the filling head during work, pay attention to personal safety.
6. Do not put your hand on the central axis of the cylinder during the work process, pay attention to pinching your hands.
7. Before using materials for filling, it is best to clean the machine with detergent first, and then clean it with clean water, so as to avoid oil stains or foreign materials and materials mixing, which will lead to waste of materials and damage to the machine.
When the paste filling machine is not working, please cover the dustproof cover of the hopper to prevent dust or other debris from entering the hopper and causing material waste and machine damage.

Affected by the following factors at work:
1. The factors that affect the filling accuracy are: the stability of the compressed air, the uniformity of the material, the filling speed, etc.
2. The factors that affect the filling speed are: the viscosity of the material, the stroke of the cylinder, the size of the cylinder, the size of the discharge nozzle, the proficiency of the operator, etc.

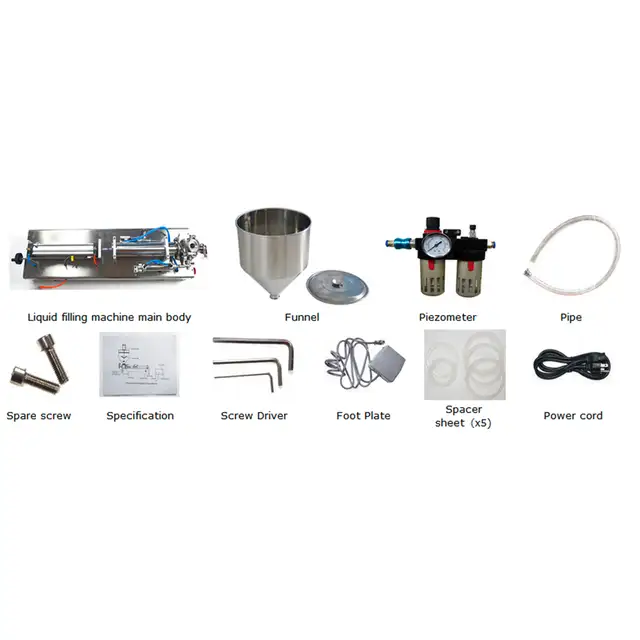

Item included: 160408
1x Paste liquid dual purpose filling machine
1x Piezometer
1x Funnel
1x Pipe
1x Specification
1x Screw Driver
1x A set of hex socket screws
3x Spacer Sheet
2x Sealing ring
1x Power Cord
2x Spare regulating valve
1x Magnetic switch
