Item number: 028277
-
RCOG-25V multi-functional drilling and milling machine has rich functions, can meet the metal, wood, plastic, Buddha beads and other finishing, all copper brushless motor, strong power, simple operation, durable, high processing accuracy, is the home DIY processing of various parts of the necessary machine.

Parameters:
1. Model: RCOG-25V
2. Voltage: AC110V/60Hz
3. Motor: 1100W brushless motor
4. X axis stroke: 18.9 in (480mm)
5. Y axis stroke: 6.9 in (175mm)
6. Z axis stroke: 11 in (280mm)
7. Spindle incline Angle: ±90°(The nose can actually rotate 360 degrees)
8. Max. drilling diameter: 0.9 in (25mm)
9. Max. Face screening capacity: 2.5 in (63mm)
10. Max. vertical milling capacity: 0.79 in (20mm)
11. Distance from spindle to table: 13.8 in (350mm)
12. Spindle taper: MT3
13. Spindle stroke: 2 in (52mm)
14. The Range of spindle speeds: 20-2250 RPM
15. Table size: 27.5* 7.1 in (700*180mm)
16. T groove width: 0.47 in (12mm)
17. Package size: 36.2*23.6*36.2 in (92*60*92cm)
18. Weight: 295lb (134kg)

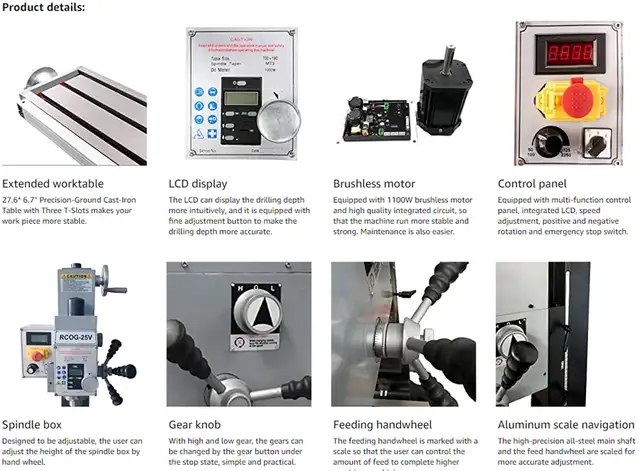

Features:
1.Powerful function: This is a multi - functional drilling and milling machine, can complete drilling and milling operations. Also can be used for precision parts processing, sample processing and model.
2.Brushless motor: It USES a 750W brushless motor with strong power and easy maintenance.
3.All metal: It USES an integrated spindle and brass gear, which makes it not only precise but also durable.
4.Variable-Speed: Weather you need high speed or lower speed spindle operations this machine can handle it. Boasting a 50-2250 RPM spindle speed for the extreme precision your project needs.
5.It is important to note that this lathe has only a metric scale.

Item included: 028277
Drilling/milling machine *1
Drill chuck * 1
Parallel-jaw vice * 1
Drill chuck retaining pin *1
Milling chuck fitting set *1
Tool set *1
User manual *1
