Item number 017301
[Parameter]- Marking area: 300 x 200 mm ( 12 x 8 inch); Power: 400W; Air pressure: 0.2-0.5MPa; Marking speed: line speed 50 mm/s; Max item height: 32 cm (12.6 inch); Marking depth: 0-2 mm (according to the material).
[Effective Marking]- The high-hardness marking needle provides a strong intensity, which makes the pneumatic marking machine mark deeper with better effect than the electric marking machine.
[Portable Type]- Portable and compact, made of durable material; the pneumatic machine is easy to move and work in different places with compact and light-weight design.
[Strong Compatibility]- The metal tag nameplate engraving machine adopts Windows operating system (Windows XP / 7/8/10 32BIT 64BIT), with a friendly interface and easy operation. NOT suitable for Mac.
[Widely Application]- The name plate marking machine can be used to mark codes, English letters, logos, graphics, serial numbers, VIN codes on various metals such as aluminum, steel, stainless steel, copper, brass, gold, iron, etc.
-
Parameters:
Marking size:30cm*20cm (12"x8")
The marking speed:Line speed 50mm/s
The marking depth:0-2mm(according to the material)
Max item height:32cm

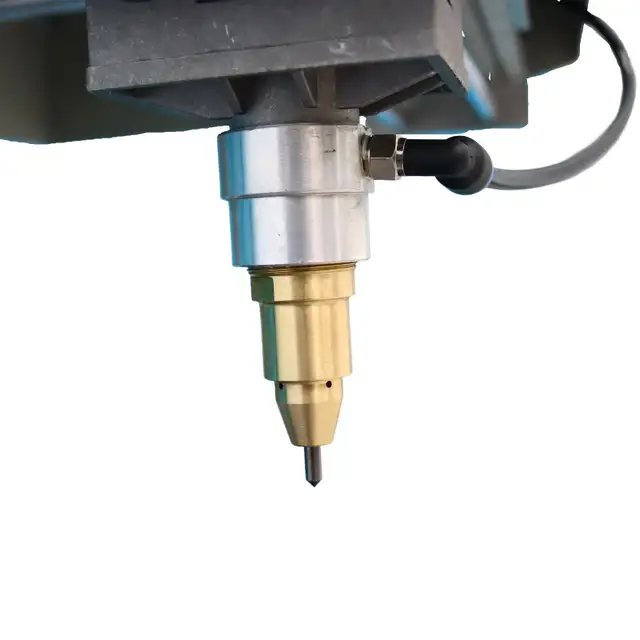

Needle:HRA92
Marking type:Pneumatic marking
Power: 400w
Air pressure:0.2-0.5MPa
Control Software:ThorX6 Control Systerm
Operating system:Windows xp/7/8/10 32bit 64bit
-
Questions And Answers
1-i need to know the smallest heigth of character (millimeters)
Depending on the material,
Aluminum and copper are soft, with a minimum character of about 2mm (height).
High hardness of stainless steel, the minimum character is about 1mm (height)
2-"I need to know the material of the base and the hardness of it, because in case i buy it, i will have to make a hole in the base (60mm) so i can mark larger items."
The material used for the 1711 base is: cast iron
The material used in 2030 is: steel plate
These two bases are free to open hole in the surface.
-
Item include:

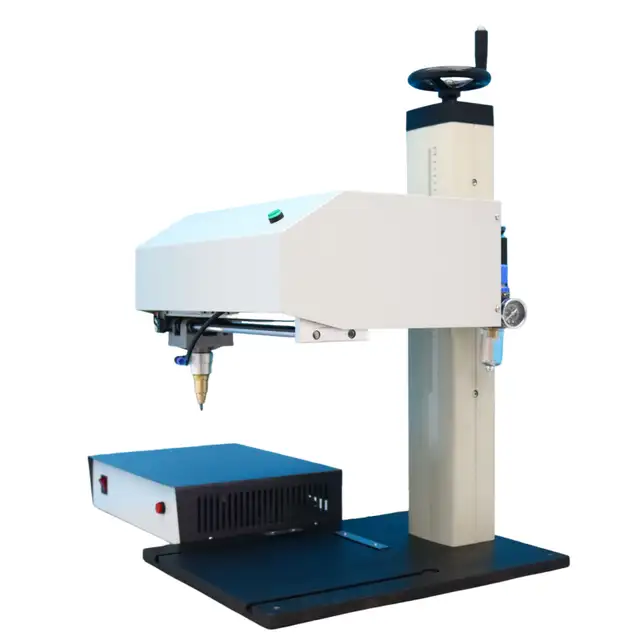

One set of 2030 Metal Printing Tools Pneumatic Marking Machine #017301
