Item number: 021088
-

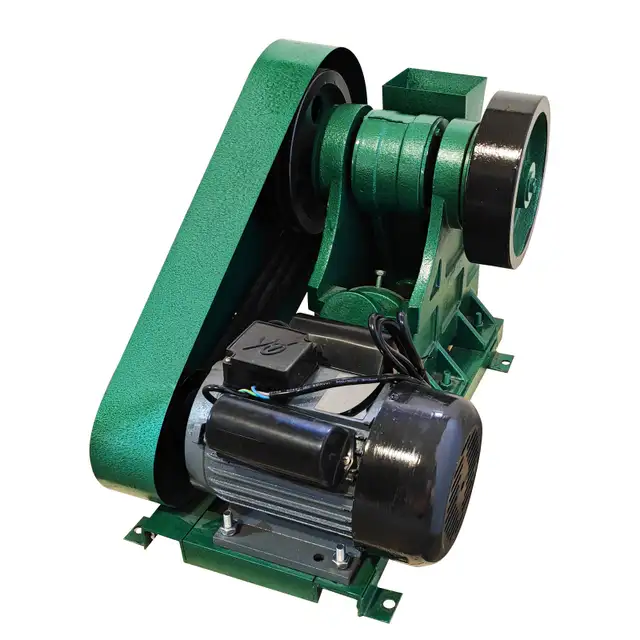

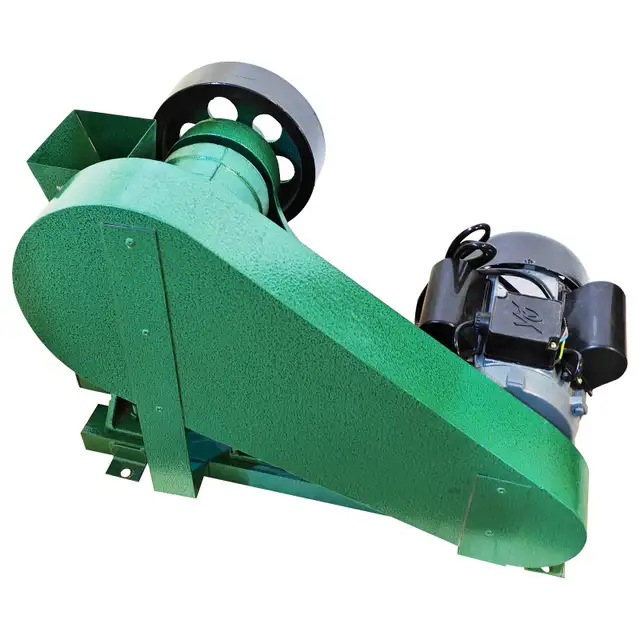

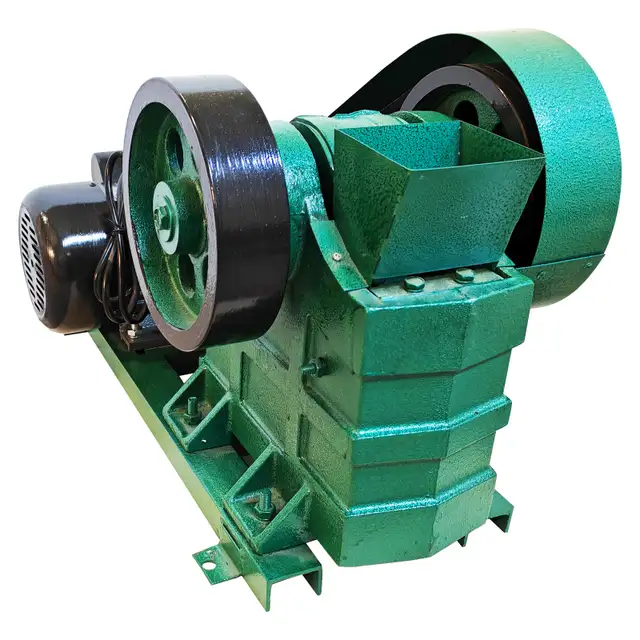

This jaw crusher is made of manganese steel which has higher hardness than carbon steel.
It is applicable to medium and fine crushed materials for the purposes of laboratories and production and is primarily provided as environmental protection equipment for coal, electric power, mine, geology, chemical, metallurgy, building material and other industries.
Suitable for crushing materials: Calcite, talcum, cobblestones, kaolin, slag, steel slag, diabase, coom, coalgangue, maifanstone, basalt,iron ore, quartz sand, CaCO3, bentonite ect

Attentions:
1.Install the machine on a sturdy base to avoid uneven force.
2.Put the side of strap against the wall for safety.
3.For the convenience of outlet,install the machine on a proper height.
4.Check the screws and strap before testing machine.
5.No-load test. It's available to use after half an hour of test.
6.It's better to crush medium-hard materials for prolonging the lifespan of the machine.
7.There's a sample power line on the motor, replace a new line in the same way.

Parameters:
Voltage: 220V AC
Power: 1.5KW

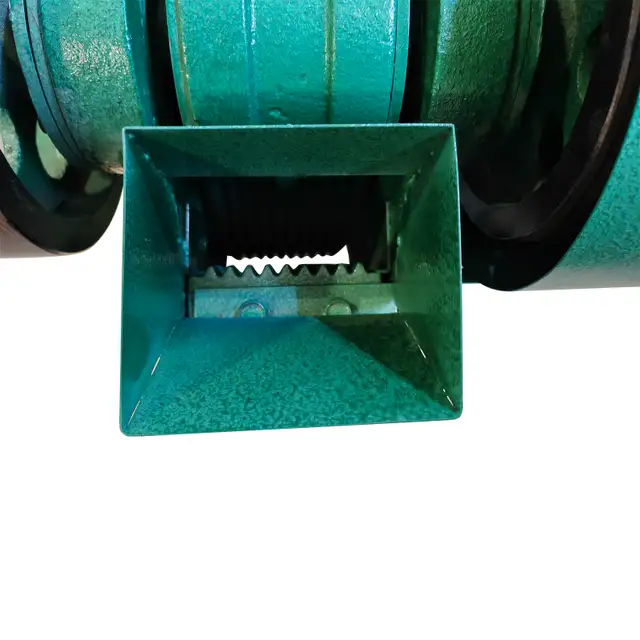

Feeding Inlet Size : 60*100mm
Feeding size: Less than or equal to 55mm
Output size: 2mm~10mm (Adjustable)
Rotating Speed: 1400 RPM
Capacity: 250kg/h
Maximum Input size 3.9 x 2.3 inches
Output size 0.078-0.393inch
Shipped by a wooden box.
Package size: 30.3"x18.5"x20.8" (77x47x53cm)
Package Volume: 0.19m³
Gross weight: 98KG(216lbs)

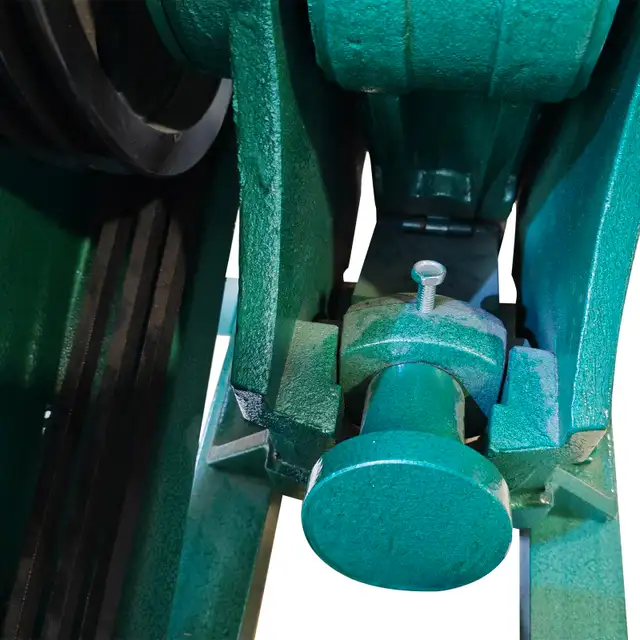

Crushing size can be adjusted.

Items included: 021088
1 set of 220V 100X60 Mini Jaw Crusher
