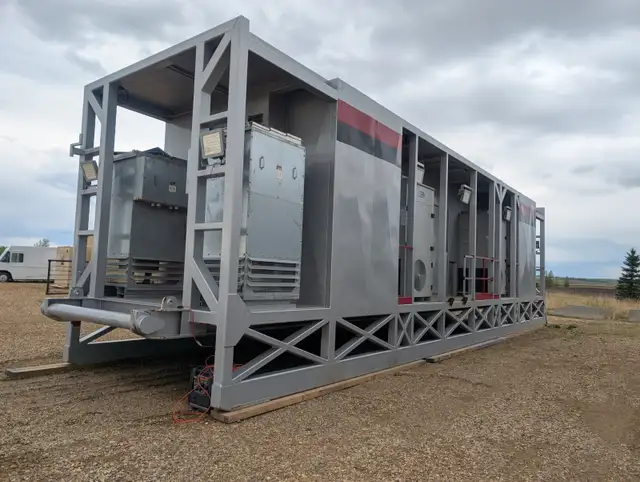

One unit available. Made in 2019, this was part of an automated drilling rig prototype that never went into production. This was never put into service and saw extremely limited use for testing only 100-200 hours. In excellent condition.

Incredible set up with some very valuable tech. Here is a summary of what is included in this rig.

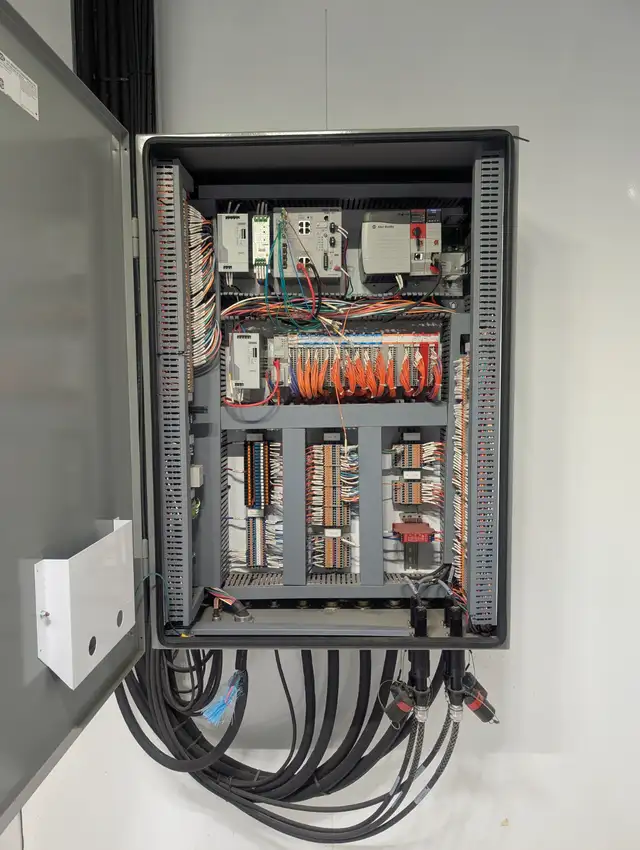

- Allen-Bradley PLC panel w/ AB Array and Additional Components (intact)

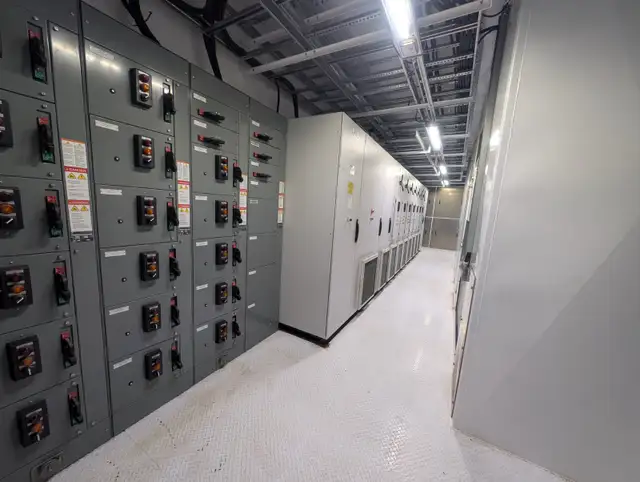

- Allen-Bradley Centreline 2100 Switchgear (breakers and motor starters, all wiring intact)

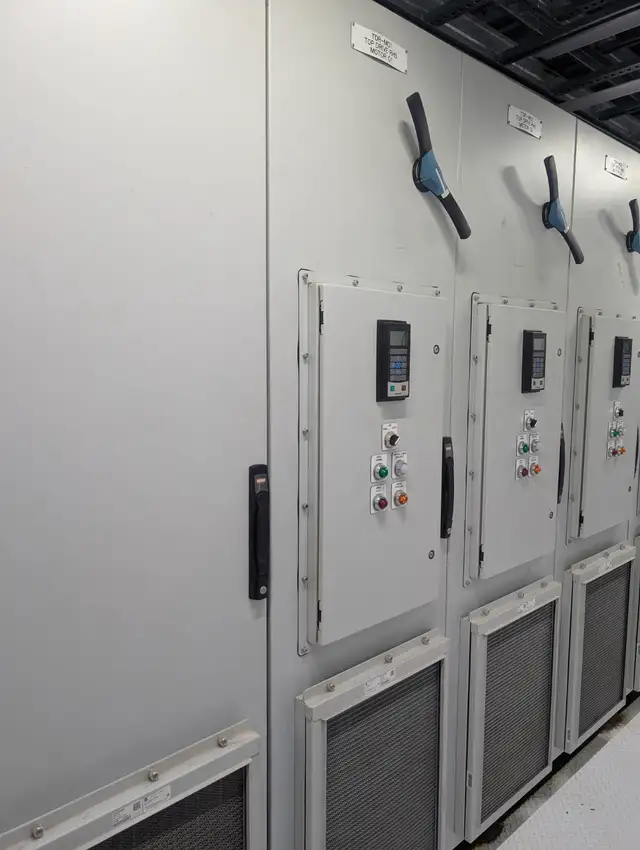

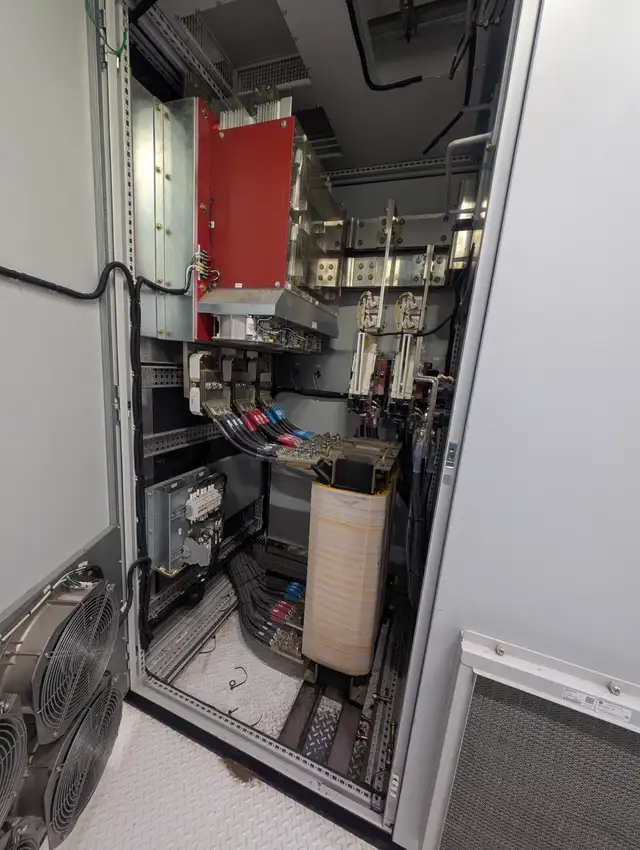

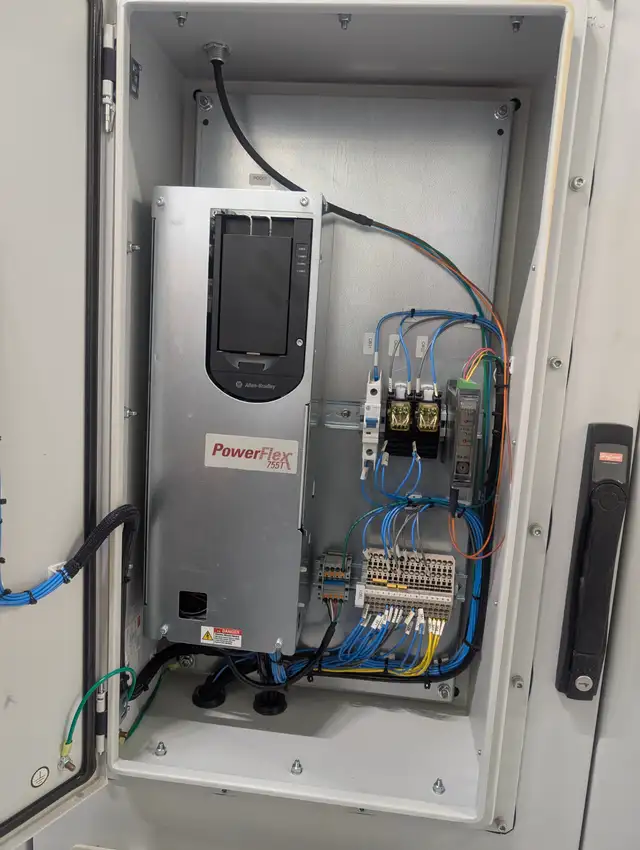

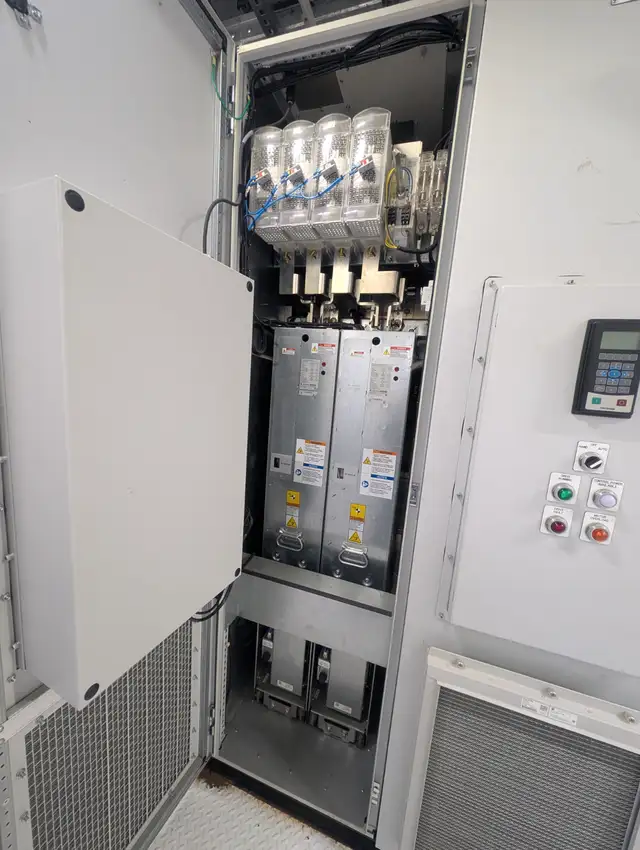

- 7X 600 HP Allen-Bradley Powerflex 755 VFD cabinets. Each cabinet contains two open type AB Powerflex 750 20-750-M12-E395F370 drives controlled by a PowerFlex 755T 20-760-MCPOD1-F8M Drive
Board. Contains 250lbs of interconnected busbar in each cabinet and AB DC Bus conditioners.

- Magnetics Design 4000 AMP 3PH 60 Hz 600 Volts Dry Type Inductor and APS Systems Rectifier, Secondary PLC Panel

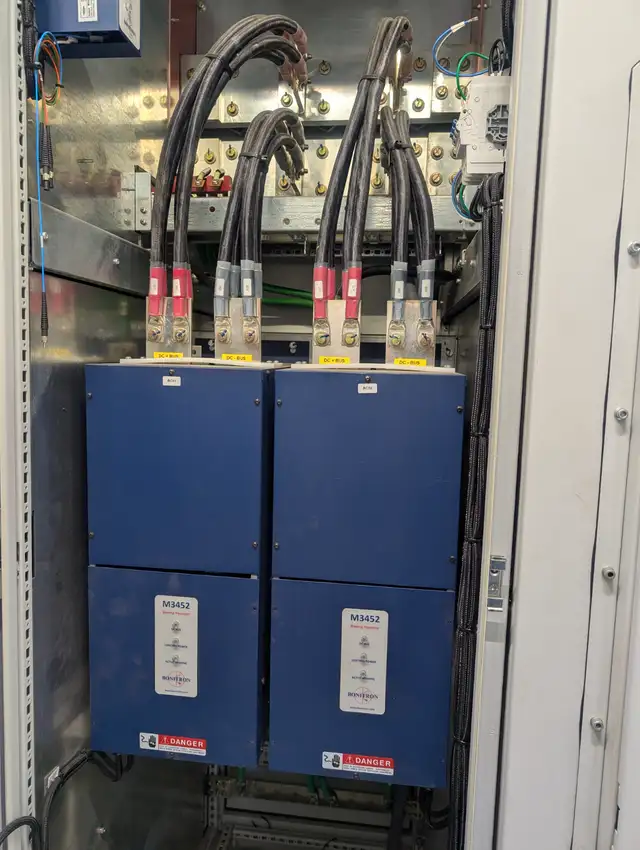

- 2X Bonitron M3452 1600 Amp Braking Transistors, Model # M3452-L1600CT10-R7E

- 2X Post Glover External Dynamic Braking Resistors DB0916 1100 Volts 492 KW Made 05/19

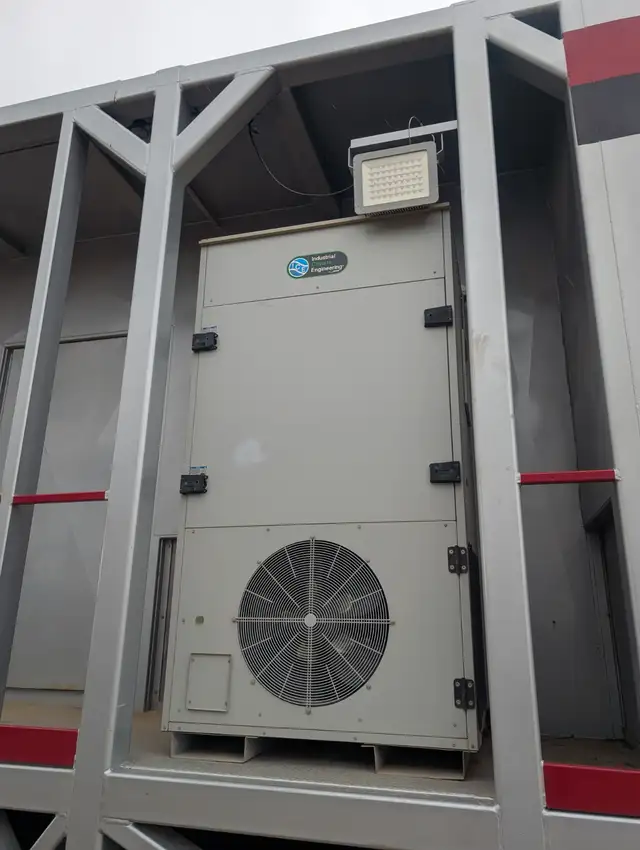

- 2X Exterior HVAC units to provide cooling Marvair Model # : EXNA120ACZ000AU-A2-216-VAR

- Exterior and Interior Explosion Proof Lighting

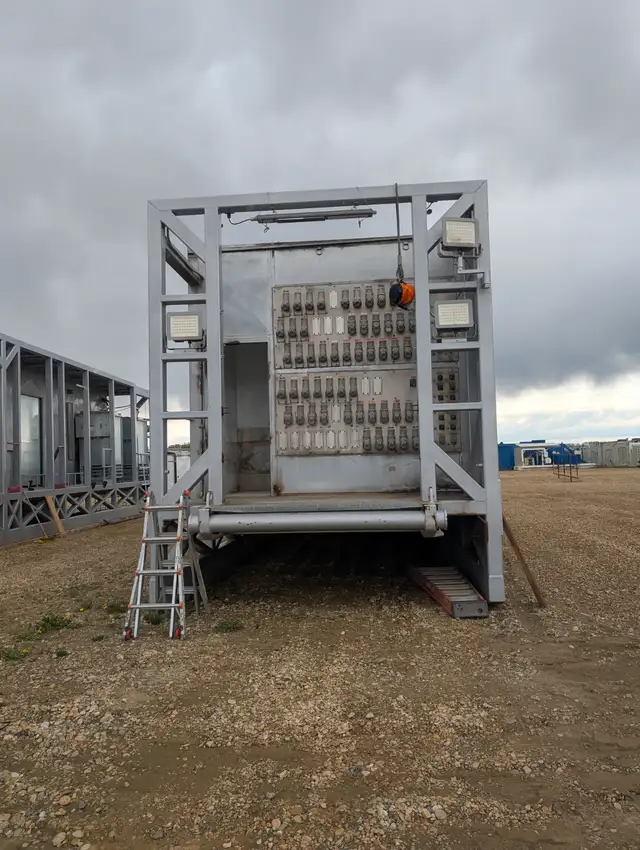

- Exterior plug board and fiber optic couplings.

Overall capacity is as follows;

RATED INPUT- 600VAC, 4000A, 3Φ
MAX SHORT CIRCUIT AMPS- 65kAIC
DC BUS RATING 835VDC, 5000A
DC LINK RATING 2500A
BRAKING CAPACITY PEAK 1600A x 2 @75% DUTY CYCLE
VFD RATING 0-600VAC, ЗФ 7 x 600HP
MAXIMUM AMBIENT 40°C
COOLING METHOD- FORCED AIR
CONSTRUCTED- JUNE 2019

Contact us for more information and pictures. Located in Lacombe, Alberta
