Item number: 022760

Function
Crawler pin remover for chain dismounting machine, using the principle of converting hydraulic energy into mechanical energy, is a special tool for dismantling the crawler pin of the crawler excavator. The electric pump is used as the power source to make the hydraulic jack move forward. Therefore, the pin shaft can be removed smoothly, which is a special tool for the maintenance and assembly of the crawler excavator.

Product information

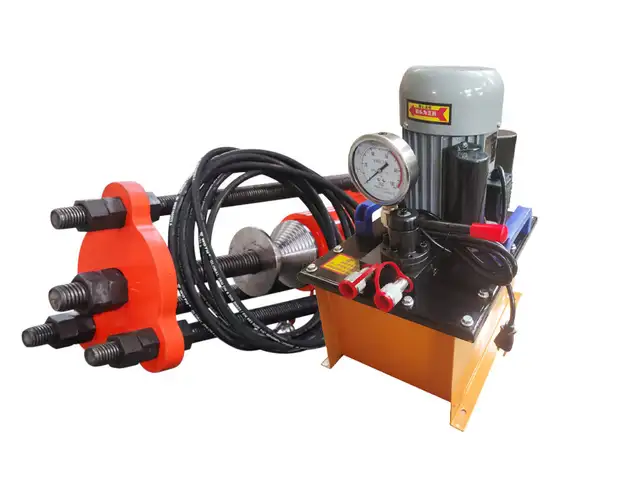

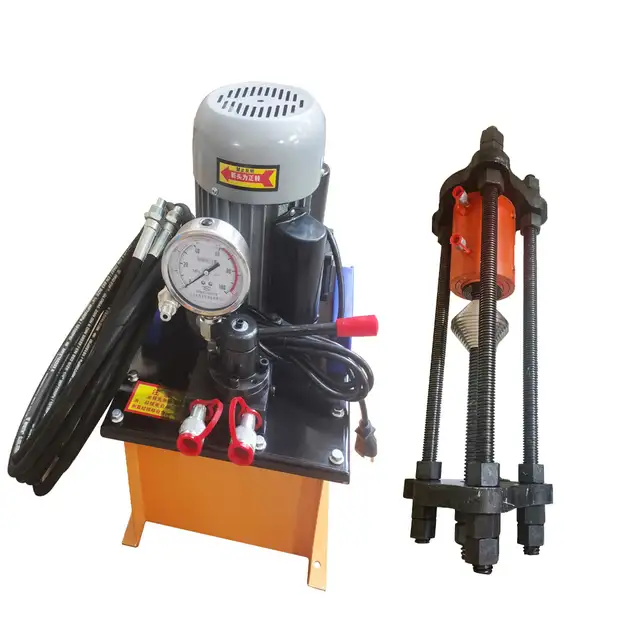

Product Name:100T crawler pin dismantling machine/ electric chain pinning machine / excavator maintenance pressing sleeve pressing chain integrated machine
Rated voltage:110V
Rated power:1500W
Weight:296.96lbs 87.3lbs
Chain range:<50mm/1.97in
Pressure sleeve range:<150mm/5.91in
Screw diameter：40/50mm(1.57in/1.97in)

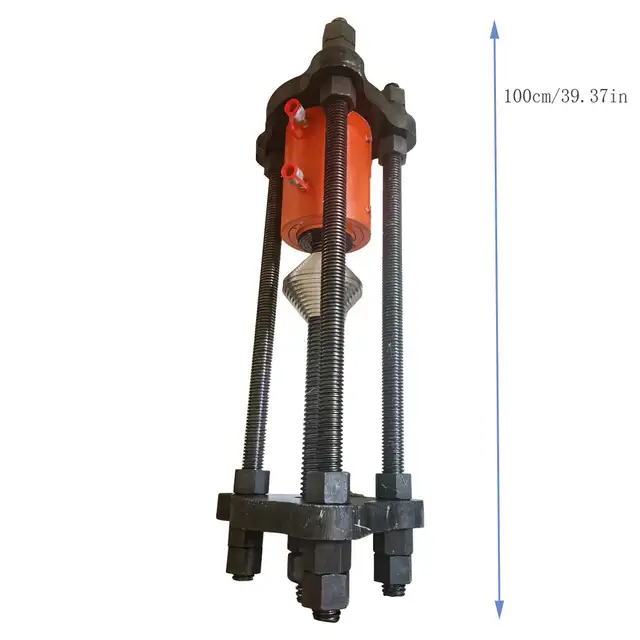

Screw length:1000mm/39.37in

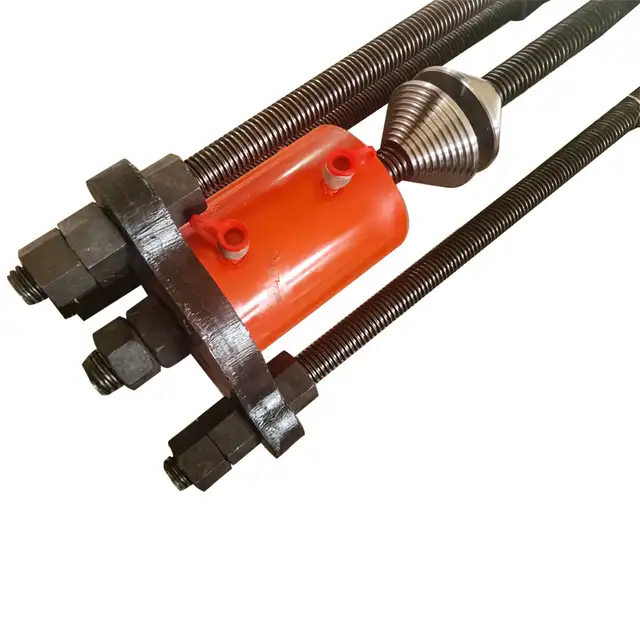

Cylinder stroke:100mm/3.937in

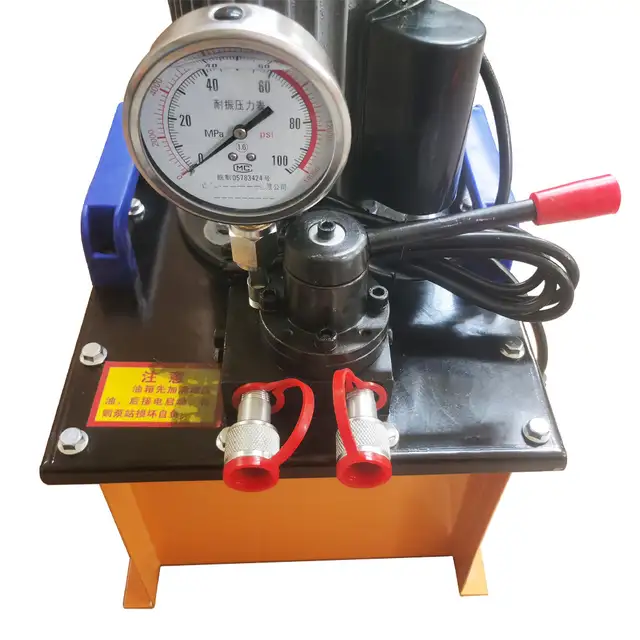

Operating pressure:0-63Mpa

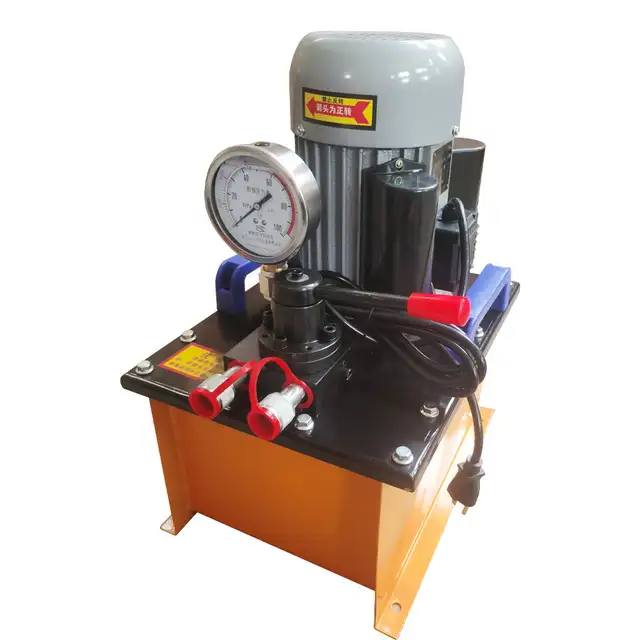

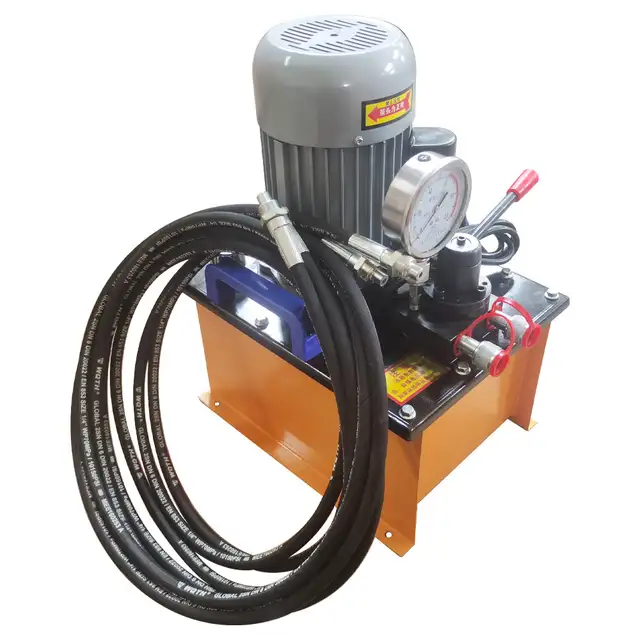

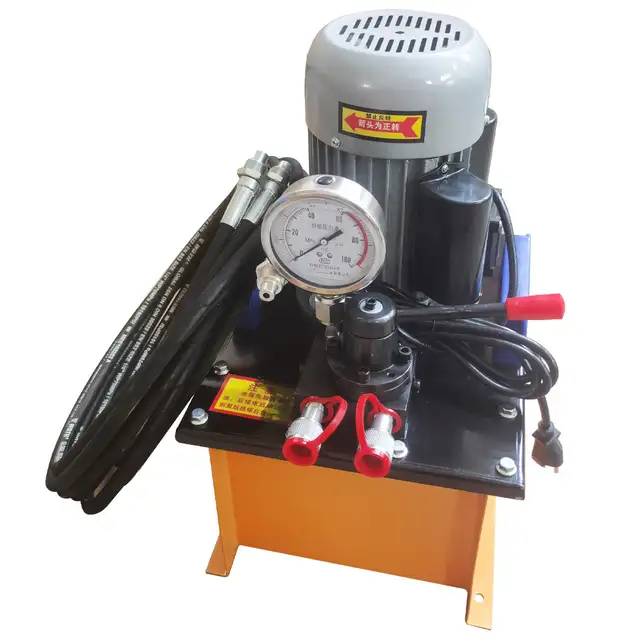

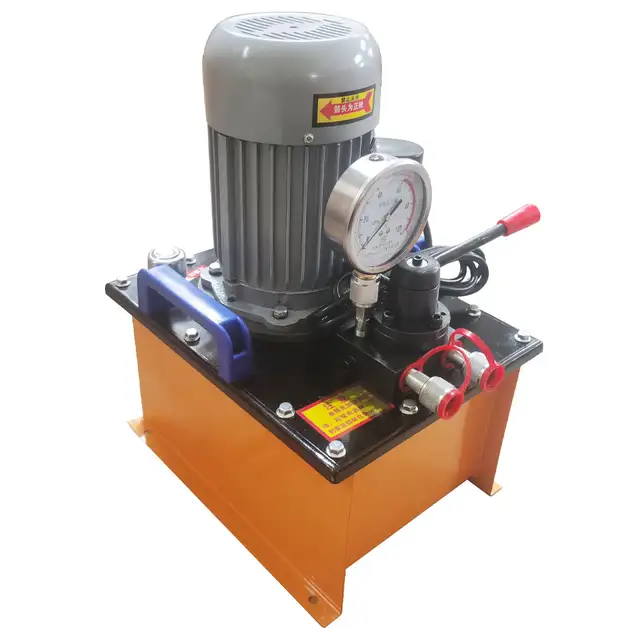

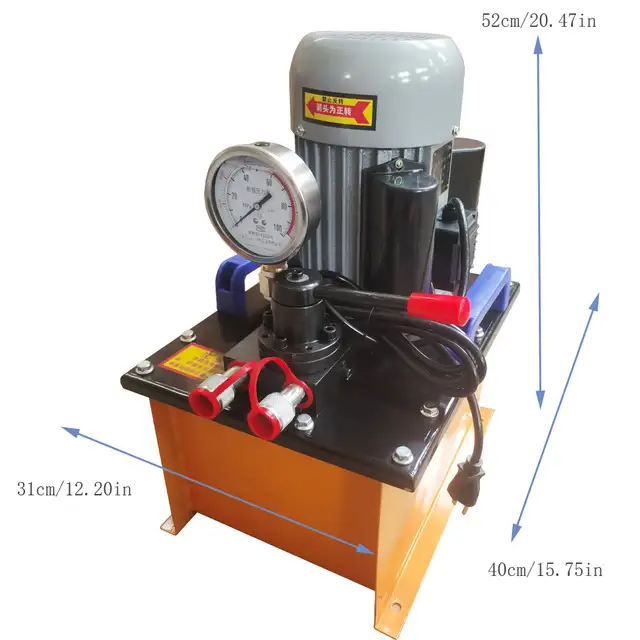

Pump station volume:16L
Note:There will be a little error in manual measurement.
The product pump station is equipped with a plug.
The tank should be filled with hydraulic oil, and then powered on to start, otherwise the pump station will be damaged and pay for itself.
The pump station needs to add 46 # or 68 # anti-wear hydraulic oil by yourself.

Product advantages
Improve replacement efficiency and reduce labor intensity.
Does not damage the track, and can prolong the service life of the track compared to the traditional way of replacing the track.
One machine for two purposes, efficient and fast.

Item Number:022760

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
