Item number: 022260

Product Overview

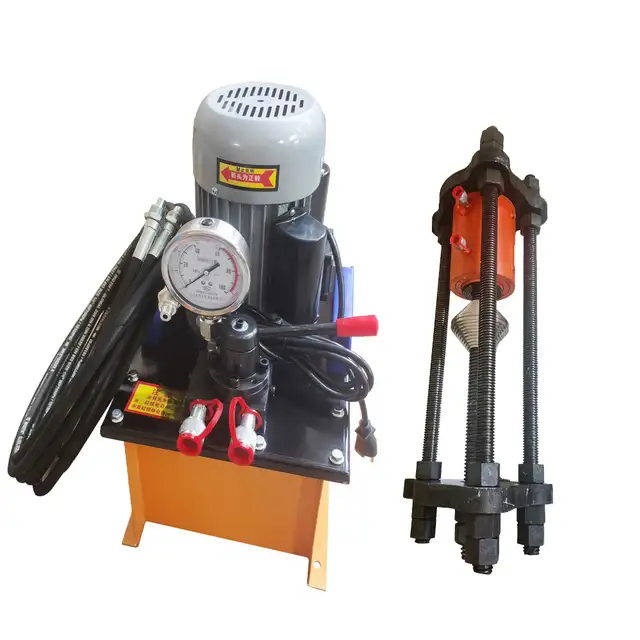

The crawler pin dismantling machine is a special tool for assembling and disassembling sleeves and chains of crawler excavators. It adopts the principle of converting hydraulic energy into mechanical energy and is a special tool for dismantling the crawler pin of the crawler excavator. The electric pump is used as the power source to make the hydraulic jack move forward. Therefore the pin shaft can be removed smoothly.

Product Parameters
Product name 100T crawler pin dismantling machine/electric chain pinning machine/excavator maintenance pressing sleeve and pressing chain integrated machine
Rated voltage 220V Single-Phase
Rated power 1500W
Weight 295.86lbs 89.73lbs
Chain range <50mm/1.97in
Pressure sleeve range <150mm/5.91in
Screw diameter 40/50mm (1.57in/1.96in)

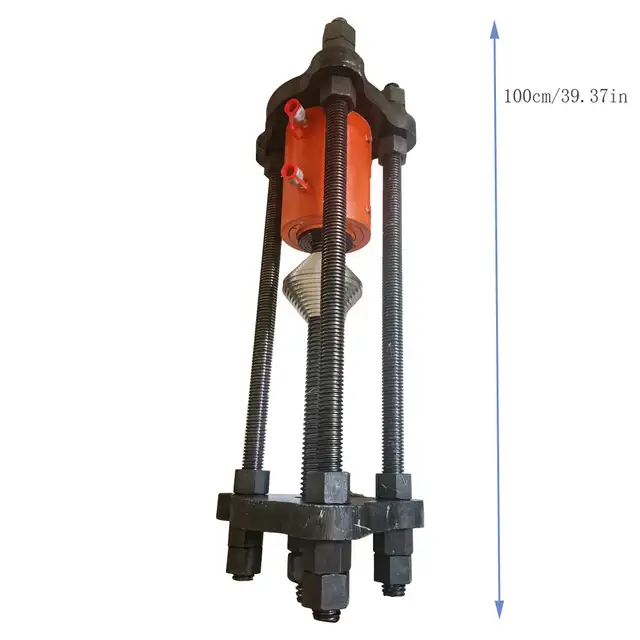

Screw length 1000mm/39.37in
Cylinder stroke 100mm/3.937in
Operating pressure 0-63Mpa

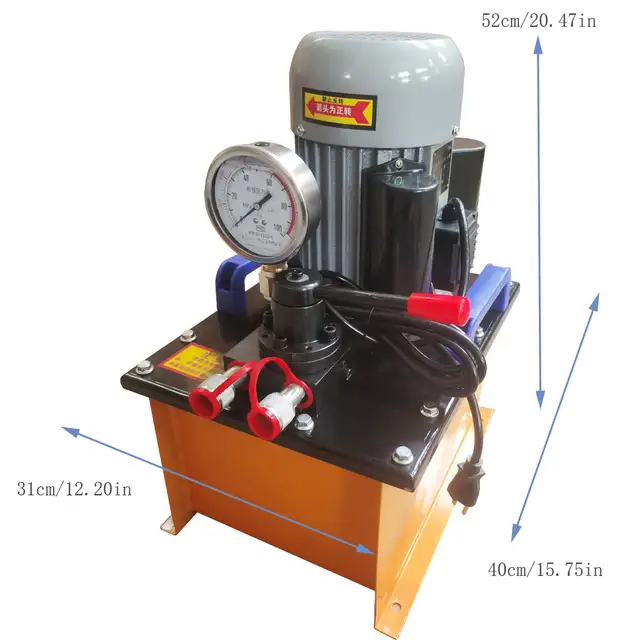

Pump station volume 16L

Note: There will be a small error in manual measurement.
The product pump station is equipped with a plug.
The tank should be filled with hydraulic oil, then the machine is powered on to start, otherwise the pump station will be damaged and the user needs to be responsible for the consequence.
The pump station needs to be filled with #46 or #68 anti-wear hydraulic oil by the operator.

Product Features

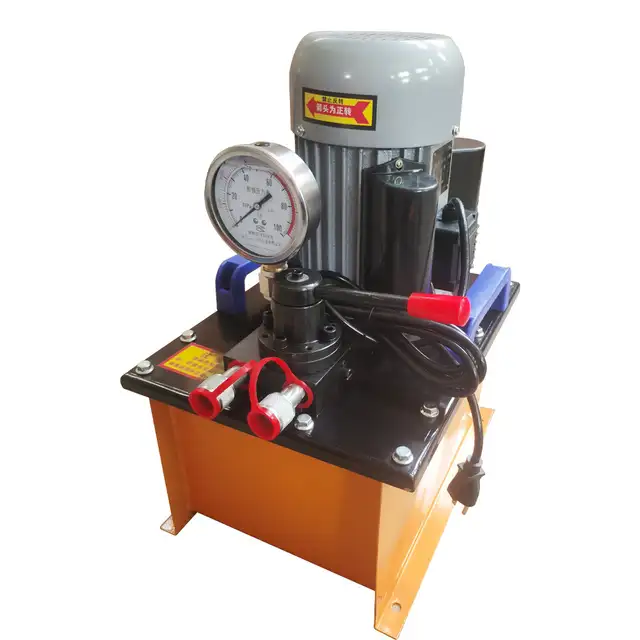

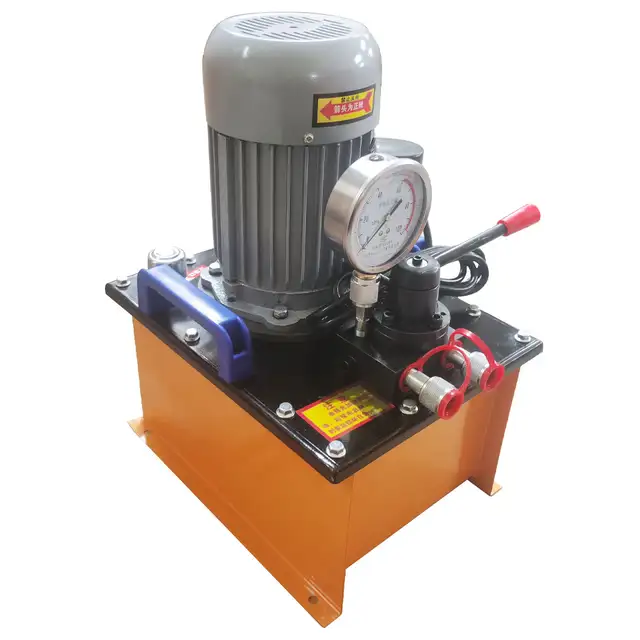

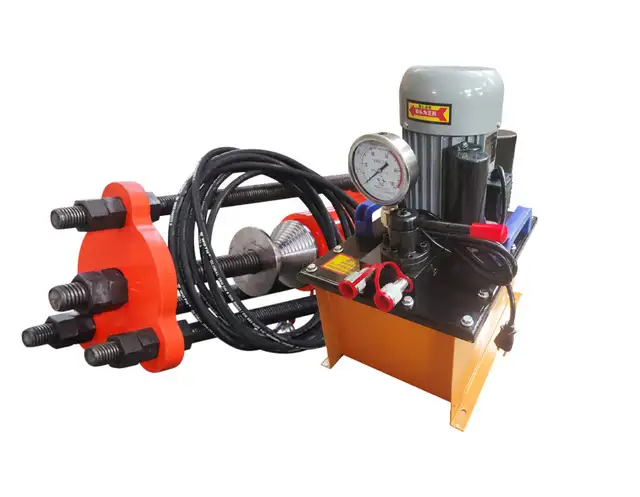

Pressing Machine Body& Electric Pump
Small in size, compact in structure
Convenient to carry, store and use
Adopt multiple treatment and polishing to form the smooth surface
Perfect combination for sleeve and chain pressing operation
　

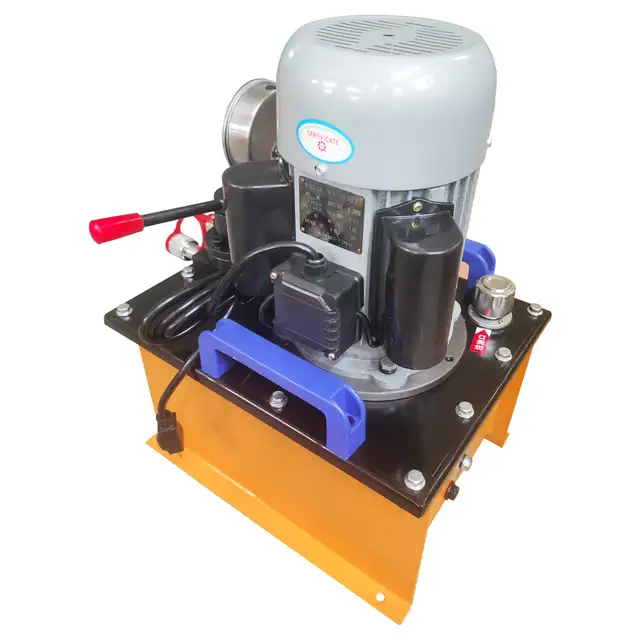

High-Power Copper Motor
Low noise, good stability
High performance, long service life
Stable power output for machine operation
Reliable operation, not prone to burnout

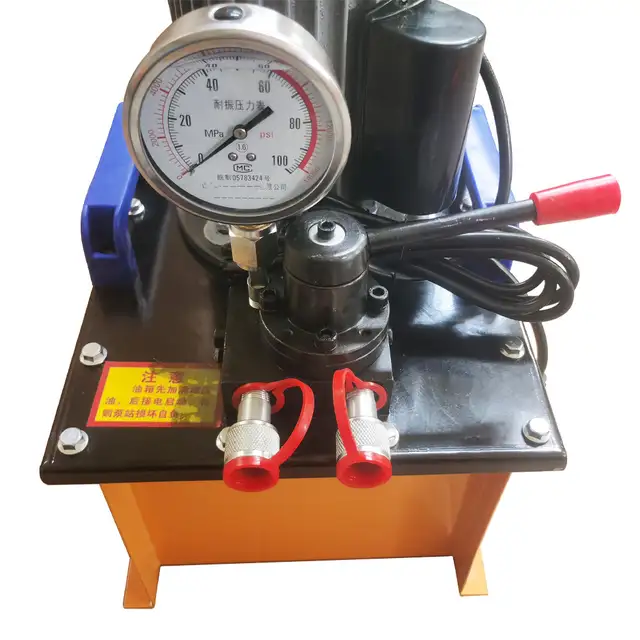

Anti-shock Pressure Gauge
Clear and accurate in pressure display
Indicate the pressure in real time
Effectively avoid vibration and shock
Conveniently observe and adjust the pressure

Manual Directional Valve
Manually control oil output and return
Simple mechanical structure and low failure rate
Immediate feedback, accurate control
Free of external dependence, pure mechanical operation
　

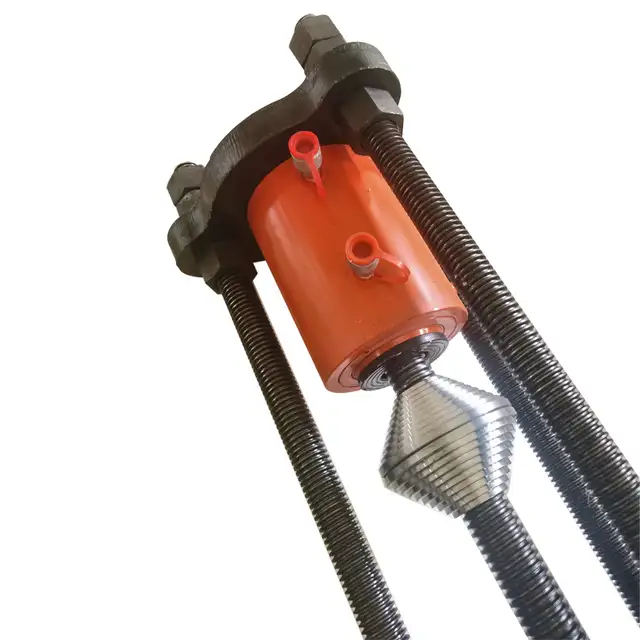

Thickened Hollow Cylinder
High working efficiency
High safety coefficient, long service time
Easy and convenient to operate and use
Exquisite workmanship and technology
　

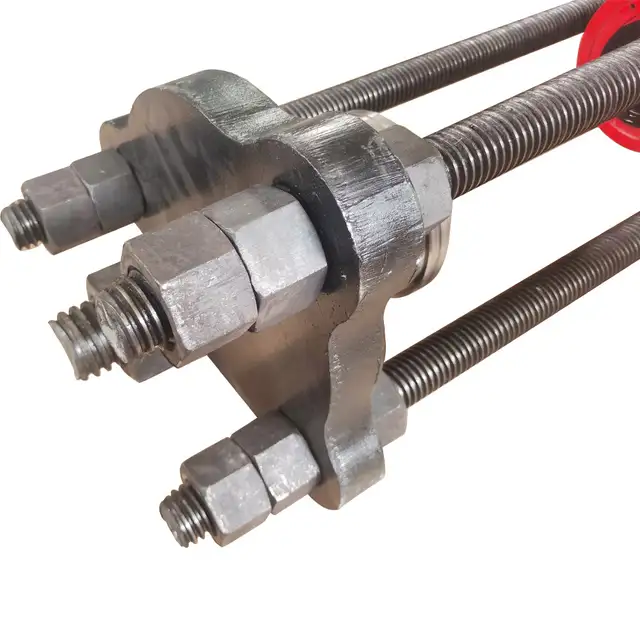

Locating Sleeve
Compact structure, accurate design
Long service life, high locating reliability
Have a stabilizing and fixing effect
Reduce frictional wear and improve work efficiency
　
Application
As a special device for efficient assembly and disassembly of chains, the sleeve pressing & chain pressing integrated machine can be widely applied to road construction, high rise building, tunnel construction, bridge construction and so on and is suitable for the fields of electromechanical engineering, metallurgy, machinery, shipbuilding, construction, etc.

Item Number (022260): 1 x 100T pressing sleeve pressing chain integrated machine 220V
