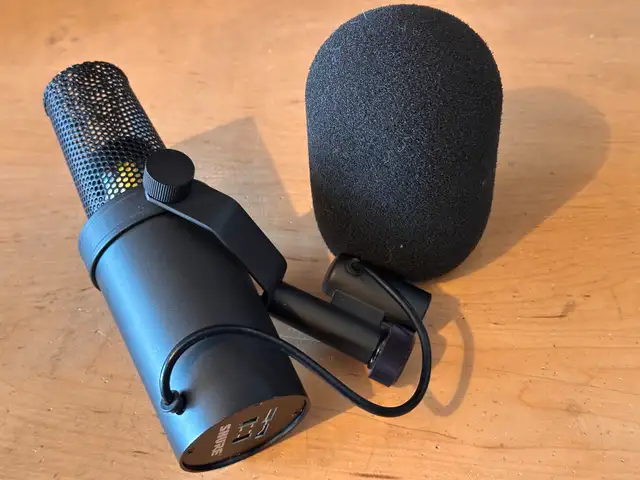

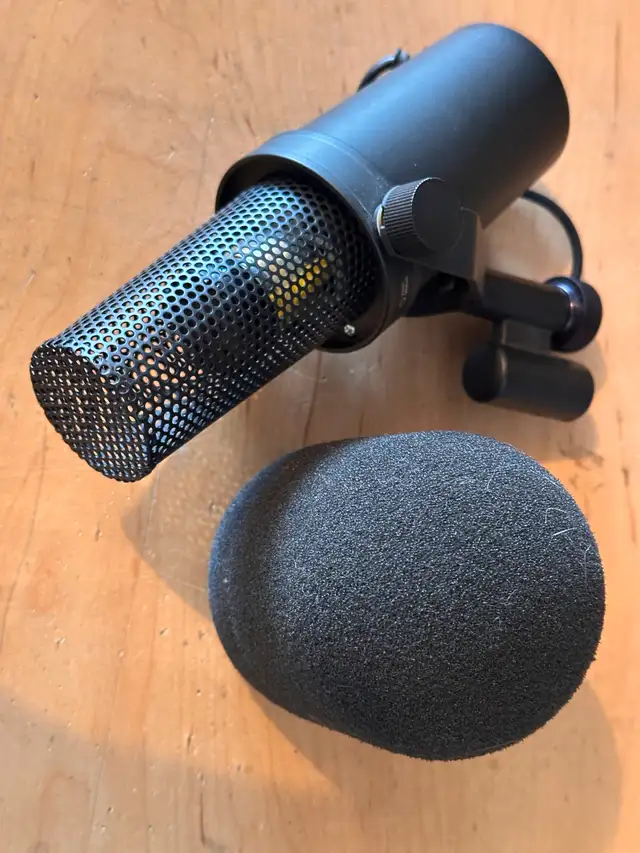

The SM7B is a selectable frequency response microphone that delivers warm and smooth audio in close-proximity studio and vocal applications. Optimized shielding from external electromagnetic hum, along with internal shock mounting, external windscreens and adjustable bass roll-off and midrange emphasis response settings provide clean, consistent reproduction.
FEATURES
• Flat, wide-range frequency response for exceptionally clean and natural reproduction of both music and speech
• Bass rolloff and mid-range emphasis (presence boost) controls with graphic display of response setting
• Improved rejection of electromagnetic hum, optimized for shielding against broadband interference emitted by computer monitors
• Internal “air suspension” shock isolation virtually eliminates mechanical noise transmission
• Highly effective pop filter eliminates need for any add-on protection against explosive breath sounds, even for close- up vocals or narration
• Now shipping with the A7WS detachable windscreen, designed to reduce plosive sounds and gives a warmer tone for close-talk vocals
• Yoke mounting with captive stand nut for easy mounting and dismounting provides precise control of microphone position
• Classic cardioid polar pattern, uniform with frequency and symmetrical about axis, to provide maximum rejection and minimum coloration of off-axis sound
• Rugged construction and excellent cartridge protection for outstanding reliability
SM7B
Cardioid Dynamic Microphone
SPECIFICATIONS
Type
Polar Pattern
Frequency Response
Electromagnetic Hum Sensitivity
(Typical, Equivalent SPL/milliOersted)
Impendance
Output Level (at 1 kHz)
Switches
Cartridge Shock Mount
Microphone Connector
Swivel Assembly
Polarity
Case
Net Weight with Cable
AVAILABLE MODELS
SM7B
Dynamic
Cardioid
50 Hz to 20 kHz
60 Hz: 11 dB 500 Hz: 24 dB 1 kHz: 33 dB
150 Ω for connection to microphone inputs rated at 19 to 300 Ω
Open Circuit Voltage: – 59.0 dB (1.12 mV)
0 dB = 1 volt per Pascal
Bass rolloff and mid-range emphasis: Slotted response selector switches
Internal air-suspension shock and vibration isolator
Three-pin professional audio (XLR)
Integrated, captive nut for ease of attachment to stand, fits 5/8 in.–27 thread.
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Dark gray enamel aluminum and steel case with dark gray foam windscreen
851,6g (1.877lbs)
