Item number: 056851
-
Product Overview
Heavy-duty lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used inch thread.
This lathe is different from the 210 series lathes on the market, this lathe AC motor torque is large, rigidity is very good, turning diameter is larger, processing range is wider! In addition, its material is also very solid, durable, and easier to maintain.

Product Parameters
Model: BK-260L
Voltage: AC110V (AC Motor)
Power: 750W(1HP)
Distance between centers: 27.56"(700mm)
Max swing diameter over bed: 10.24"(260mm)
Spindle bore: 1.06"(27mm)
Max clamping diameter of chuck: 4.33"(110mm)
Width of lathe bed: 4.92"(125mm)
Thread standard: Inch and metric screw thread
Range of Inch Threads: 8-56T.P.I
Range of metric threads: 0.2mm-3.5mm
Spindle taper: MT4
Knife rest labour: Horizontal four-station
Spindle rotation speed: 115-1620rpm
Precision of the spindle: 0.01-0.02mm
Automatic feed range: 0.1mm-0.2mm
Tail frame taper: MT2
Max turning angle of tool rest slide: ±45°
Machine assembly metal gear specifications: 30/35/65/120
Maximum stroke of tool rest plate: 2.36"(60mm)
Maximum stroke of middle plate: 5.12"(130mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)

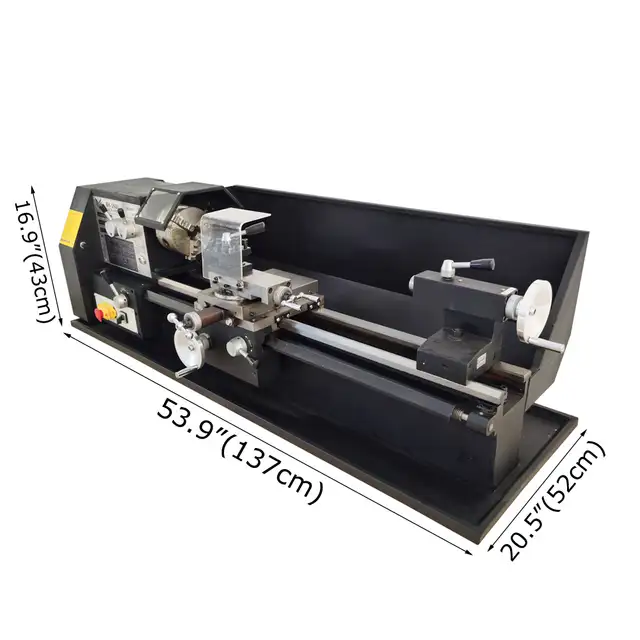

Package size: 57.5"*24.0"*24.4"(146cm*61cm*62cm)
Net weight/Gross weight: 359LB(163kg)/424LB(192.5kg)

Product Features & Advantages
4-way Tool Post
The adjustable 4-way tool post on the lathe allows you to easily
change your cutting tools. The 8 screws allow you to better grip
the tool and finish the machining efficiently.

Accurate Tailstock
Tailstock is movable and fixed, with a maximum center distance
of 27.56" at the far right.With the MT#2 taper in tailstock spindle,
this lathe is capable of adjusting set screws for accurate operation

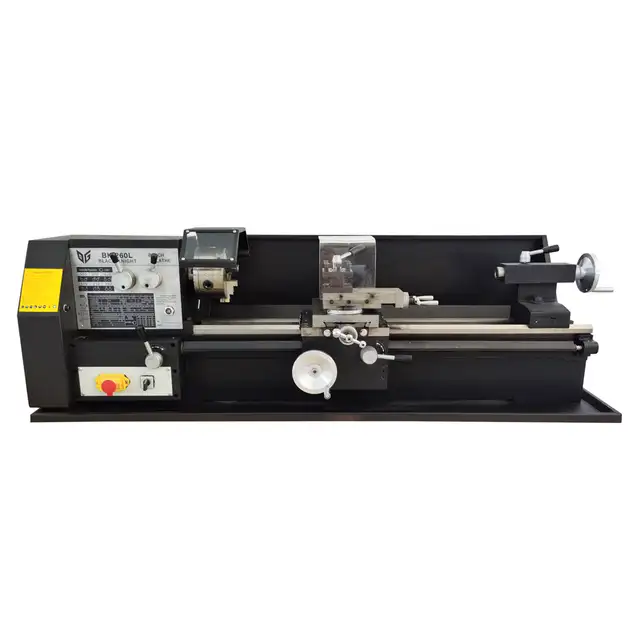

Control Panel
Control panel integrated power switch (including emergency stop
button), spindle forward/stop/reverse, screw rotation control handle(can contro screw rotation and stop) three functions, at a glance, easy to operate.

Speed Shift Handle
By controlling the two speed shift handles, you can quickly and accurately switch the spindle speed gear from 115rpm to
1620rpm, which is more precise than the brushless motor lathe,
and can meet almost all your machining needs.

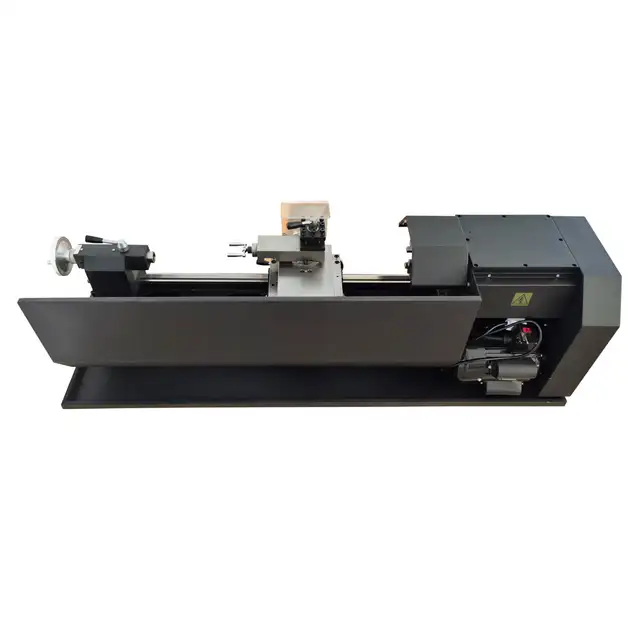

AC Motor
Specially customized pure copper core AC motor, high torque, good
durability, long running, more suitable for factory workshop
processing operations; Later maintenance is very convenient.

Wide Application
This lathe can be used for turning end face, internal and external
thread, Buddha beads, as well as drilling, chamfering, cutting and
other processing. In addition to meeting the needs of DlY
processing, this heavy-duty lathe is more suitable for factories.
schools, teaching and other places, compared to ordinary lathes more powerfu!!


- This lathe AC motor torque is large, rigidity is very good, turning diameter is larger, processing range is wider!
- The processing range is wider, metric thread range 0.2-3.5mm, inch thread range 8-56TPI, to meet your more needs! - The processing range is wider, metric thread range 0.2-3.5mm, inch thread range 8-56TPI, to meet your more needs!
- This lathe is well made, solid material, spindle box gear after quenching treatment, good rigidity; High quality bearings are used for higher accuracy.
- The bed is treated by quenching process, which greatly improves the strength, toughness and fatigue strength of the bed, thus improving the accuracy of the lathe.
- A wider range of applications, in addition to home DIY, more suitable for maintenance workshops, factory workshops, teaching and other aspects.

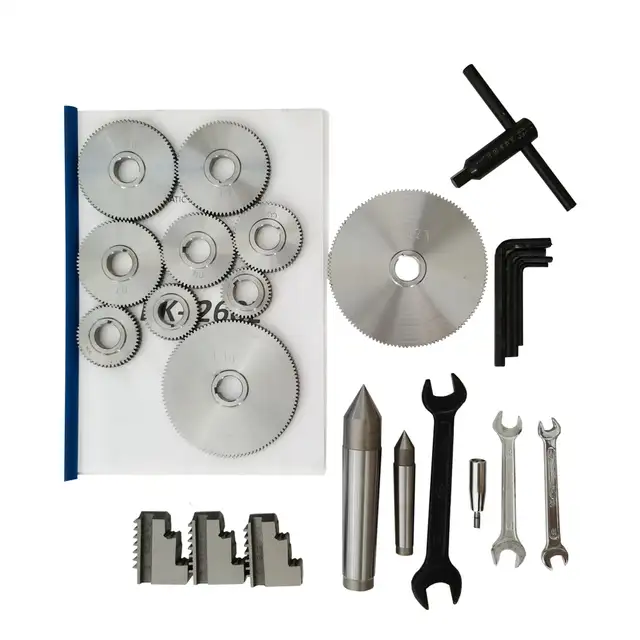

Item Included(056851)
BK260L lathe *1 Chuck jaw *3 Chuck spanner *1
Fork wrench *3 Lathe centre *2/ Hexagon wrench *4
English manual *1 Metal gear *10(40/45/50/55/60/70/75/80/110/127)
