Item number: 145013
-
Description:

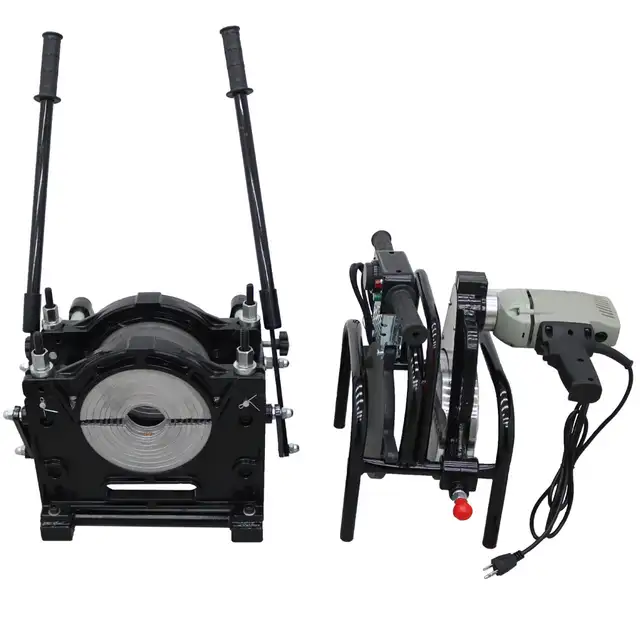

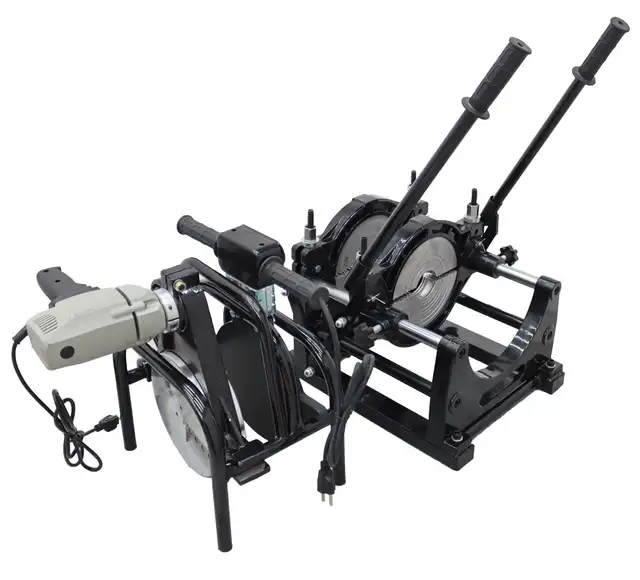

Manually operated butt fusion welding machine is suitable for PE and PB pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance.

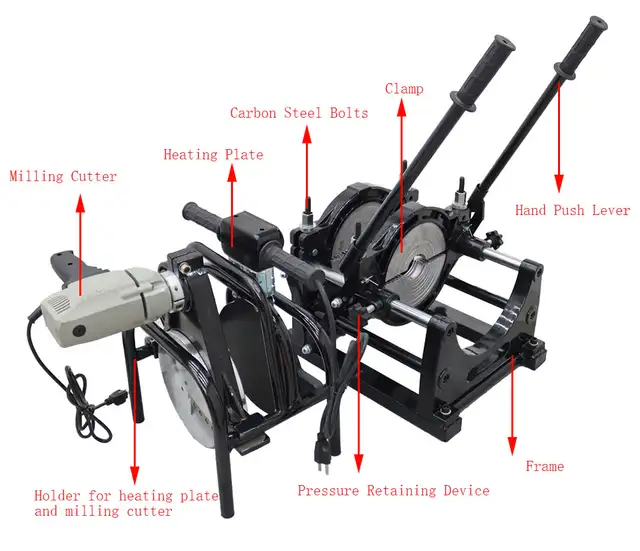

Advantage:

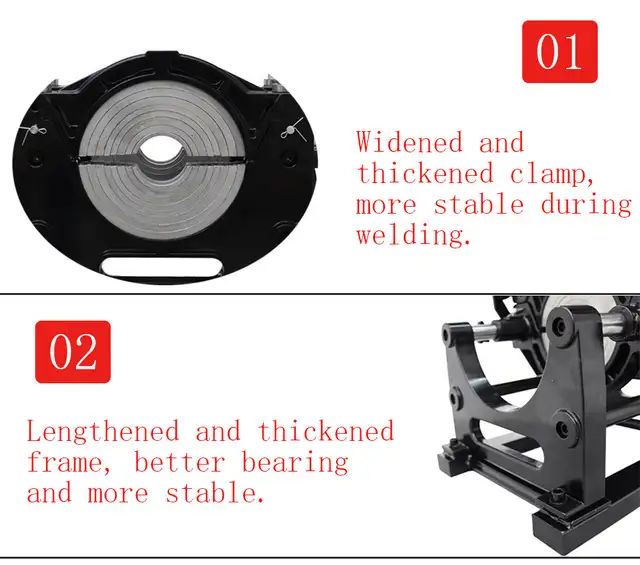

1.Widened and thickened clamp, more stable during welding.

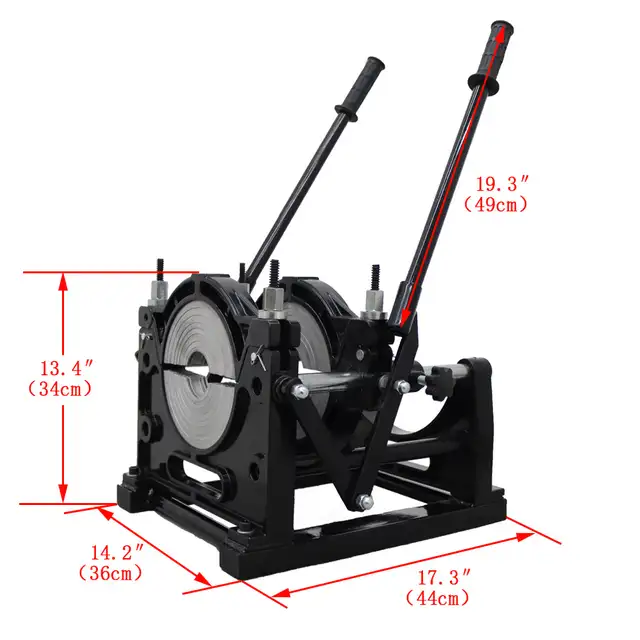

2.Lengthened and thickened frame, better bearing and more stable.

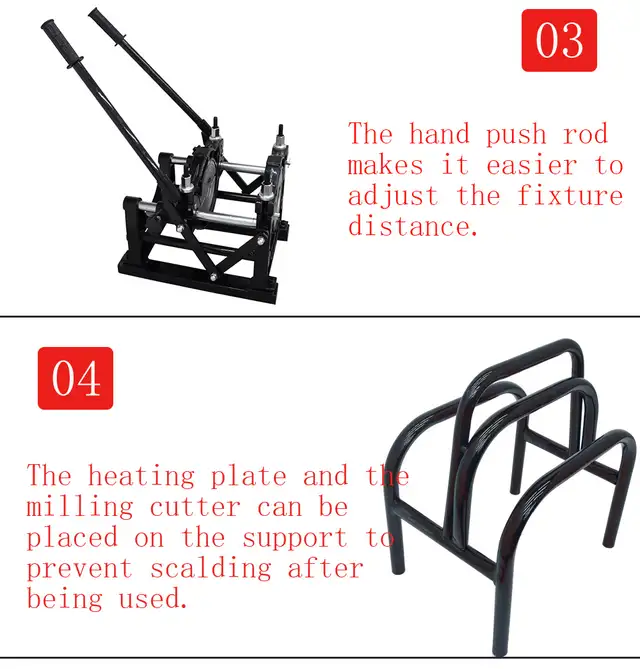

3.The hand push rod makes it easier to adjust the fixture distance.

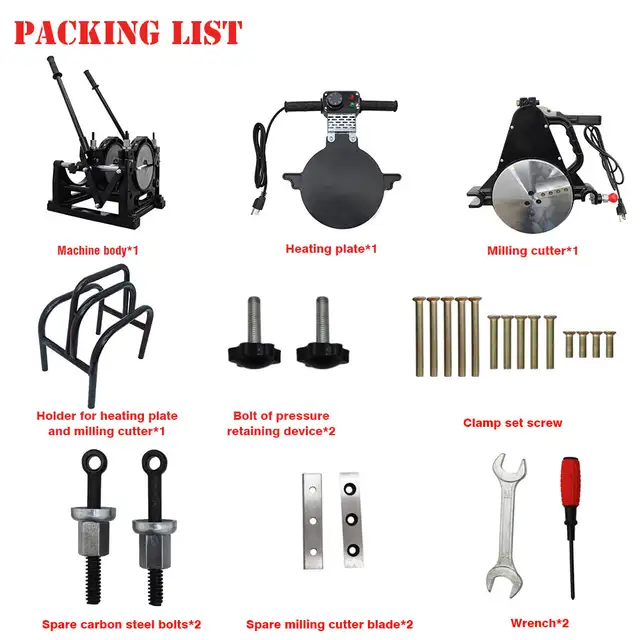

4.The support of heating plate and milling cutter is provided as a bonus. After use, the heating plate can be placed to prevent burns.

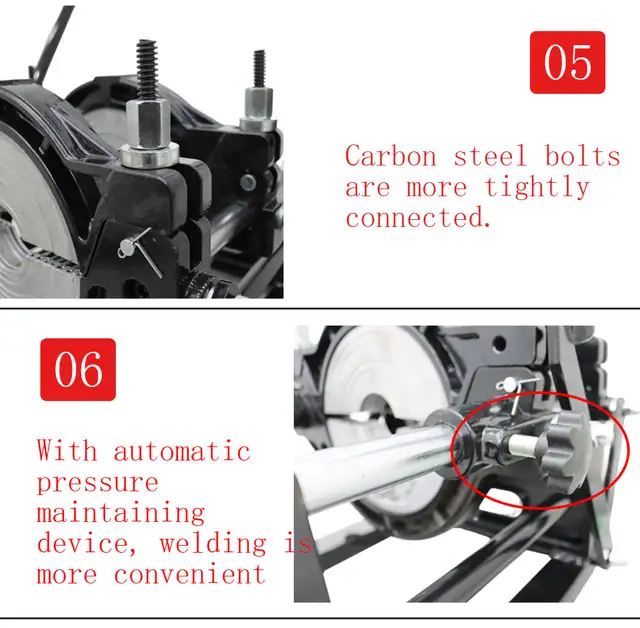

5.The machine is equipped with an automatic pressure maintaining device, welding is more convenient, and no hand
holding operation is conducted.

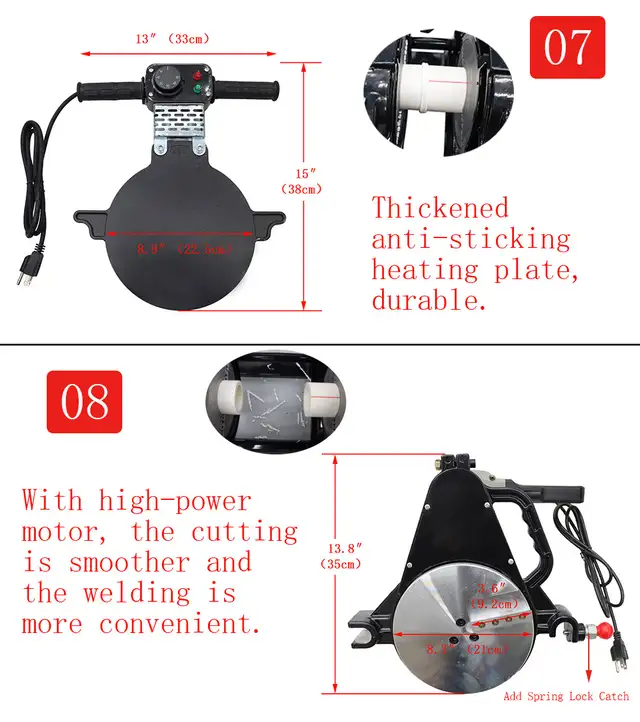

6.Milling cutter adopts high power motor, and cutting is smoother.Thickened anti-sticking heating plate, durable.

Specifications:
Model No.2.48-7.87”(63-200MM) two rings manual
Materials Aluminum alloy casting, 45# steel
Welding level(Φ, mm)
Outer dia:
63mm(2.48”)、75mm(2.95”)、90 mm (3.54”)、
110 mm (4.33”)、125 mm (4.92”)、140 mm (5.51”)、160 mm (6.30”)、180 mm (7.09”)、200mm(7.87”)
Butt joint deviation ≤0.3mm
Power of Heater 2.5KW/110V
Power of Milling Cutter 1.1KW/110V
Working temperature 300 degrees centigrade
Temperature deviation ±5 degrees centigrade
Environment temperature -5 - 40 degrees centigrade
Required time for reaching the soldering temperature <20min

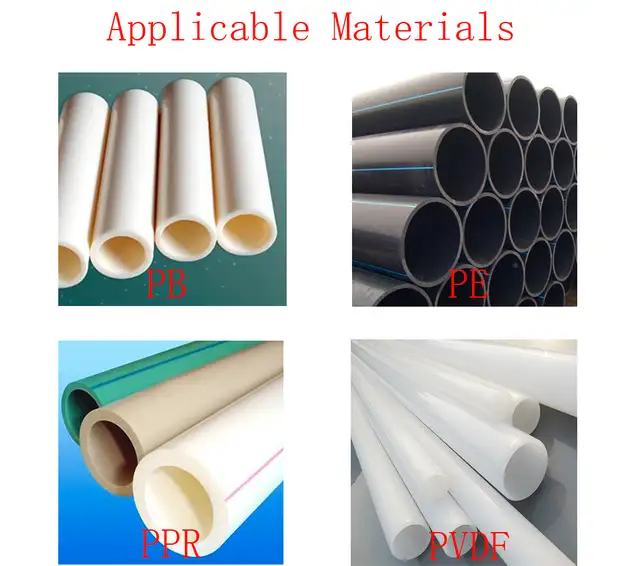

Materials can be welded PE PPR PB PVDF

Item Number: 145013
Butt Fusion Welding Machine 110V 2.48-7.87"





Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
